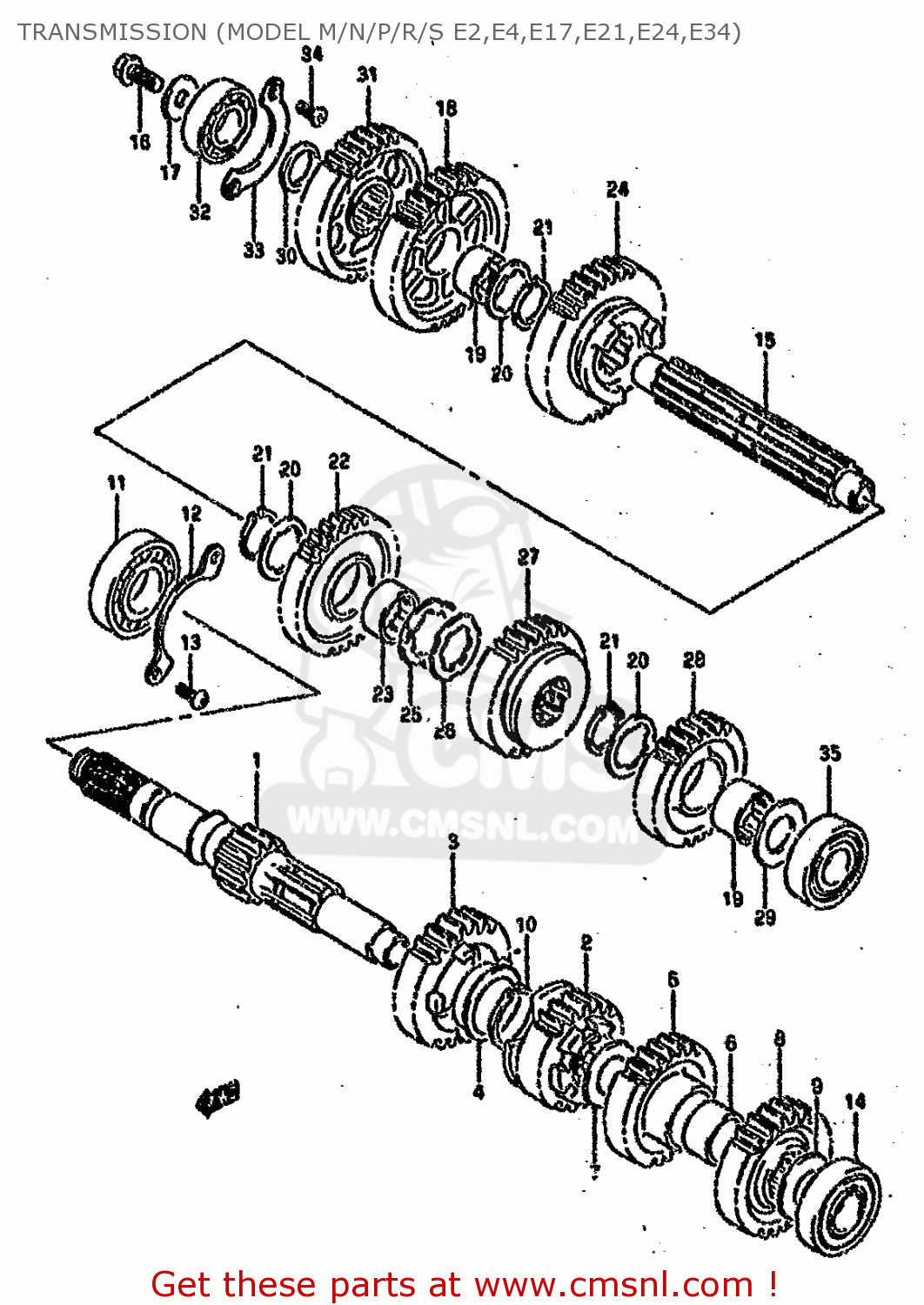

TRANSMISSION (MODEL M/N/P/R/S E2,E4,E17,E21,E24,E34)

ref

part #

description

quantity

1

2412038B10
ref: 1

SHAFT,COUNTER

€ 204.00

2

2422138B10
ref: 2

GEAR,SECOND DRIVE

€ 160.50

3

2423138B10
ref: 3

GEAR,THIRD DRIVE

€ 129.50

4

0930128001
ref: 4

BUSH(28X32X2)

€ 19.50

5

2424138B10
ref: 5

GEAR,FOURTH DRIVE

€ 140.50

6

2424238B10
ref: 6

BUSH,4TH DRIVE GEAR

€ 27.50

7

0821122321
ref: 7

WASHER

€ 3.00

8

2425138B10
ref: 8

GEAR,FIFTH DRIVE

€ 125.00

9

0821120321
ref: 9

WASHER,THRUST

€ 3.00

10

0833131286
ref: 10

CIRCLIP

€ 2.50

11

0926225080
ref: 11

BEARING(25X62X17)

€ 21.50

12

2474138A00
ref: 12

RETAINER,CNTR SHAFT BEARING

€ 4.00

13-1

0211206126
ref: 13-1
MODEL M/N/P/R

SCREW

€ 1.50

13-2

0211206123
ref: 13-2
MODEL S

SCREW

€ 1.50

14

0926220080
ref: 14

BEARING(20X52X15)

€ 21.50

15

2413138B10
ref: 15

SHAFT,DRIVE

€ 245.00

16

0910310112
ref: 16

BOLT(10X24)

€ 4.00

17

0821110305
ref: 17

WASHER

€ 3.00

18

2431138B00
ref: 18

GEAR,FIRST DRIVEN

€ 169.50

19

2433224A00
ref: 19

BUSH

€ 18.00

20

0916728001
ref: 20

WASHER,LOCK

€ 3.00

21

0833131286
ref: 21

CIRCLIP

€ 2.50

22

2432138B10
ref: 22

GEAR,SECOND DRIVEN

€ 188.50

23

2433249000
ref: 23

BUSH,3RD DRIVEN GEAR

€ 13.50

24

2433138B10
ref: 24

GEAR,THIRD DRIVEN

€ 177.50

25

0916928001
ref: 25

WASHER

€ 3.00

26

0916728002
ref: 26

WASHER,LOCK

€ 3.00

27

2434138B10
ref: 27

GEAR,FOURTH DRIVEN

€ 181.00

28

2435138B10
ref: 28

GEAR,FIFTH DRIVEN

€ 110.50

29

0821120382
ref: 29

WASHER

€ 3.00

30

0916022032
ref: 30

WASHER(22X32X3)

€ 4.00

31

2462138B00
ref: 31
NT:34

GEAR,OVER DRIVING DRIVE(NT:34)

€ 183.50

32

0926222025
ref: 32
09262-22012

BEARING(22X56X16)

€ 63.50

33

2474138401
ref: 33

RETAINER,CNTR SHAFT BEARING

€ 5.50

34-1

0212206128
ref: 34-1
MODEL M/N/P/R

SCREW

€ 3.00

34-2

0212206123
ref: 34-2
MODEL S

SCREW

€ 3.00

35

0926220080
ref: 35

BEARING(20X52X15)

€ 21.50
