CYLINDER

VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

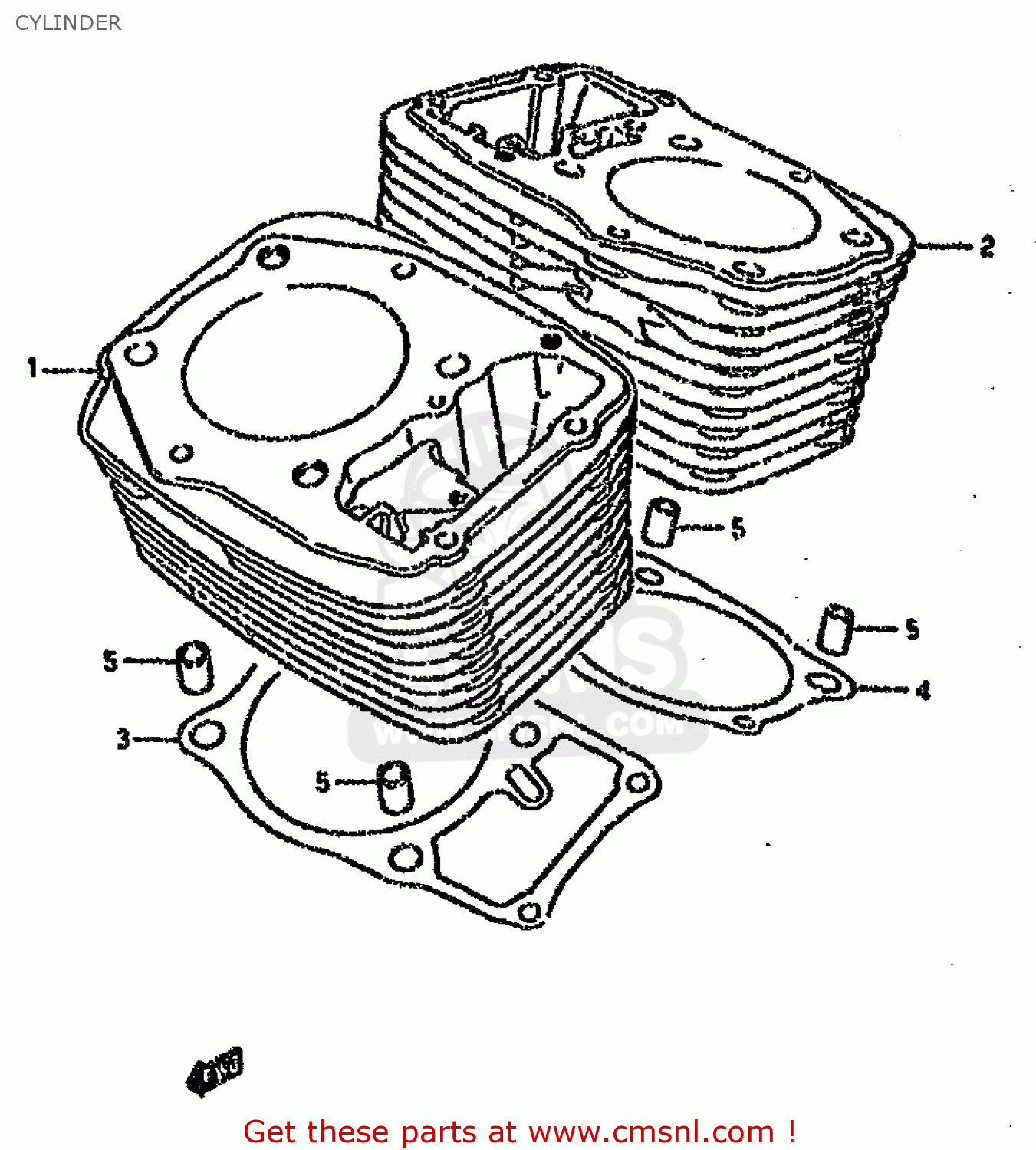

Cylinder diagram VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

prices are in EUR

ref

part #

description

quantity

1-1

1121038B01
ref: 1-1
MODEL H/J/K/L/M/N/P

CYLINDER

€ 666.50

1-2

1121038B02
ref: 1-2
MODEL R/S

CYLINDER,FRONT

€ 666.50

2-1

1122038B01
ref: 2-1
MODEL H/J/K/L/M/N/P

CYLINDER

€ 563.50

2-2

1122038B02
ref: 2-2
MODEL R/S

CYLINDER,REAR

€ 563.50

1124138B00H17
ref: 3

GASKET,CYLINDER FR (NAS)

€ 26.00

1124238B00H17
ref: 4

GASKET,CYLINDER RR (NAS)

€ 23.50

5-1

0920613001
ref: 5-1
MODEL H/J/K/L/M/N/P

PIN

€ 2.50

5-2

0421113189
ref: 5-2
MODEL R/S

PIN

€ 2.50
