STARTER CLUTCH

VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

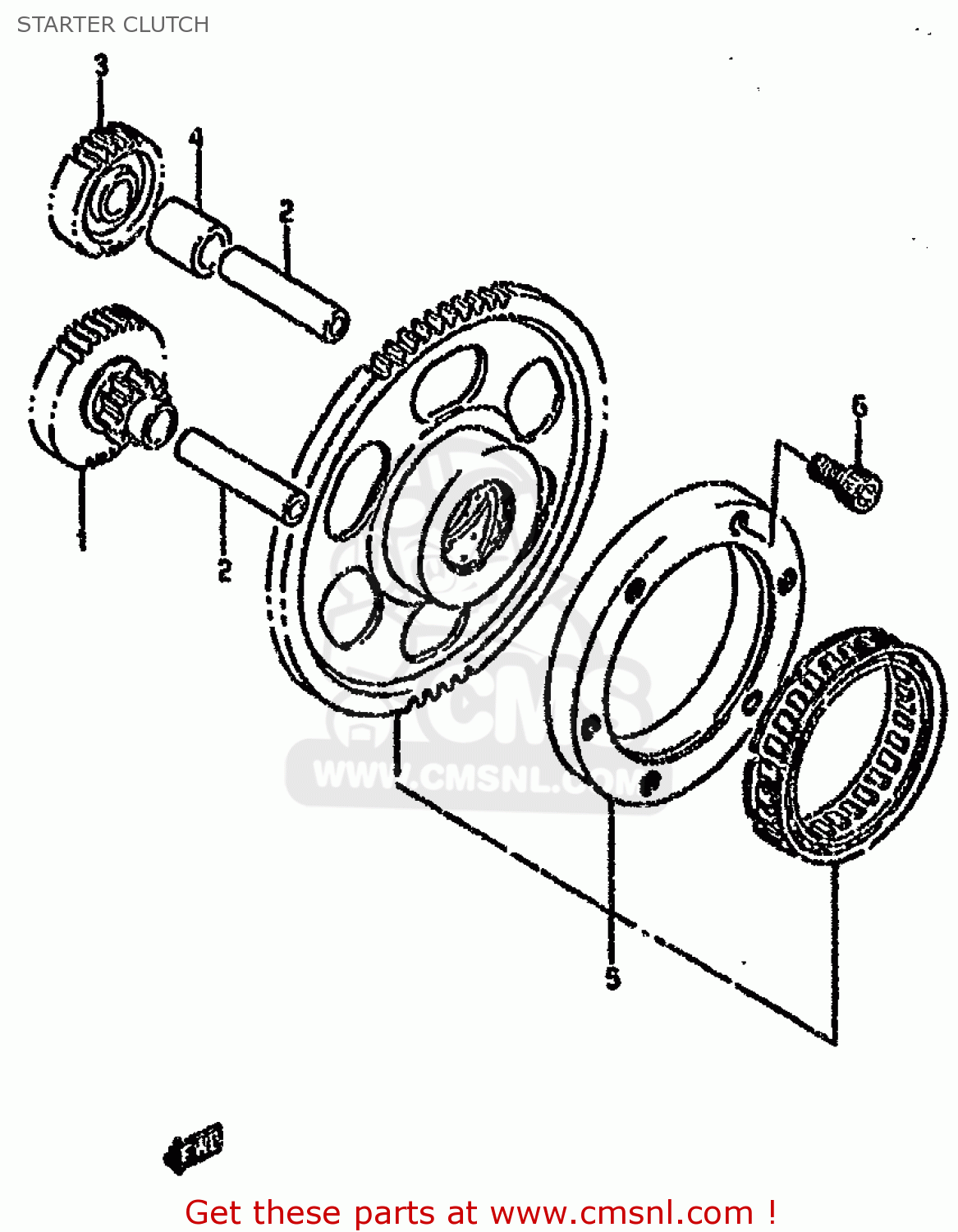

Starter clutch diagram VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

prices are in EUR

ref

part #

description

quantity

1261138B01
ref: 1

GEAR,STARTER IDLE NO.1

€ 84.00

0920611015
ref: 2

PIN(7X11X55)

€ 9.00

1261238B02
ref: 3

GEAR,STARTER IDLE NO.2

€ 57.50

0918011005
ref: 4

SPACER(11.2X17.5X22)

€ 7.50

1260038840
ref: 5

CLUTCH SET,STARTER

€ 363.00

6-1

0910608043
ref: 6-1
MODEL H/J/K/L/M/N/P/

BOLT

€ 3.00

6-2

0713008163
ref: 6-2
MODEL S

BOLT

€ 3.00
