FRONT MASTER CYLINDER (MODEL K/L/M/N/P/R/S)

VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

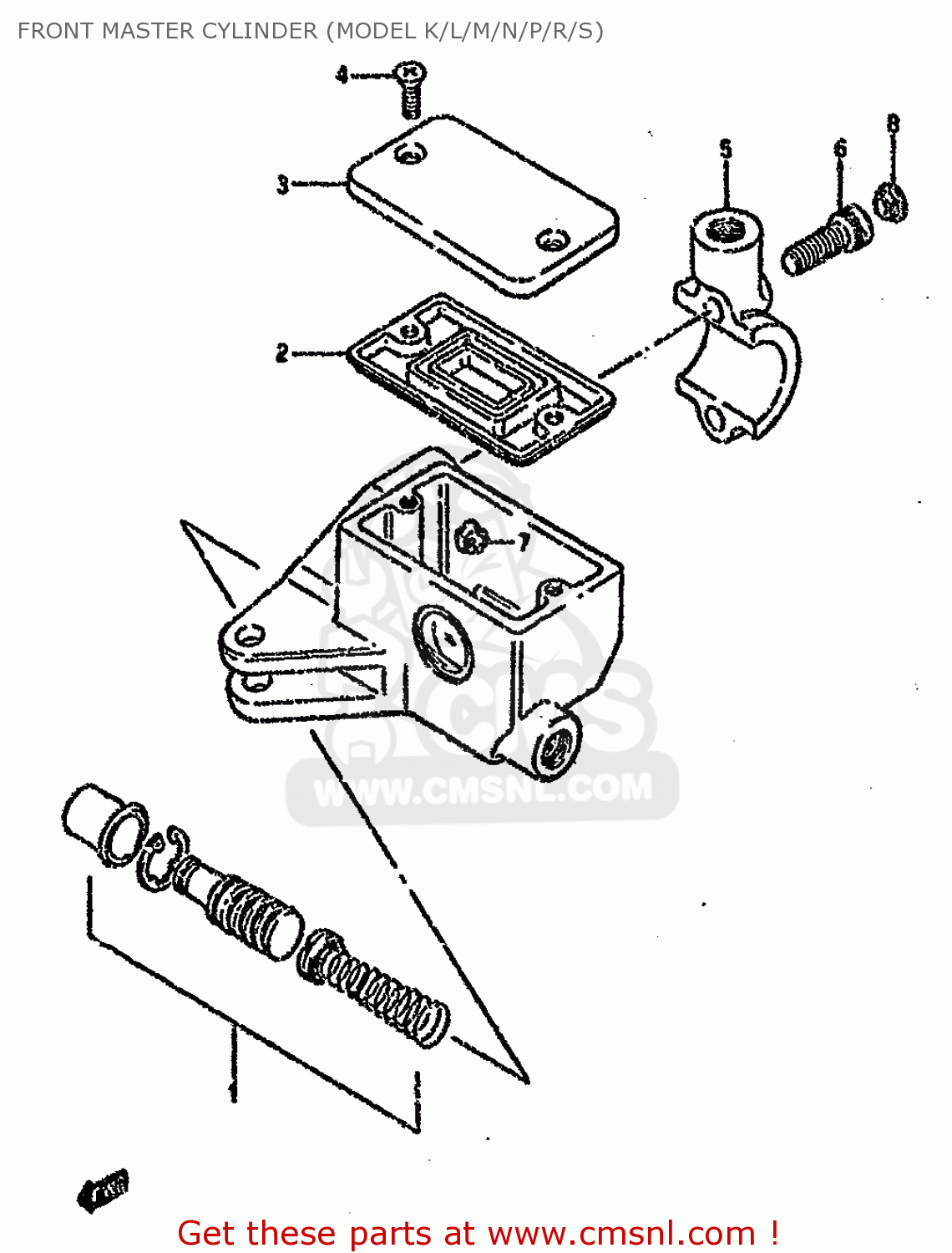

Front master cylinder (model k/l/m/n/p/r/s) diagram VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

prices are in EUR

ref

part #

description

quantity

5960038B20
ref: 0
MICRO SWITCH TYPEVS1

CYLINDER ASSEMBLY,FRONT MASTER

€ 246.50

5960038B30
ref: 0
MICRO SWITCH TYPEMOD

CYLINDER ASSY,FR MASTER

€ 280.50

5960036820
ref: 1

CUP SET,MASTER CYLINDER

€ 37.50

5966749460
ref: 2

5966749460

5966938B10
ref: 3

CAP

€ 67.50

0212204123
ref: 4

SCREW

€ 2.00

5967138A00
ref: 5

HOLDER

€ 37.50

0713006207
ref: 6

BOLT

€ 3.50

5966448B00
ref: 7

PROTECTOR

€ 8.00

0925005008
ref: 8

CAP(OD:10)

€ 5.00
