STARTING MOTOR

VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

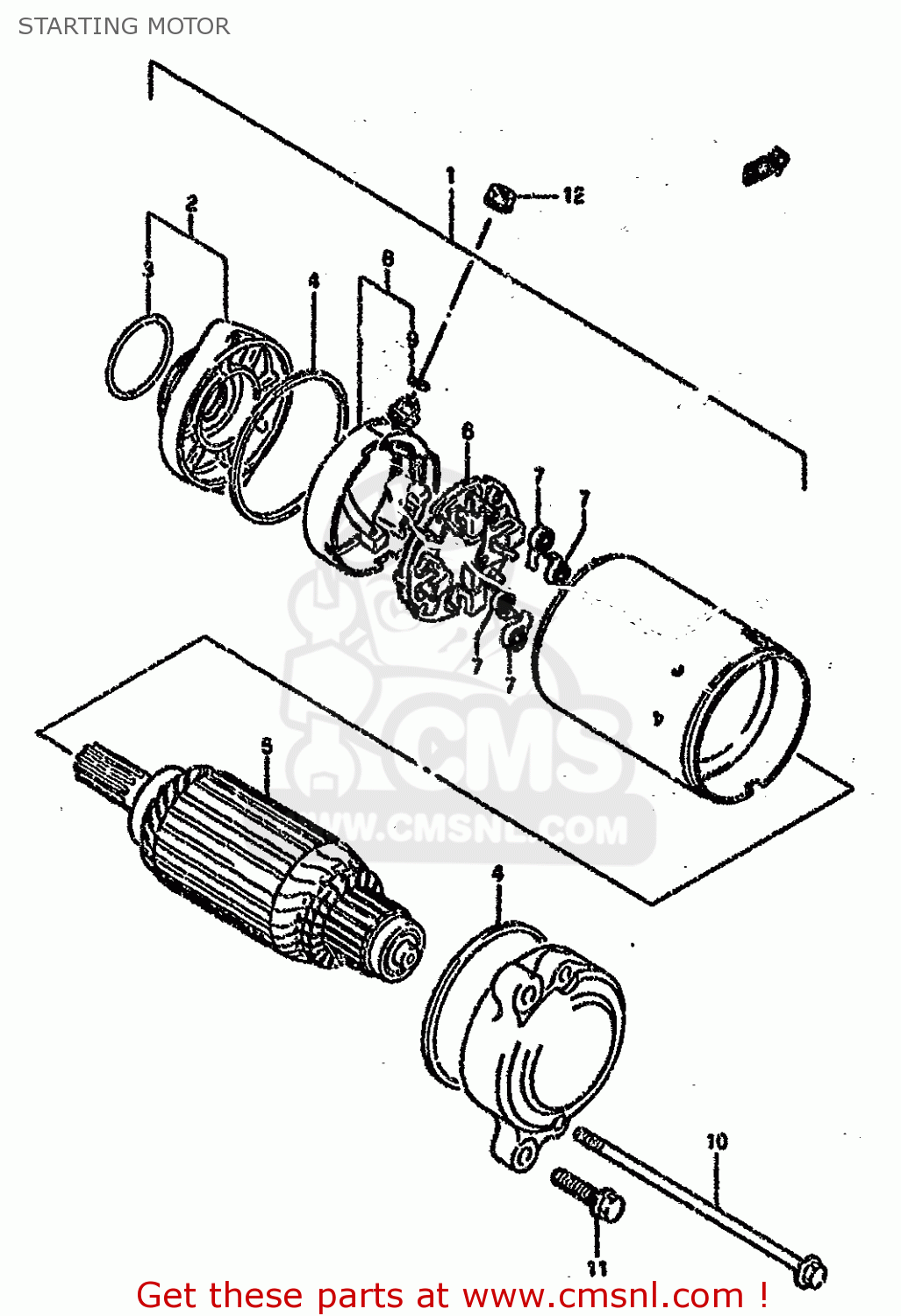

Starting motor diagram VS1400GLP 1995 (S) (E02 E04 E22 E24 E34 E37)

prices are in EUR

ref

part #

description

quantity

3110038B01
ref: 1

MOTOR ASSEMBLY,STARTING

€ 973.50

3115038B00
ref: 2

BRACKET SET

€ 114.50

3115638B00
ref: 3

O-RING

€ 9.50

3126431300
ref: 4

O RING

€ 7.50

3131038B01
ref: 5

ARMATURE

€ 278.50

3113238B00
ref: 6

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 7

SPRING,BRUSH

€ 3.50

3113038B00
ref: 8

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 9

O RING

€ 3.00

3128124B10
ref: 10
31281-38B00

BOLT

€ 5.00

0154706257
ref: 11

BOLT

€ 2.50

0836135066
ref: 12

NUT

€ 2.00
