FOOTREST
VS1400GLP INTRUDER 1998 (W) USA (E03)

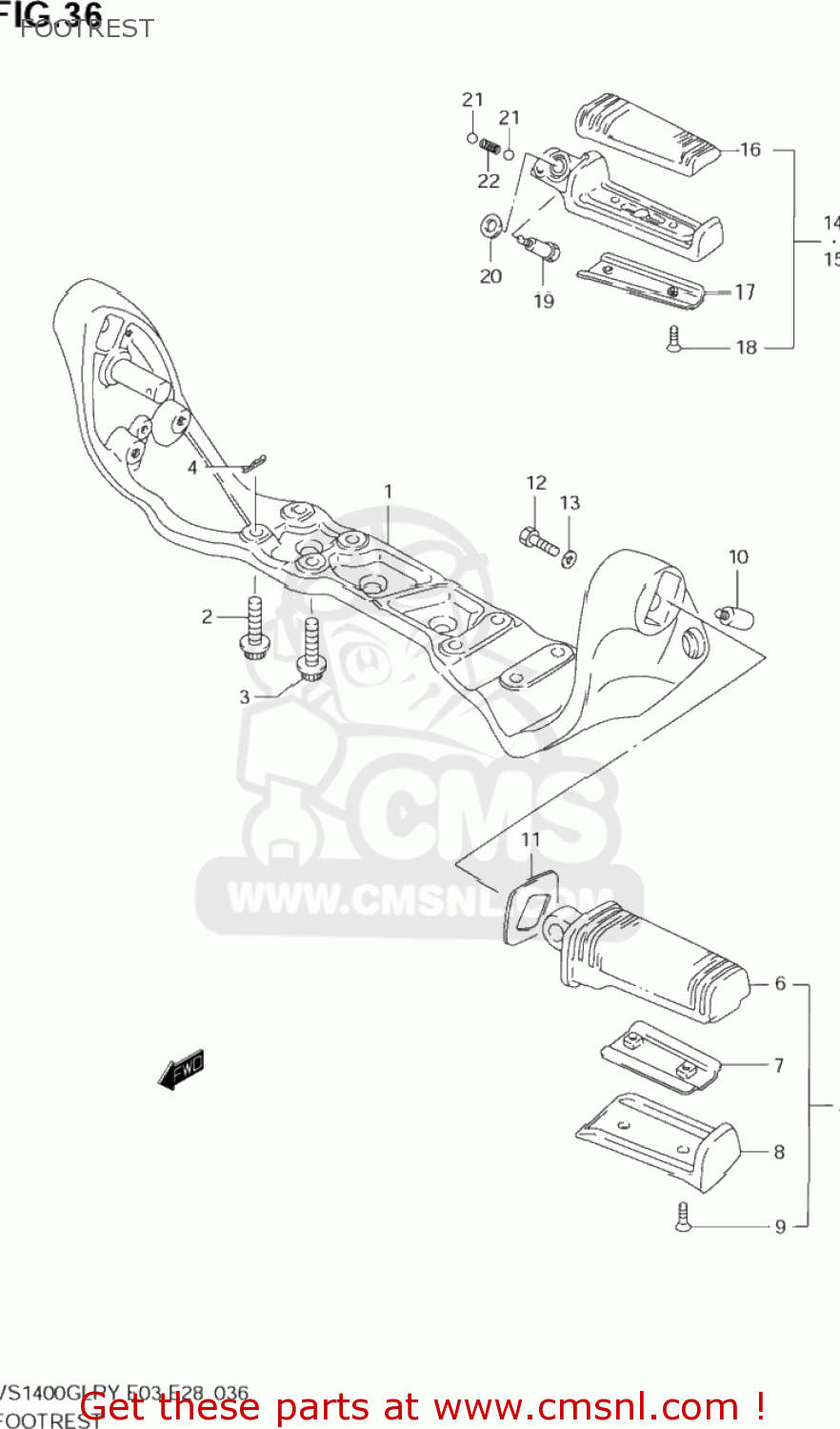

Footrest diagram VS1400GLP INTRUDER 1998 (W) USA (E03)
FOOTREST VS1400GLP INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351039B00
ref: 1-1
43510-39B20
BRACKET,FRONT FOOTREST
€ 769.00
1-2
4351039B10
ref: 1-2
43510-39B20
BRACKET COMP,FRONT FOOTREST
€ 769.00
1-3
4351039B20
ref: 1-3
BRACKET,FR FOOTREST
€ 769.00
2
0910608064
ref: 2
BOLT(8X25)
€ 4.50
3
0712008203
ref: 3
07120-0820A
BOLT
€ 3.00
4
0938508005
ref: 4
SNAP
€ 2.00
5-1
4350138B11
ref: 5-1
FOOTREST ASSY,FR,R
€ 97.00
5-2
4350238B11
ref: 5-2
FOOTREST ASSY,FR,L
€ 97.00
6
4355138B00
ref: 6
RUBBER,FR FOOTREST
€ 12.50
7
4358038B10
ref: 7
PLATE,RUBBER STOPPER
€ 8.50
8
4358538B11
ref: 8
COVER,FR FOOTREST
€ 45.50
9
0912705018
ref: 9
SCREW(5X20)
€ 2.50
10-1
4364138B00
ref: 10-1
09106-06101
BOLT,FRONT FOOTREST
€ 4.50
10-2
0910606101
ref: 10-2
BOLT(6X8)
€ 4.50
11
4354638B01
ref: 11
WASHER,FR FOOTREST
€ 5.00
12-1
0713005123
ref: 12-1
07130-0512B
BOLT
€ 2.50
12-2
0211235123
ref: 12-2
02112-3512A
SCREW
€ 1.50
13
0832101053
ref: 13
08321-0105A
LOCK,WASHER
€ 3.00
14-1
4360038A01
ref: 14-1
FOOTREST ASSY RH
€ 39.50
14-2
4360038E00
ref: 14-2
FOOTREST ASSY,PILLION,R
€ 55.00
15-1
4370038A01
ref: 15-1
FOOTREST ASSY PILLION LH
€ 35.50
15-2
4370038E00
ref: 15-2
FOOTREST ASSY,PILLION,L
€ 55.00
16
4361238A00
ref: 16
RUBBER,PILLION FOOTREST
€ 12.00
17
4363238A00
ref: 17
PLATE,RUBBER STOPPER
€ 4.00
18
0912705017
ref: 18
SCREW(5X16)
€ 2.00
19
0911106050
ref: 19
BOLT(6X34.5)
€ 5.00
20
0822108164
ref: 20
SHIM
€ 1.50
21
0611107004
ref: 21
BALL
€ 1.50
22-1
0944005031
ref: 22-1
SPRING
€ 1.50
22-2
0944005005
ref: 22-2
SPRING
€ 1.50
