FUEL TANK (MODEL X)

VS1400GLP INTRUDER 1998 (W) USA (E03)

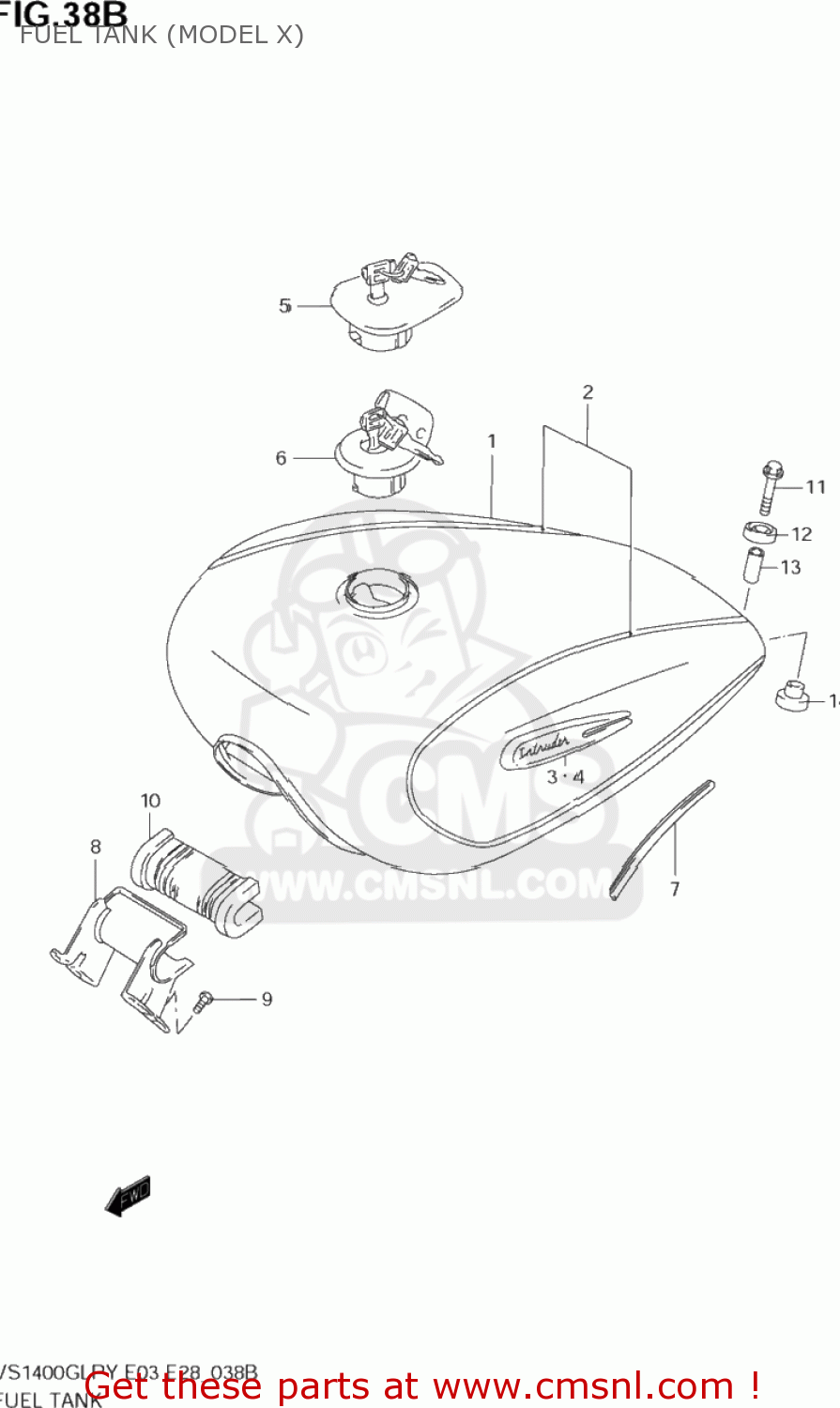

Fuel tank (model x) diagram VS1400GLP INTRUDER 1998 (W) USA (E03)

FUEL TANK (MODEL X) VS1400GLP INTRUDER 1998 (W) USA (E03)

FUEL TANK (MODEL X) VS1400GLP INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4910038B00E88
ref: 1-1
49100-38B10-E88

TANK ASSEMBLY,FUEL

€ 768.00

1-2

4910038B00G2P
ref: 1-2
49100-38B10-G2P

TANK ASSEMBLY,FUEL

€ 473.00

1-3

4910038B20E88
ref: 1-3
44110-38B13-YD8

TANK ASSEMBLY,FUEL

€ 432.50

1-4

4910038B20G2P
ref: 1-4
44110-38B13-YD8

TANK ASSEMBLY,FUEL

€ 432.50

2-1

6811038B60L3U
ref: 2-1

TAPE SET,FUEL TANK STRIPE

€ 148.00

2-2

6811038B60J5S
ref: 2-2

TAPE SET,FUEL TANK STRIPE

€ 127.50

3

6811138B00
ref: 3

EMBLEM,FUEL TANK,R

€ 51.50

4

6812138B00
ref: 4

EMBLEM,FUEL TANK,L

€ 51.50

5-1

4420038820
ref: 5-1

CAP SET,FUEL TANK

€ 107.50

5-2

4420038860
ref: 5-2

CAP SET,FUEL TANK

€ 135.50

5-3

4420038870
ref: 5-3

ENGRAVED GAS CAP SET,G

€ 136.50

6

4420024820
ref: 6

CAP SET,FUEL TANK

€ 150.50

7

6824104X5000B
ref: 7

MOLDING

€ 23.00

8

4425038B0013Z
ref: 8
44250-38B00-019

BRACKET,TANK

€ 32.00

9

0211276163
ref: 9
02112-7616A

SCREW

€ 2.00

10

4451138B01
ref: 10

CUSHION,FUEL TANK FR

€ 12.00

11

0155006353
ref: 11
01550-0635A

BOLT

€ 2.50

12

0932014013
ref: 12

CUSHION

€ 3.00

13

0918006274
ref: 13

SPACER(6.5X9X22.5)

€ 4.50

14

0932010020
ref: 14

CUSHION

€ 4.00
