REAR SWINGING ARM (MODEL T/V/W/X/Y)

VS1400GLP INTRUDER 1998 (W) USA (E03)

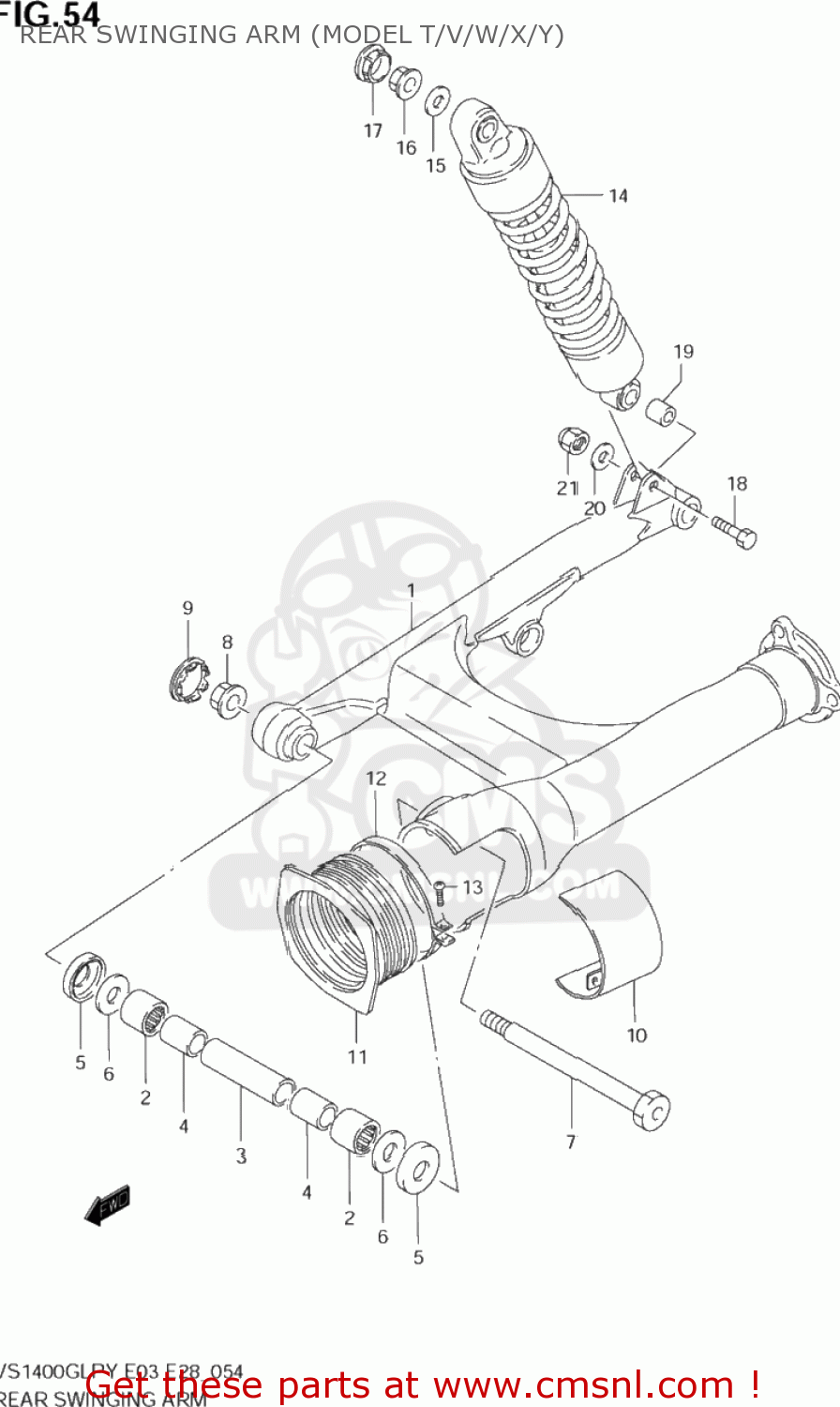

Rear swinging arm (model t/v/w/x/y) diagram VS1400GLP INTRUDER 1998 (W) USA (E03)

REAR SWINGING ARM (MODEL T/V/W/X/Y) VS1400GLP INTRUDER 1998 (W) USA (E03)
REAR SWINGING ARM (MODEL T/V/W/X/Y) VS1400GLP INTRUDER 1998 (W) USA (E03)
REAR SWINGING ARM (MODEL T/V/W/X/Y) VS1400GLP INTRUDER 1998 (W) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
6110038B0133J
ref: 1-1
SWINGINGARM,RR
€ 597.50
1-2
6110038B011ZV
ref: 1-2
SWING ARM,REAR (GREEN)
€ 597.50
1-3
6110038B01Y0N
ref: 1-3
SWING ARM COMP,REAR
€ 526.00
1-4
6110038B0120F
ref: 1-4
SWINGINGARM,RR
€ 592.00
1-5
6110038B0133J
ref: 1-5
SWINGINGARM,RR
€ 597.50
1-5
6110038B0133J
ref: 1-5
SWINGINGARM,RR
€ 597.50
1-5
6110038B0133J
ref: 1-5
SWINGINGARM,RR
€ 597.50
1-6
6110038B0122U
ref: 1-6
SWINGINGARM,RR
€ 616.50
1-7
6110038B01Y7G
ref: 1-7
SWINGINGARM,RR
€ 650.50
2
0926322017
ref: 2
BEARING(22X29X30)
0926322017
€ 18.50
3
6128238B00
ref: 3
SPACER,RR SWGARM PIVOT CTR
6128238B00
€ 10.00
4
6125138B00
ref: 4
SPACER,RR SWGARM PIVOT
6125138B00
€ 14.00
5
6126214A00
ref: 5
SEAL,RR SWGARM PIVOT DUST
6126214A00
€ 7.50
6
0821116341
ref: 6
WASHER
0821116341
€ 2.00
7
6121138B00
ref: 7
SHAFT,RR SWINGINGARM PIVOT
6121138B00
€ 38.50
8
0831931148
ref: 8
08319-3114A
NUT
0831931148
€ 9.00
9
6122238A01
ref: 9
CAP,RR SWINGING ARM PIVOT,R
6122238A01
€ 6.50
10-1
6123038B0033J
ref: 10-1
COVER,RR SWGARM PIVOT,L
6123038B0033J
€ 65.00
10-2
6123038B001ZV
ref: 10-2
COVER,REAR SWING ARM PIVOT
€ 17.00
10-3
6123038B00Y0N
ref: 10-3
COVER COMP,REAR SWING ARM PIVOT
€ 22.50
10-4
6123038B0020F
ref: 10-4
COVER,RR SWGARM PIVOT,L
6123038B0020F
€ 22.50
10-5
6123038B0033J
ref: 10-5
COVER,RR SWGARM PIVOT,L
6123038B0033J
€ 65.00
10-5
6123038B0033J
ref: 10-5
COVER,RR SWGARM PIVOT,L
6123038B0033J
€ 65.00
10-5
6123038B0033J
ref: 10-5
COVER,RR SWGARM PIVOT,L
6123038B0033J
€ 65.00
10-6
6123038B0022U
ref: 10-6
COVER,RR SWGARM PIVOT,L
€ 23.50
10-7
6123038B00Y7G
ref: 10-7
COVER,REAR SWING ARM PIVOT
€ 24.00
11
6137238B00
ref: 11
BOOT,PROPELLER SHAFT
6137238B00
€ 16.50
12
0940292306
ref: 12
09402-92306-XC0
CLAMP
0940292306
€ 8.50
13
0321104253
ref: 13
03211-0425B
SCREW
0321104253
€ 2.00
14-1
6210038B01
ref: 14-1
62100-38B10
ABSORBER ASSEMBLY,REAR SHOCK
€ 436.00
14-2
6210038B10
ref: 14-2
ABSORBER ASSY,RR SHOCK
6210038B10
€ 436.00
15
0916010123
ref: 15
WASHER(10.5X20X2.3)
0916010123
€ 2.00
16
0831610103
ref: 16
08316-1010B
NUT
0831610103
€ 2.00
17
9567224A00
ref: 17
CAP,FRAME HANDLE GRIP
9567224A00
€ 5.00
18
0910010247
ref: 18
BOLT(10X39)
0910010247
€ 4.00
19
0918010139
ref: 19
SPACER(10.2X14X20.7)
0918010139
€ 6.00
20
0916010127
ref: 20
09160-10093
WASHER (10.5X24X2.3)
0916010127
€ 2.00
21
0831310107
ref: 21
NUT
0831310107
€ 2.50
