STEERING STEM (MODEL Y/K1/K2/K3)

VS1400GLP INTRUDER 1998 (W) USA (E03)

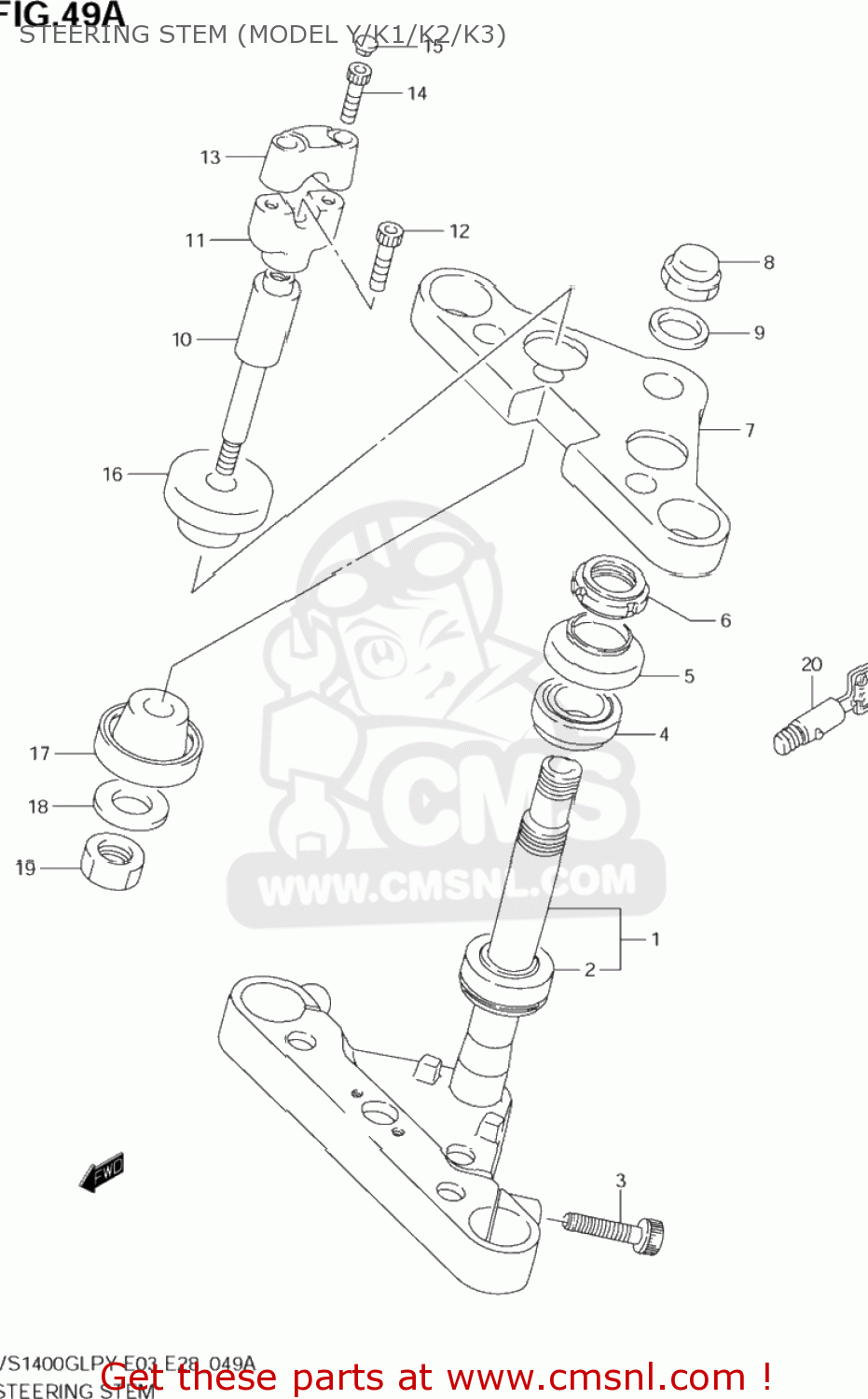

Steering stem (model y/k1/k2/k3) diagram VS1400GLP INTRUDER 1998 (W) USA (E03)

STEERING STEM (MODEL Y/K1/K2/K3) VS1400GLP INTRUDER 1998 (W) USA (E03)

STEERING STEM (MODEL Y/K1/K2/K3) VS1400GLP INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5141038B21
ref: 1

STEM,STEERING

€ 544.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0713010307
ref: 3

BOLT

€ 4.50

4

0926525019
ref: 4

BEARING(25X47X15)

€ 48.50

5

5164349002
ref: 5

SEAL,STEERING UPR DUST

€ 7.50

6

5163128000
ref: 6

NUT,STEERING STEM(25X44X10)

€ 12.50

7

5131139A10
ref: 7

BRACKET,FR FORK UPR

€ 343.50

8

5135324B00
ref: 8

NUT,CAP

€ 21.50

9

5135624B01
ref: 9

WASHER(22.5X32X1.6)

€ 3.00

10

5623138A50
ref: 10

STAY,HANDLE

€ 49.50

11

5622138A01
ref: 11

HOLDER,HANDLE LWR

€ 65.00

12

0713010257
ref: 12

BOLT

€ 3.00

13

5621138A01
ref: 13

HOLDER,HANDLE UPR

€ 45.00

14-1

0713008253
ref: 14-1
07130-0825B

BOLT

€ 3.50

14-2

0713008307
ref: 14-2

BOLT

€ 4.50

15

0925006009
ref: 15

CAP(OD:14.5)

€ 3.50

16

5624038A42
ref: 16

DAMPER,RUBBER

€ 31.50

17

5624239A12
ref: 17

CUSHION,RUBBER UNDER

€ 42.50

18

5135438A40
ref: 18

WASHER

€ 9.00

19

0915910027
ref: 19

NUT

€ 3.00

20

5190038810
ref: 20

LOCK SET,STEERING

€ 168.50
