HANDLEBAR (MODEL T/V/W/X)

VS1400GLP INTRUDER 1998 (W) USA (E03)

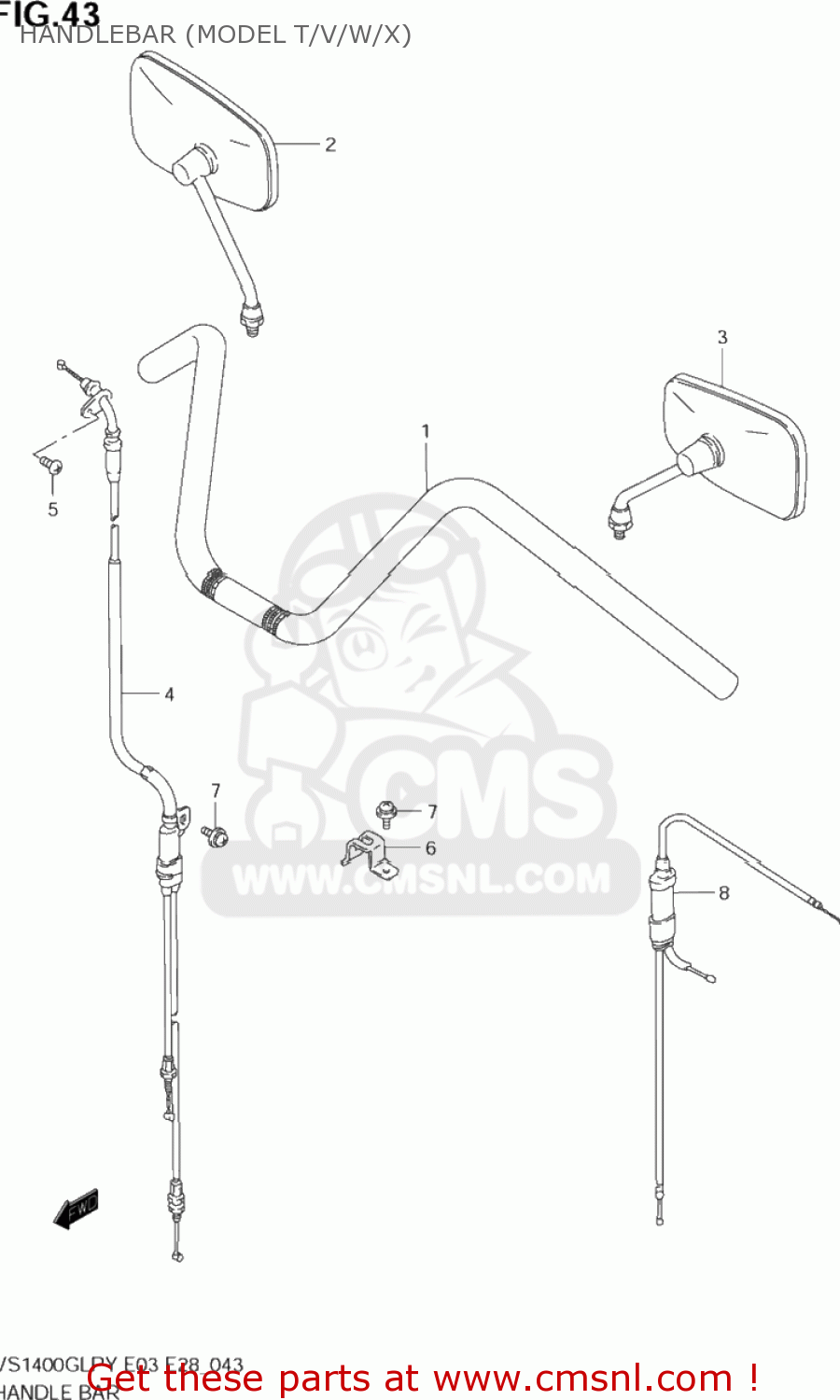

Handlebar (model t/v/w/x) diagram VS1400GLP INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

5611138B32
ref: 1

HANDLEBAR

€ 244.50

2-1

5650038B00
ref: 2-1
56500-38B01

MIRROR ASSEMBLY,REAR VIEW

€ 240.50

2-2

5650038B01
ref: 2-2

MIRROR ASSY,RR VIEW,R

€ 240.50

3-1

5660038B00
ref: 3-1
56600-38B01

MIRROR ASSEMBLY,REAR VIEW

€ 294.00

3-2

5660038B01
ref: 3-2

MIRROR ASSY,RR VIEW,L

€ 294.00

5830038B30
ref: 4

CABLE ASSY,THROTTLE

€ 93.00

0214205087
ref: 5

SCREW

€ 2.00

5862138B00
ref: 6

CLAMP,THROTTLE CABLE CONNECTOR

€ 6.00

0211275123
ref: 7
02112-7512A

SCREW

€ 2.50

5840038B01
ref: 8
58400-39B00

CABLE ASSEMBLY,STARTER

€ 34.00
