REAR FENDER (MODEL V/W/X)

VS1400GLP INTRUDER 1998 (W) USA (E03)

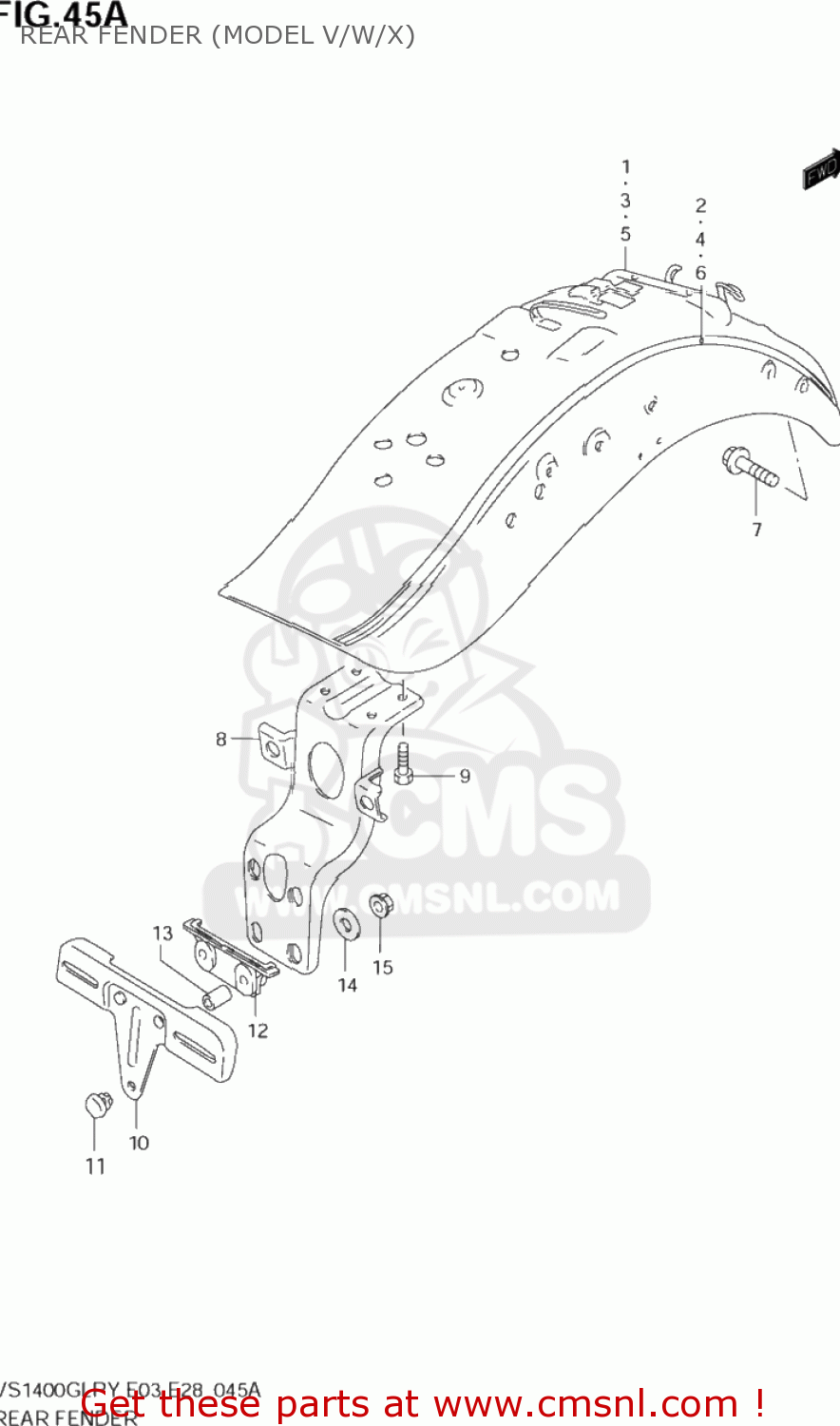

Rear fender (model v/w/x) diagram VS1400GLP INTRUDER 1998 (W) USA (E03)

REAR FENDER (MODEL V/W/X) VS1400GLP INTRUDER 1998 (W) USA (E03)

REAR FENDER (MODEL V/W/X) VS1400GLP INTRUDER 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6310038B00E6L
ref: 1-1

FENDER ASSEMBLY,REAR

€ 334.50

1-2

6310038B00G2F
ref: 1-2

FENDER ASSEMBLY,REAR

€ 0.00

1-3

6310038B00G2P
ref: 1-3

FENDER ASSY,RR

€ 403.50

2-1

6817038B01G2V
ref: 2-1

TAPE SET,REAR FENDER

€ 69.50

2-2

6817038B01G2F
ref: 2-2

TAPE SET,RR FENDER

€ 69.50

2-3

6817038B01J5S
ref: 2-3

TAPE SET,REAR FENDER S

€ 65.50

3

6310038B10G2E
ref: 3

FENDER, REAR

€ 430.50

4

6817038B11G2W
ref: 4

TAPE SET,RR FENDER

€ 69.50

5-1

6310038B00E88
ref: 5-1

FENDER ASSY,RR

€ 334.50

5-2

6310038B00G2P
ref: 5-2

FENDER ASSY,RR

€ 403.50

6-1

6817038B01L3U
ref: 6-1

TAPE SET,REAR FENDER S

€ 76.50

6-2

6817038B01J5S
ref: 6-2

TAPE SET,REAR FENDER S

€ 65.50

7

0155008203
ref: 7
01550-0820A

BOLT

€ 3.00

8

6346038B00
ref: 8

BRACKET,RR COMBINATION LAMP

€ 74.00

9

0157006123
ref: 9
01570-0612A

BOLT

€ 1.50

10

6346338B00
ref: 10
63463-38B10

PLATE,REAR LICENSE

€ 27.50

11

0932108005
ref: 11

CUSHION

€ 2.50

12

6346438B00
ref: 12

CUSHION,RR LICENSE PLATE

€ 14.50

13

0918005050
ref: 13

SPACER(5.5X8X14.3)

€ 4.00

14

0916005501
ref: 14

WASHER(5.5X20X1.2)

€ 2.00

15

0831620053
ref: 15
08316-2005A

NUT

€ 2.00
