FRAME (MODEL T)
VS1400GLP INTRUDER 1998 (W) USA (E03)

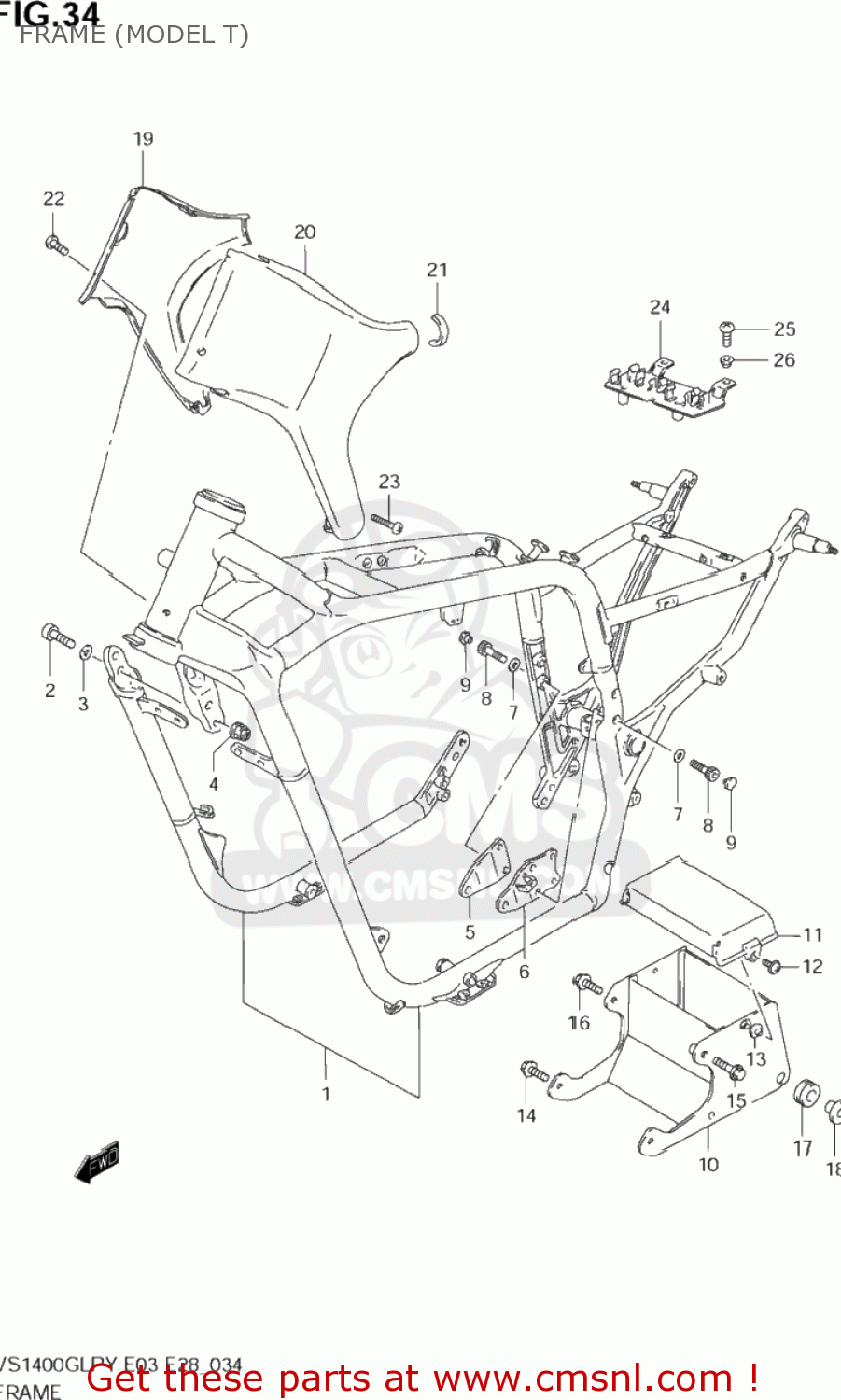

Frame (model t) diagram VS1400GLP INTRUDER 1998 (W) USA (E03)
FRAME (MODEL T) VS1400GLP INTRUDER 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
411013882233J
ref: 1-1
FRAME SET
€ 1,654.00
1-2
41101388221ZV
ref: 1-2
41101-38822-33J
FRAME SET
€ 1,654.00
2
0910610019
ref: 2
BOLT(10X33)
€ 4.00
3
0916410005
ref: 3
09164-10010
WASHER
€ 6.50
4
0831931103
ref: 4
08319-3110A
NUT
€ 3.00
5-1
4195138B0033J
ref: 5-1
PLATE,ENG MTG NO.4,R
€ 9.50
5-2
4195138B001ZV
ref: 5-2
PLATE,ENGINE MOUNTING NO
€ 9.50
6-1
4196038B0033J
ref: 6-1
PLATE,ENGINE MOUNT NO.4,L
€ 23.00
6-2
4196038B001ZV
ref: 6-2
PLATE,ENGINE MOUNT NO.4,L
€ 27.50
7
0916408015
ref: 7
WASHER
€ 3.00
8
0910608072
ref: 8
BOLT(8X32)
€ 5.00
9
0925006004
ref: 9
CAP(OD:14.5)
€ 1.50
10
4154038B00
ref: 10
41540-38B02
HOLDER COMP,BATTERY
€ 97.00
11
3365838B00
ref: 11
COVER,BATTERY
€ 12.00
12
0913805012
ref: 12
SCREW(5X12)
€ 2.50
13
0916905014
ref: 13
WASHER
€ 10.00
14
0155006163
ref: 14
01550-0616A
BOLT
€ 2.50
15
0155008203
ref: 15
01550-0820A
BOLT
€ 3.00
16
0910308222
ref: 16
BOLT(8X40)
€ 3.00
17
0932012042
ref: 17
CUSHION
€ 4.00
18
0930108009
ref: 18
BUSH
€ 6.50
19-1
4735038B0133J
ref: 19-1
COVER,FRAME HEAD,R(BLACK)
€ 137.00
19-2
4735038B011ZV
ref: 19-2
COVER,FRAME HEAD,R
€ 137.00
20-1
4736038B1133J
ref: 20-1
47360-38B11-YAY
COVER,FRM.HD.,
€ 119.00
20-2
4736038B111ZV
ref: 20-2
COVER COMP,FRAME HEAD
€ 119.00
21
4735938B00
ref: 21
PROTECTOR,FRAME HEAD COVER
€ 2.00
22
0214206103
ref: 22
02142-0610A
SCREW 6X10
€ 2.00
23
0211204253
ref: 23
02112-0425B
SCREW
€ 2.00
24
4741138B02
ref: 24
HOLDER,COUPLER
€ 11.50
25
0214206163
ref: 25
02142-0616A
SCREW
€ 2.50
26
0916906010
ref: 26
WASHER
€ 3.00
