CYLINDER

VS600GL 1997 (V) (E02 E04 E17 E18)

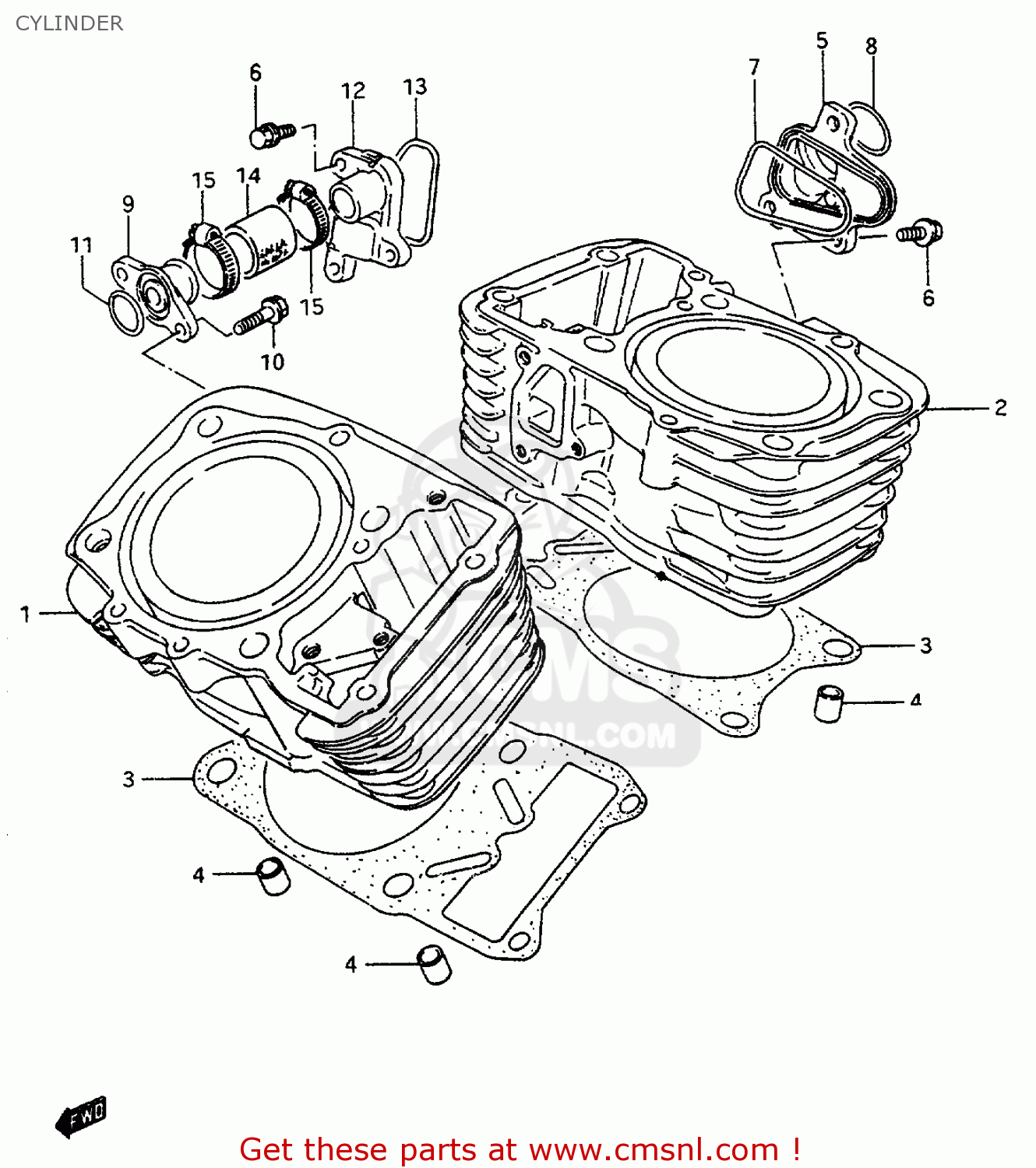

Cylinder diagram VS600GL 1997 (V) (E02 E04 E17 E18)

CYLINDER VS600GL 1997 (V) (E02 E04 E17 E18)

CYLINDER VS600GL 1997 (V) (E02 E04 E17 E18)

prices are in EUR

ref

part #

description

quantity

1

1121039E50
ref: 1

CYLINDER,FR

€ 392.50

2

1122039E50
ref: 2

CYLINDER, REAR

€ 387.00

3-1

1124145C20
ref: 3-1

GASKET,CYLINDER (NAS)

€ 16.50

3-2

1124145C10
ref: 3-2
E18

GASKET,CYLINDER

€ 21.50

4

0421113189
ref: 4

PIN

€ 2.50

5

1123745C10
ref: 5

CHAMBER,WATER,INLET

€ 28.00

6

0154706207
ref: 6

BOLT

€ 2.50

7

1124738A00
ref: 7

O RING,INLET WATER CHAMBER

€ 3.00

8

0928024007
ref: 8

O RING(D:2.3,ID:24.4)

€ 2.00

9

1123545C10
ref: 9

UNION,WATER INLET

€ 16.00

10

0154706167
ref: 10

BOLT

€ 2.00

11

0928016005
ref: 11

O RING(D:2.4,ID:15.8)

€ 1.50

12

1123645C10
ref: 12

CHAMBER,WATER OUTLET

€ 26.50

13

1124638A00
ref: 13

O RING,OUTLET WATER CHAMBER

€ 4.50

14

1785328C20
ref: 14

HOSE,RADIATOR JOINT NO.1

€ 17.50

15

0940228511
ref: 15

CLAMP

€ 8.50
