FRONT FORK (MODEL T/V)
VS600GL 1997 (V) (E02 E04 E17 E18)

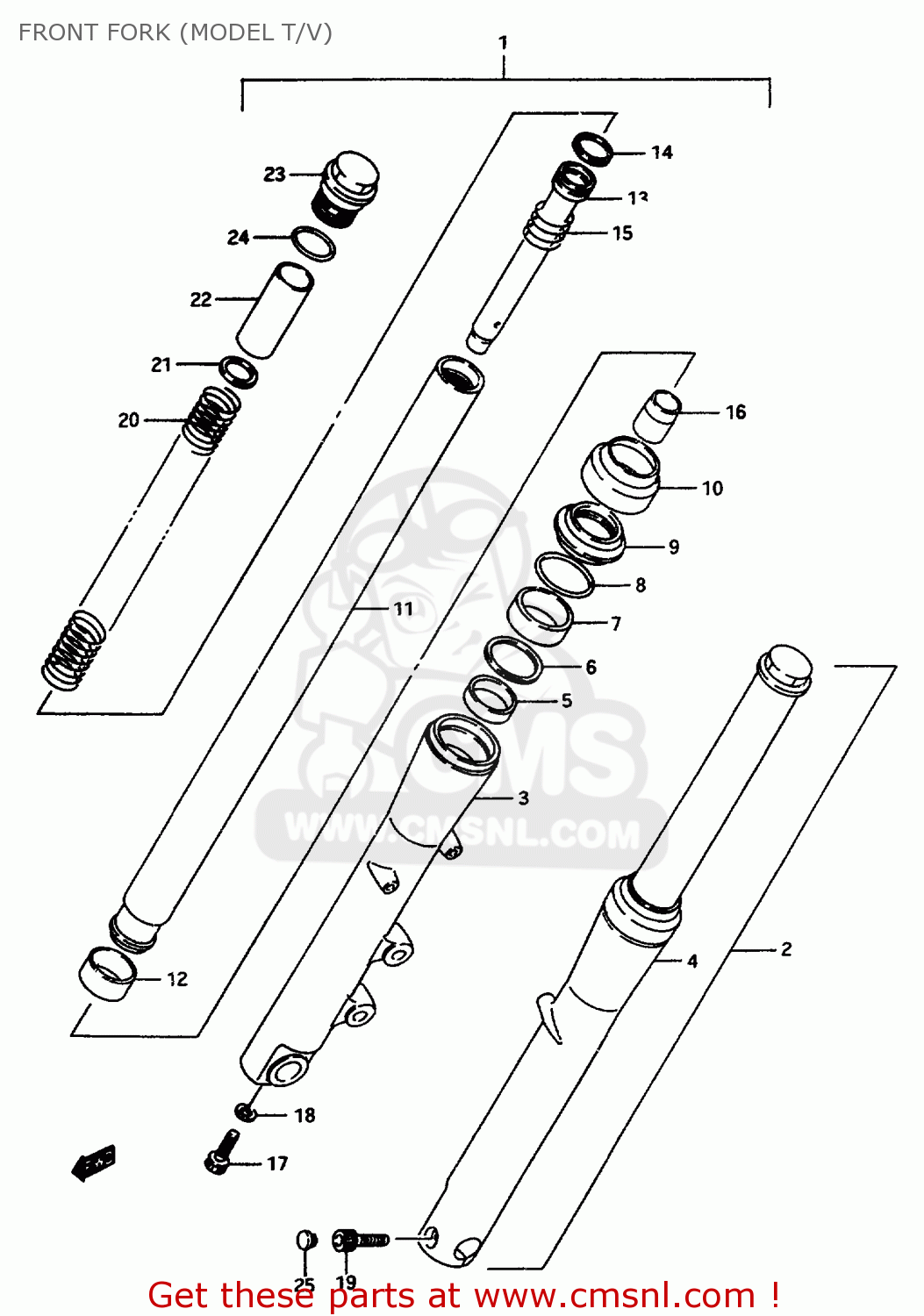

Front fork (model t/v) diagram VS600GL 1997 (V) (E02 E04 E17 E18)
FRONT FORK (MODEL T/V) VS600GL 1997 (V) (E02 E04 E17 E18)
×
prices are in EUR
ref
part #
description
quantity
1-1
5110339A41
ref: 1-1
DAMPER ASSY,FR FORK,R
€ 493.50
1-2
5110339A70
ref: 1-2
VS600GLFT/GLFV E4,E2
DAMPER ASSY,FR FORK,R
€ 721.00
2-1
5110439A41
ref: 2-1
DAMPER ASSY,FR FORK,L
€ 493.50
2-2
5110439A70
ref: 2-2
VS600CLFT/GLFV E4,E3
DAMPER ASSY,FR FORK,L
€ 721.00
3-1
5113139A00
ref: 3-1
TUBE,OUTER RH
€ 313.00
3-2
5113139A70
ref: 3-2
VS600CLFT/GLFV E4,E3
TUBE,OUTER,R
€ 323.00
4-1
5114139A00
ref: 4-1
TUBE,OUTER LH
€ 313.00
4-2
5114139A70
ref: 4-2
VS600GLFT/GLFV E4,E3
TUBE,OUTER,L
€ 323.00
5
5115239A40
ref: 5
BUSH,GUIDE
€ 24.00
6
5116839A00
ref: 6
SPACER,SEAL
€ 7.50
7
5115319D00
ref: 7
SEAL,OIL
€ 16.00
8
5115632B00
ref: 8
RING,OIL SEAL STOPPER
€ 6.50
9
5117319D00
ref: 9
SEAL,DUST
€ 17.50
10
5157238B00
ref: 10
COVER,CASE
€ 31.00
11
5111039A41
ref: 11
TUBE,INNER
€ 435.50
12
5112139A40
ref: 12
BUSH,SLIDE
€ 24.50
13
5114639A00
ref: 13
PIPE,SEAT
€ 66.00
14
5119632B00
ref: 14
RING,PISTON
€ 7.50
15
5117732B00
ref: 15
SPRING,REBOUND
€ 9.50
16
5119538B00
ref: 16
PIECE,OIL LOCK
€ 27.50
17
5114748130
ref: 17
BOLT(8X27)
€ 3.50
18
5114836011
ref: 18
GASKET (NAS)
€ 4.00
19
0713008357
ref: 19
BOLT
€ 4.50
20
5117139A00
ref: 20
SPRING
€ 73.00
21
5117232B00
ref: 21
WASHER,SPRING
€ 6.00
22
5117639A00
ref: 22
COLLAR,SPRING
€ 12.00
23
5135139A00
ref: 23
BOLT,FORK
€ 77.00
24
5111739A00
ref: 24
O RING
€ 4.00
25
0925006009
ref: 25
CAP(OD:14.5)
€ 3.50
