FRONT CALIPER
VS600GL 1997 (V) (E02 E04 E17 E18)

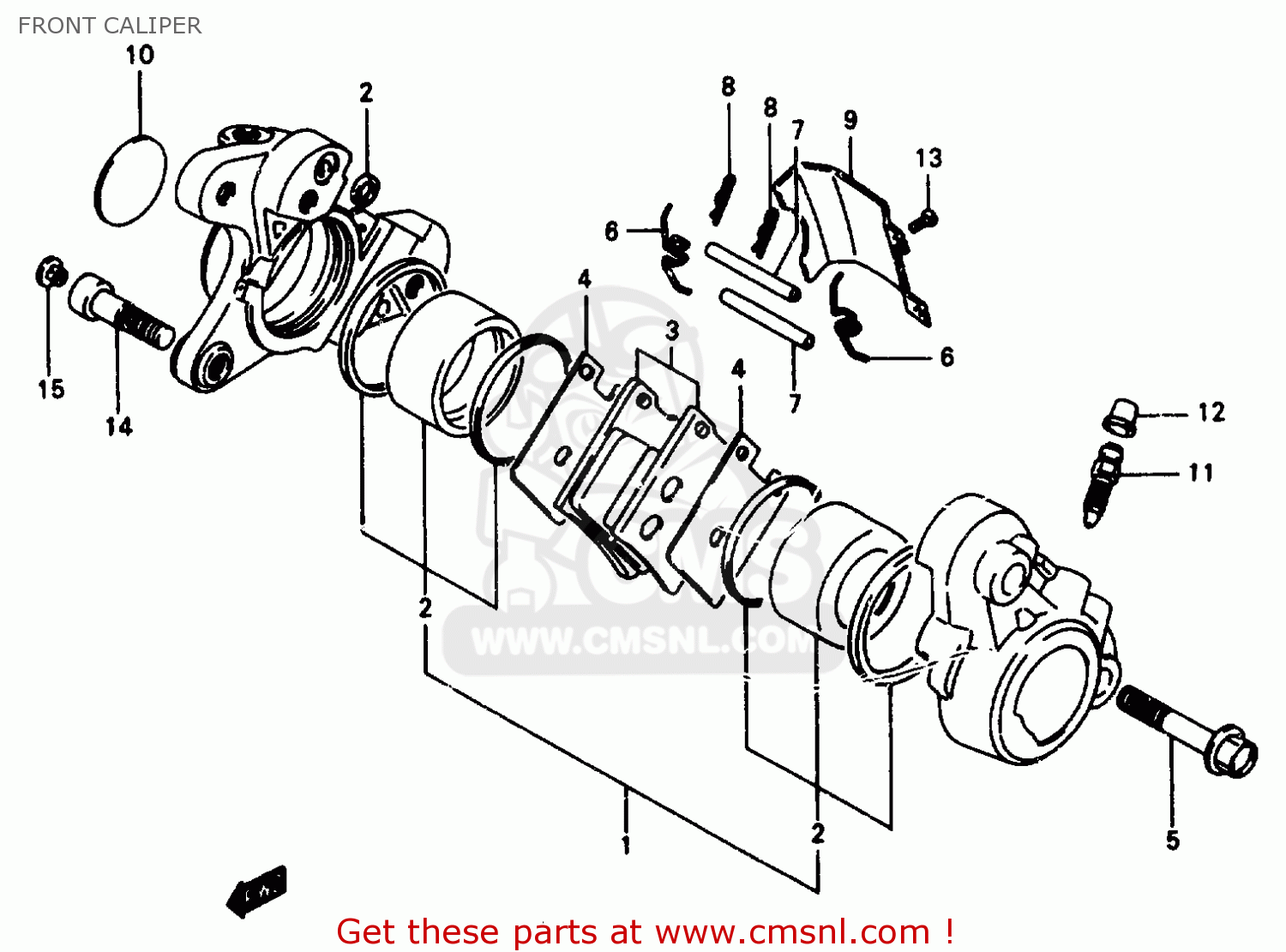

Front caliper diagram VS600GL 1997 (V) (E02 E04 E17 E18)
FRONT CALIPER VS600GL 1997 (V) (E02 E04 E17 E18)
×
prices are in EUR
ref
part #
description
quantity
0
5910038A02
ref: 0
CALIPER ASSEMBLY,FRONT,RIGHT
€ 595.50
1
6910038810
ref: 1
PISTON SET
€ 176.00
2
6910038830
ref: 2
SEAL SET,PISTON
€ 38.50
3
5910038820
ref: 3
-59130-38B10
PAD SET (NAS)
€ 41.50
4
5937133410
ref: 4
SHIM,PAD
€ 15.00
5
5914516700
ref: 5
BOLT,HOUSING
€ 8.00
6
5914316700
ref: 6
SPRING
€ 7.50
7
6914145000
ref: 7
PIN,PAD
€ 6.50
8
6914245000
ref: 8
CLIP,PAD PIN
€ 4.50
9
5915138B01
ref: 9
COVER,CALIPER HOUSING,DUST
€ 58.00
10
5915224A00
ref: 10
CAP,CALIPER
€ 23.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5515666310
ref: 12
CAP,BLEEDER PLUG
€ 6.00
13
5915338B10
ref: 13
SCREW,CALIPER COVER(4X6)
€ 7.50
14
0910610038
ref: 14
BOLT(10X33)
€ 4.50
15
0925008014
ref: 15
CAP(OD:12)
€ 3.50
