HEADLAMP HOUSING

VS600GL 1997 (V) (E02 E04 E17 E18)

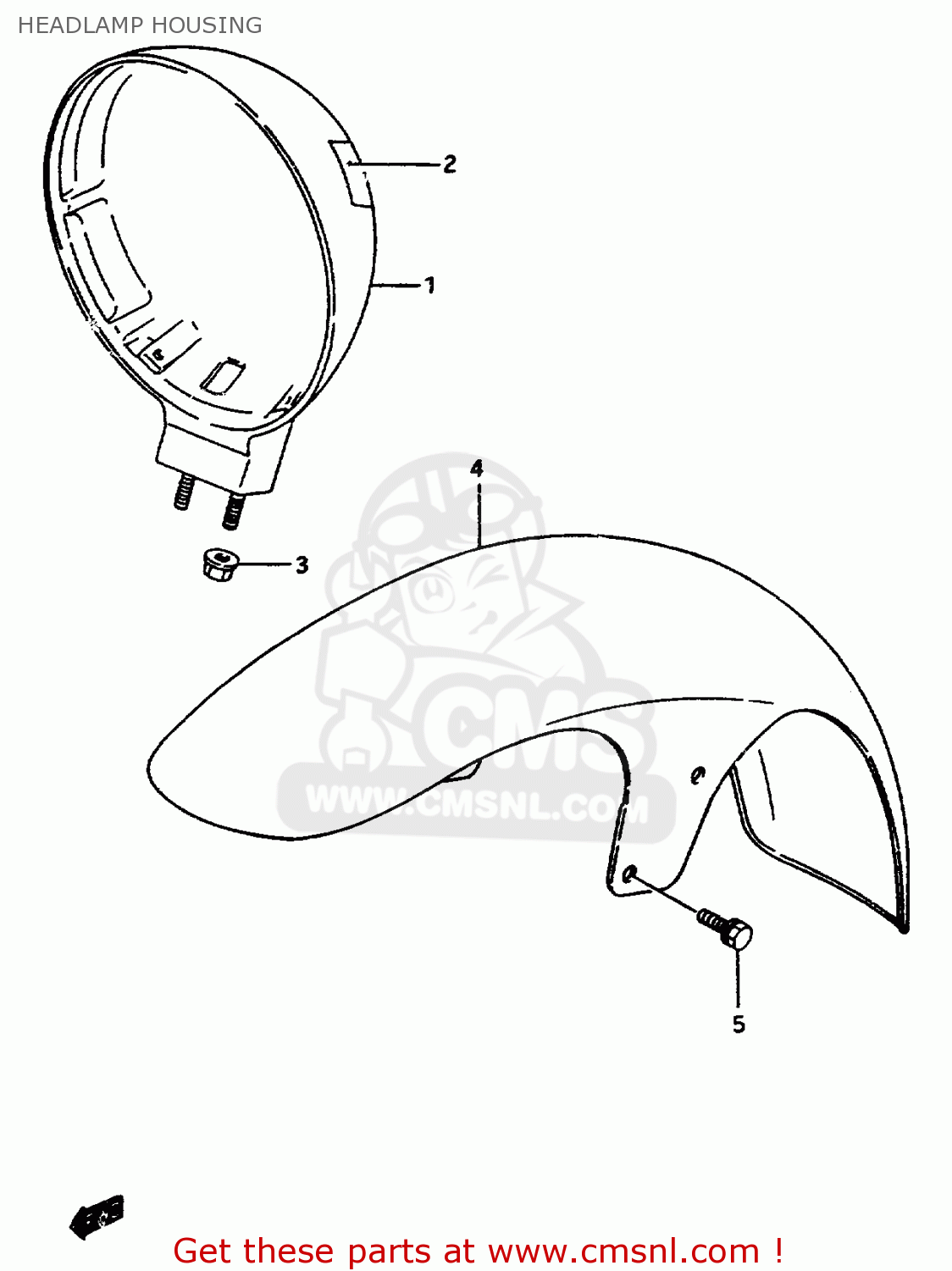

Headlamp housing diagram VS600GL 1997 (V) (E02 E04 E17 E18)

HEADLAMP HOUSING VS600GL 1997 (V) (E02 E04 E17 E18)

HEADLAMP HOUSING VS600GL 1997 (V) (E02 E04 E17 E18)

prices are in EUR

ref

part #

description

quantity

1

5181038A02
ref: 1

HOUSING,HEADLAMP

€ 111.00

2

4735838A00
ref: 2

TAPE,FRAME HEAD COVER

€ 7.00

3

0831931063
ref: 3

NUT

€ 2.50

4-1

5311038A101ZV
ref: 4-1
MODEL S

FENDER,FR

€ 227.50

4-2

5311038A1019A
ref: 4-2
MODEL T

FENDER,FR

€ 325.50

4-3

5311038A1033J
ref: 4-3

FENDER,FR

€ 430.00

4-4

5311038A10Y0V
ref: 4-4
MODEL V

FENDER,FR

€ 150.00

5

0157006163
ref: 5

BOLT

€ 2.50
