STARTER CLUTCH

VS600GL 1997 (V) (E02 E04 E17 E18)

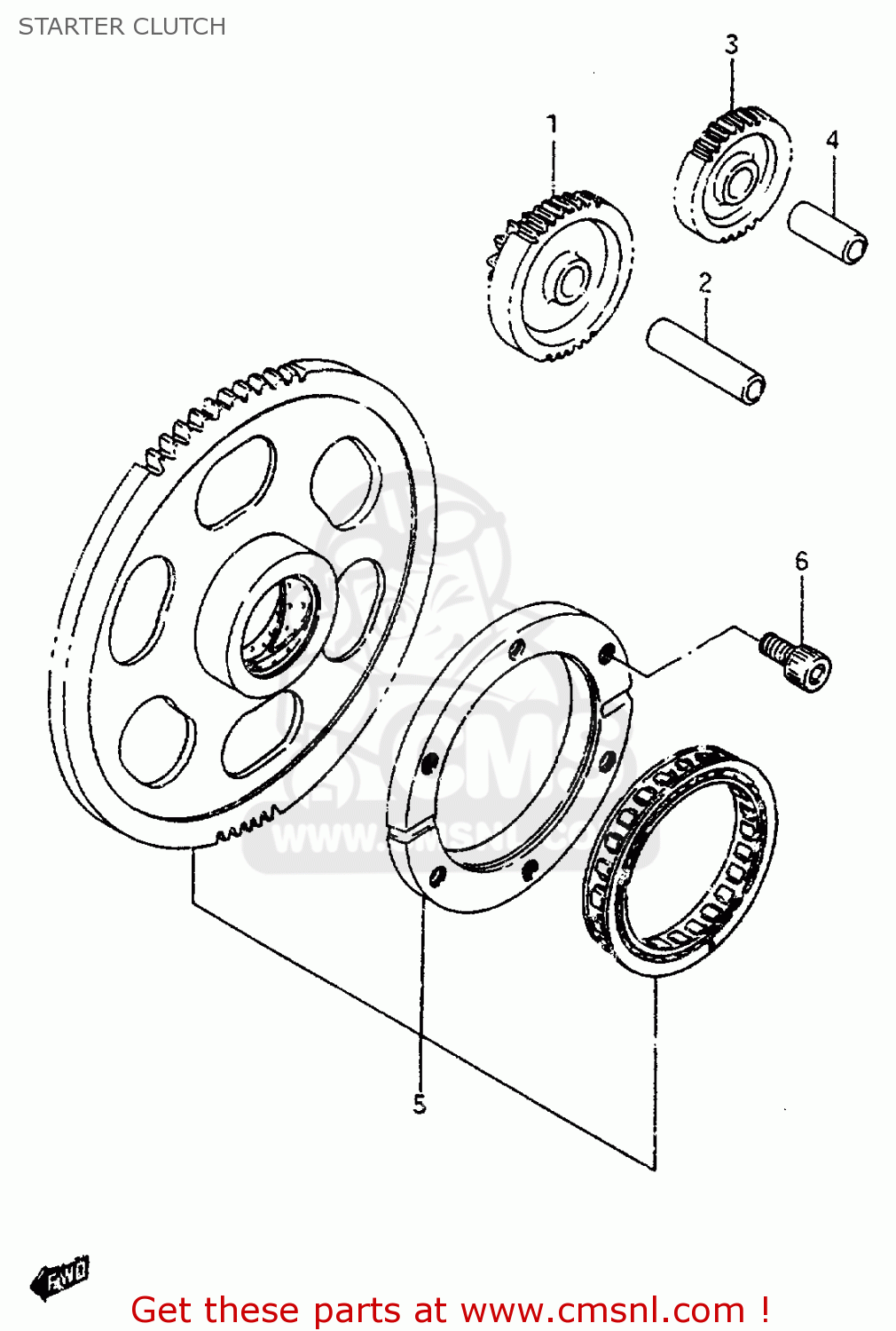

Starter clutch diagram VS600GL 1997 (V) (E02 E04 E17 E18)

STARTER CLUTCH VS600GL 1997 (V) (E02 E04 E17 E18)

STARTER CLUTCH VS600GL 1997 (V) (E02 E04 E17 E18)

prices are in EUR

ref

part #

description

quantity

1

1261138A01
ref: 1
NT:12/41

GEAR,STARTER IDLE NO.1

€ 57.50

2

0920210008
ref: 2

PIN,10X43

€ 9.00

3

1261138A11
ref: 3
NT:32

GEAR,STARTER IDLE NO.2

€ 39.50

4

0920210006
ref: 4

PIN

€ 6.50

5

1260038831
ref: 5

CLUTCH SET,STARTER

€ 307.00

6

0713008163
ref: 6

BOLT

€ 3.00
