FRONT MASTER CYLINDER

VS600GL 1997 (V) (E02 E04 E17 E18)

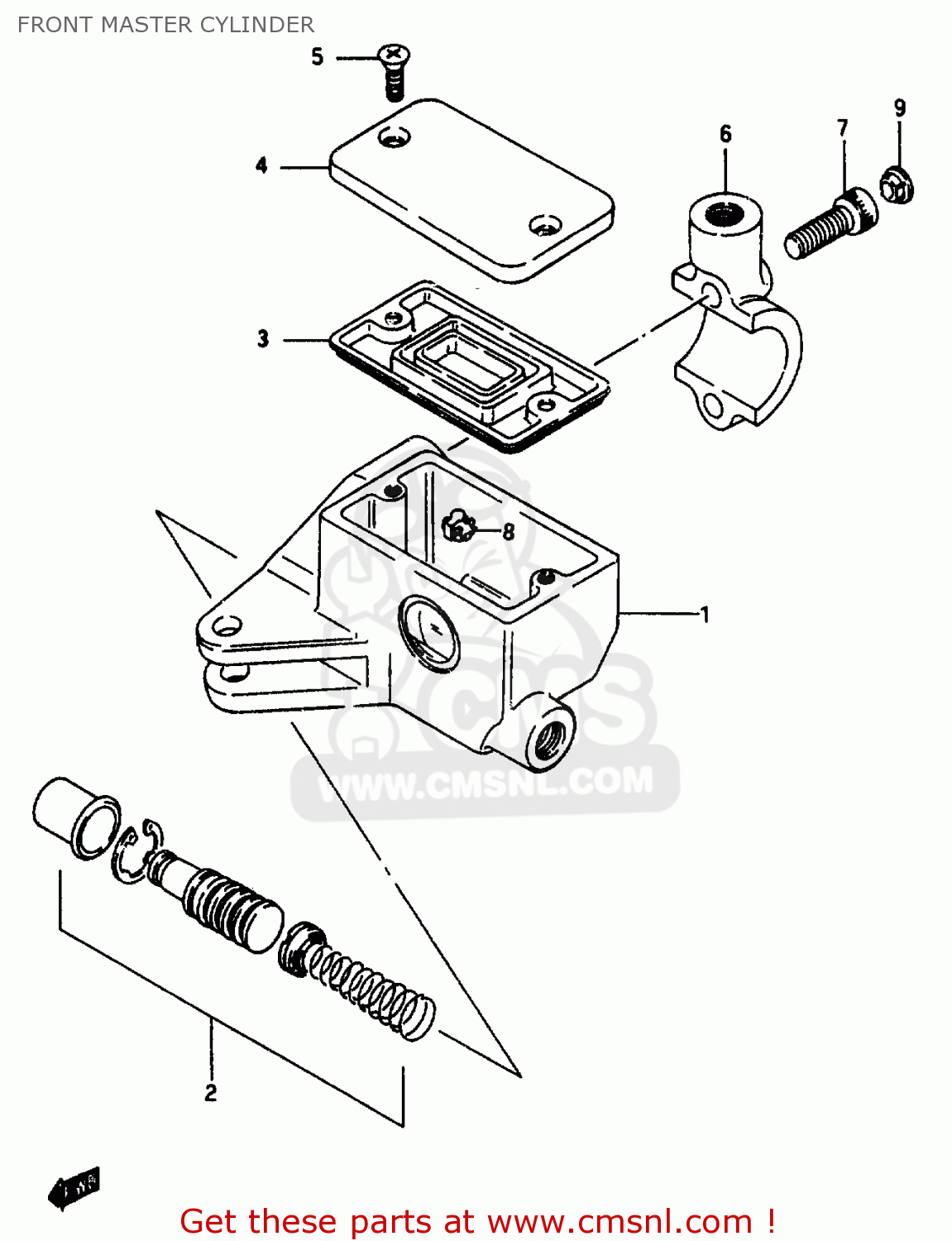

Front master cylinder diagram VS600GL 1997 (V) (E02 E04 E17 E18)

prices are in EUR

ref

part #

description

quantity

1-1

5960024B50
ref: 1-1

CYLINDER ASSY,FR MASTER

€ 391.50

1-2

5960038A90
ref: 1-2
VS600GLFT/GLFV E4,E3

CYLINDER ASSY,FR MASTER

€ 365.00

5960036820
ref: 2

CUP SET,MASTER CYLINDER

€ 37.50

5966749460
ref: 3

5966749460

5966924B00
ref: 4

CAP

€ 59.00

0212204127
ref: 5

SCREW

€ 2.00

5967138A00
ref: 6

HOLDER

€ 37.50

0713006207
ref: 7

BOLT

€ 3.50

5966448B00
ref: 8

PROTECTOR

€ 8.00

0925005008
ref: 9

CAP(OD:10)

€ 5.00
