STARTING MOTOR

VS600GL 1997 (V) (E02 E04 E17 E18)

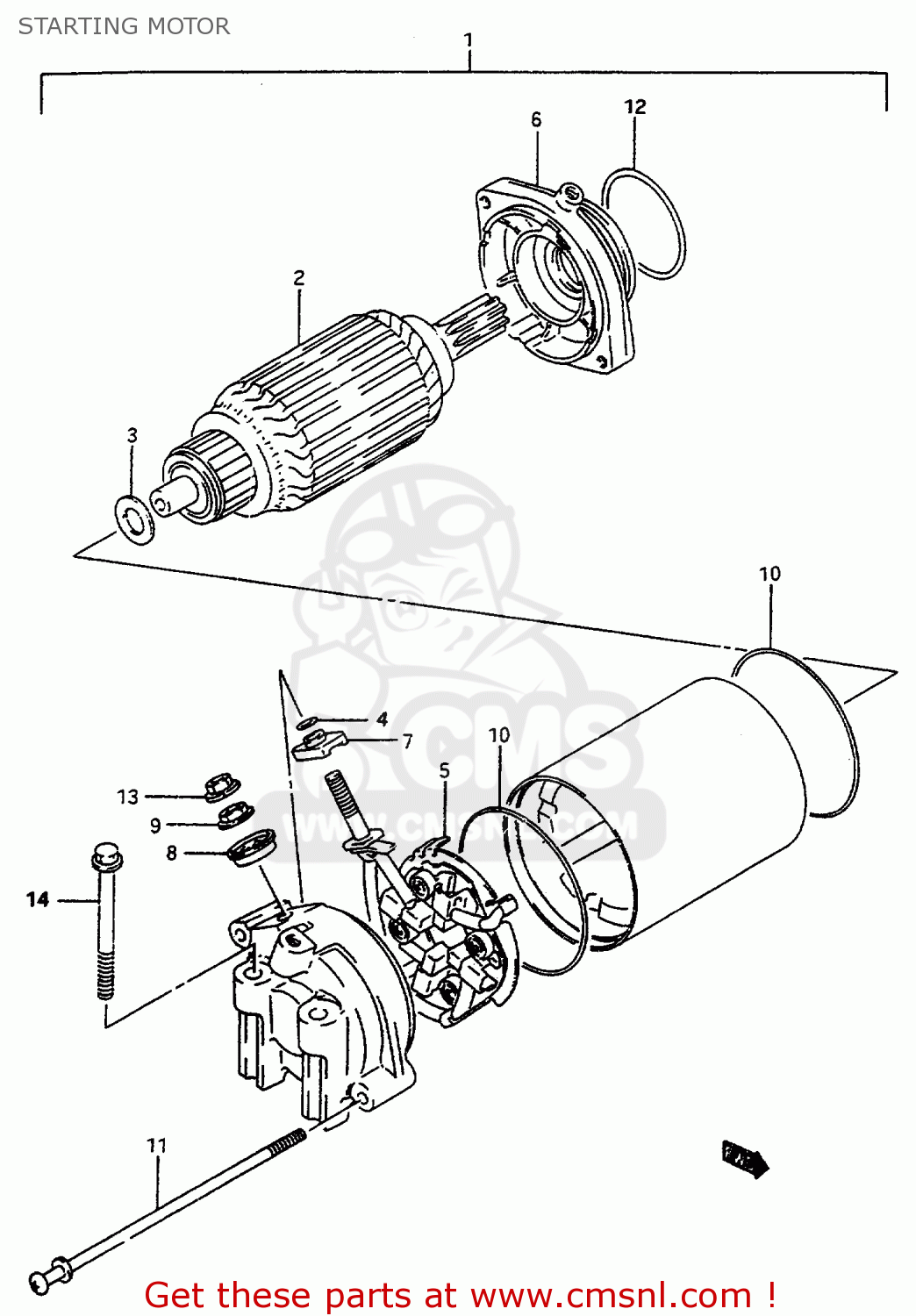

Starting motor diagram VS600GL 1997 (V) (E02 E04 E17 E18)

STARTING MOTOR VS600GL 1997 (V) (E02 E04 E17 E18)

STARTING MOTOR VS600GL 1997 (V) (E02 E04 E17 E18)

prices are in EUR

ref

part #

description

quantity

1-1

3110045C00
ref: 1-1
MODEL S

MOTOR ASSEMBLY,STARTING

€ 472.00

1-2

3110045C01
ref: 1-2
MODEL T/V

MOTOR ASSY,STARTING

€ 472.00

2

3131045C00
ref: 2

ARMATURE

€ 127.00

3

3117043400
ref: 3

SHIM SET,STARTING MOTOR

€ 3.50

4

3114338300
ref: 4

O RING

€ 3.50

5

3113245C00
ref: 5

HOLDER SET,BRUSH

€ 46.00

6

3115038A00
ref: 6

BRACKET SET

€ 79.50

7

3117238300
ref: 7

BUSHING

€ 4.00

8

3117388C00
ref: 8

BUSHING

€ 6.00

9

0831000067
ref: 9

NUT

€ 2.50

10

3126444110
ref: 10

O RING

€ 8.00

11

3128124B10
ref: 11

BOLT

€ 5.00

12

3115638A00
ref: 12

O RING

€ 8.00

13

0836135068
ref: 13

NUT

€ 2.00

14

0154706603
ref: 14

BOLT

€ 3.50
