FRONT WHEEL (MODEL F/G)

VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

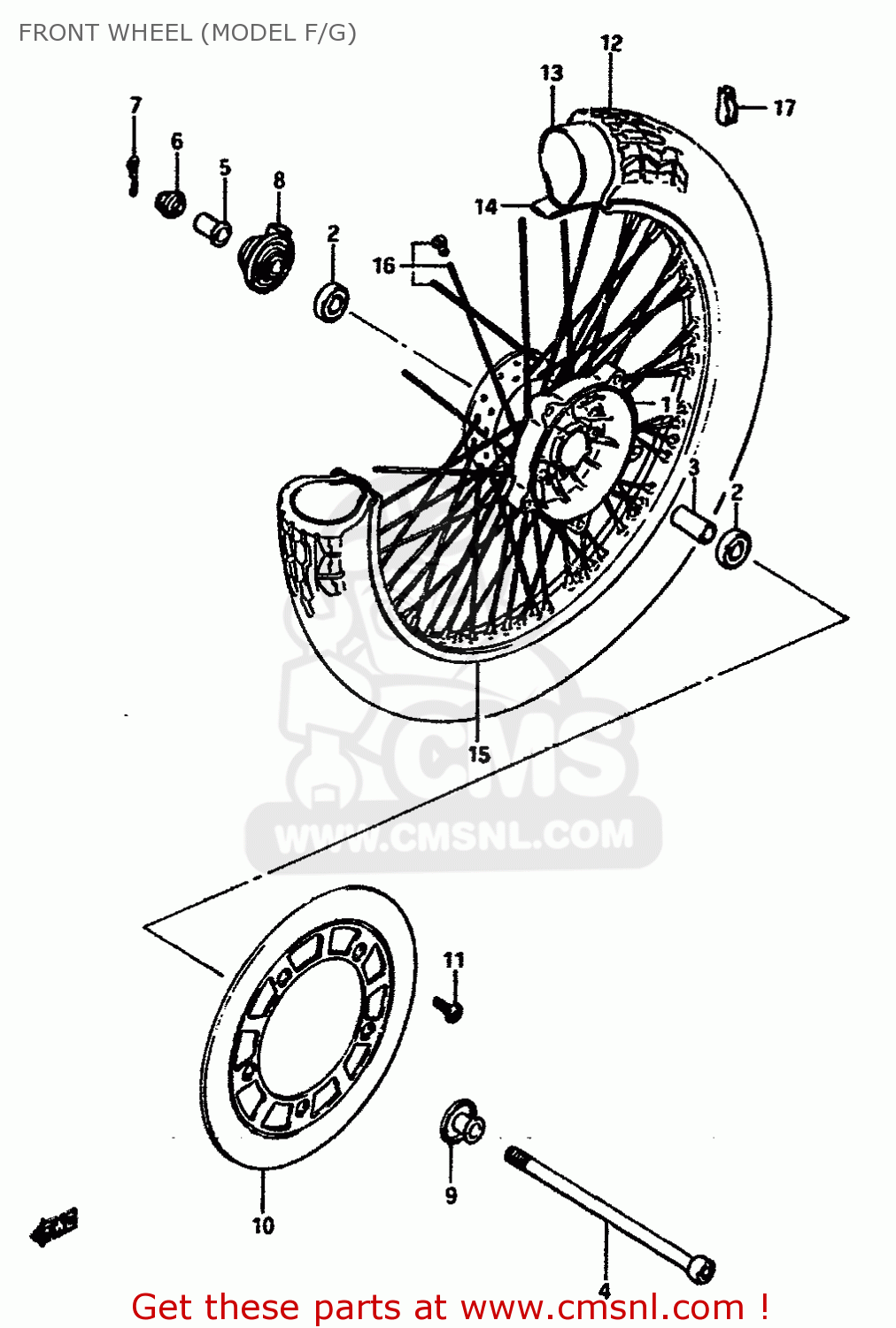

Front wheel (model f/g) diagram VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

FRONT WHEEL (MODEL F/G) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

FRONT WHEEL (MODEL F/G) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

prices are in EUR

ref

part #

description

quantity

1

5411038A00
ref: 1

HUB ASSEMBLY,FRONT

€ 237.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

4

5471138A01
ref: 4

AXLE,FRONT

€ 58.00

5-1

5474138A00
ref: 5-1
MODEL F

SPACER,FRONT AXLE,RIGHT

€ 10.50

5-2

5474107A00
ref: 5-2
MODEL G

SPACER,FRONT AXLE,RIGHT

€ 14.00

6-1

0915912021
ref: 6-1
MODEL F

NUT

€ 5.50

6-2

0831931128
ref: 6-2
MODEL G

NUT 12MM

€ 4.00

7

5479138A00
ref: 7
MODEL F

PIN,FRONT AXLE

€ 2.50

8

5460049260
ref: 8

BOX ASSY,SPEEDOMETER GEAR

€ 219.00

9

5475038A30
ref: 9

SPACER COMP,FRONT AXLE

€ 17.50

10

5921138A00
ref: 10

DISC,FR BRAKE

€ 469.50

11

0910608049
ref: 11

BOLT(8X25.5)

€ 4.00

12

5510038A00
ref: 12
BRIDGESTONE

TIRE,FRONT

€ 0.00

13

5520015030
ref: 13

TUBE,INNER

€ 41.00

14

5526115010
ref: 14

PROTECTOR,WHL INR TUBE

€ 2.50

15

5531138A00
ref: 15

RIM,FRONT WHEEL (MT2.15)

€ 369.00

16

5532038A01
ref: 16

SPOKE SET,FR WHEEL

€ 141.50

17-1

5541238A00
ref: 17-1

BALANCER,WHEEL

€ 6.50

17-2

5541338A00
ref: 17-2

BALANCER,WHEEL (30G)

€ 8.00
