SECONDARY DRIVE GEAR (MODEL F)

VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

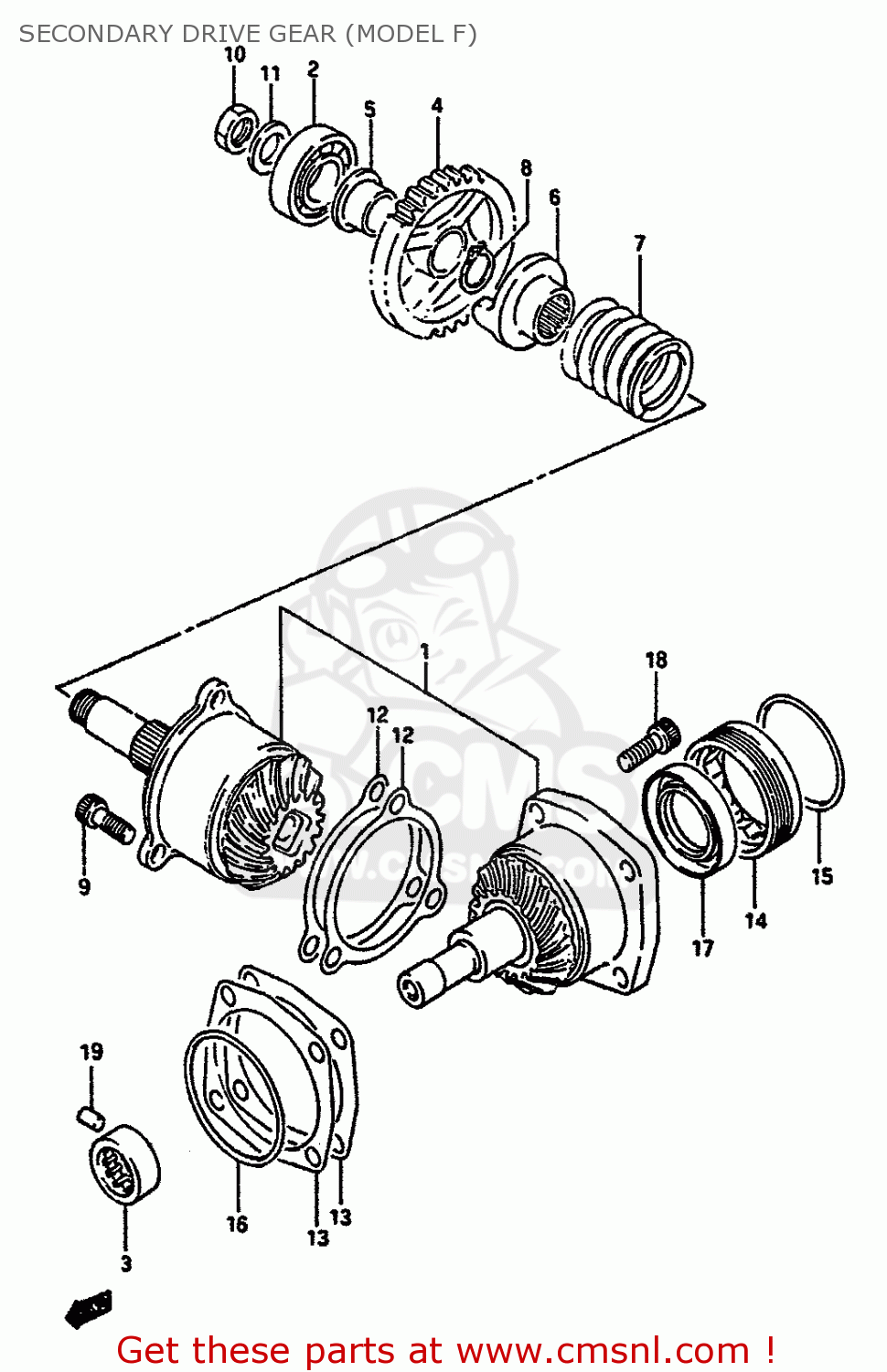

Secondary drive gear (model f) diagram VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

SECONDARY DRIVE GEAR (MODEL F) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
SECONDARY DRIVE GEAR (MODEL F) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
SECONDARY DRIVE GEAR (MODEL F) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
prices are in EUR
ref
part #
description
quantity
1
2490038815
ref: 1
GEAR,SECONDARY & HOUSING
€ 1,120.00
2
0926220073
ref: 2
BEARING(20X52X15)
0926220073
€ 19.00
3
0926320038
ref: 3
BEARING(20X34X16)
0926320038
€ 30.50
4
2463138A00
ref: 4
GEAR,REDUCTION DRIVEN(NT:30)
€ 95.50
5
2463238A00
ref: 5
BUSH,REDUCTION DRIVEN GEAR
2463238A00
€ 13.00
6
2492238A00
ref: 6
DOG,OUTPUT CAM
2492238A00
€ 42.00
7
0944044002
ref: 7
SPRING
€ 15.50
8
0833131218
ref: 8
CIRCLIP,21MM
€ 2.00
9
0711008256
ref: 9
BOLT
€ 3.50
10
0914016014
ref: 10
NUT
0914016014
€ 4.50
11
0916016029
ref: 11
WASHER(16X29X4)
0916016029
€ 6.00
12-1
2493538A01030
ref: 12-1
SHIM,SECONDARY DRIVE
€ 4.00
12-2
2493538A01035
ref: 12-2
SHIM,SECONDARY DRIVE
€ 4.00
12-3
2493538A01040
ref: 12-3
SHIM,SECONDARY DRIVE
€ 4.00
12-4
2493538A01050
ref: 12-4
SHIM,SECONDARY DRIVE
€ 4.00
12-5
2493538A01060
ref: 12-5
SHIM,SECONDARY DRIVE GEAR
€ 4.00
13-1
2494505A000A0
ref: 13-1
SHIM,SECONDARY DRIVEN HOUSING
€ 4.00
13-2
2494505A000B0
ref: 13-2
SHIM,SECONDARY DRIVEN HOUSING
€ 4.00
13-3
2494505A000C0
ref: 13-3
SHIM,SECONDARY DRIVEN HOUSING
€ 4.00
13-4
2494505A000D0
ref: 13-4
SHIM,SECONDARY DRIVEN HOUSING
€ 4.00
13-5
2494505A000E0
ref: 13-5
SHIM,SECONDARY DRIVEN HOUSING
€ 4.00
14
2494238A02
ref: 14
STOPPER,SECONDARY DRIVEN BEARING
€ 16.00
15
0928062002
ref: 15
O RING(D:1.9,ID:61.6)
0928062002
€ 3.00
16
0928067004
ref: 16
O RING(D:2.1,ID:66.2)
0928067004
€ 2.50
17
0928338011
ref: 17
SEAL,OIL(38X54X6)
0928338011
€ 11.50
18
0711008256
ref: 18
BOLT
€ 3.50
19
0422107129
ref: 19
PIN
0422107129
€ 1.50
