STEERING STEM (MODEL F/G)

VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

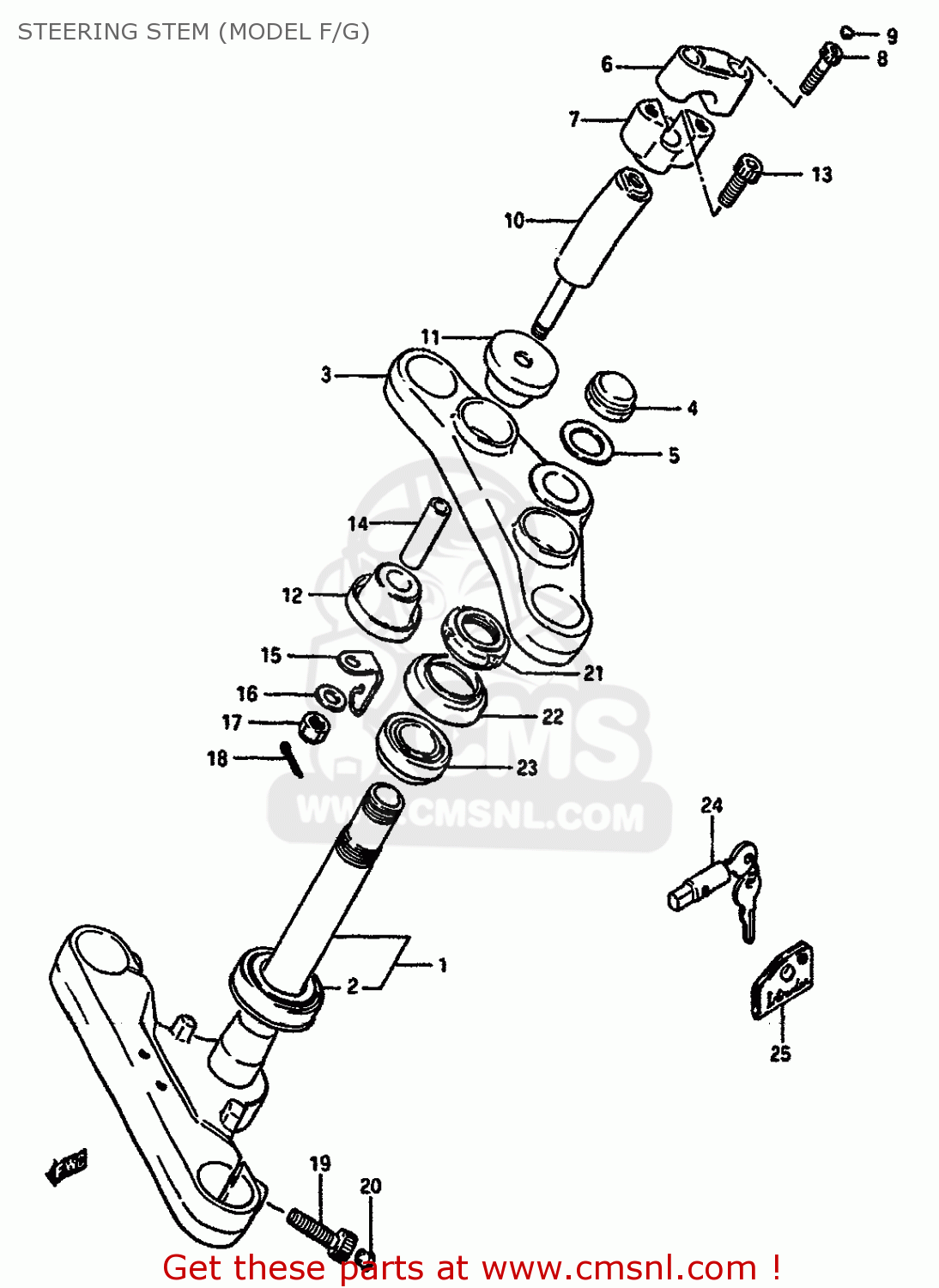

Steering stem (model f/g) diagram VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

STEERING STEM (MODEL F/G) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
STEERING STEM (MODEL F/G) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
STEERING STEM (MODEL F/G) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
prices are in EUR
ref
part #
description
quantity
1-1
5141038A00
ref: 1-1
STEM,STEERING
€ 706.00
1-2
5141038A21
ref: 1-2
E22,E34,E39
STEM,STEERING
5141038A21
€ 706.00
2
0926530005
ref: 2
BEARING
0926530005
€ 49.50
3
5131138A00
ref: 3
HEAD,STEERING STEM
€ 222.00
4
5135338A00
ref: 4
NUT,STEM HEAD
€ 21.50
5
5135438A00
ref: 5
WASHER
€ 3.00
6
5621138A00
ref: 6
HOLDER,HANDLEBAR
€ 45.00
7
5622138A00
ref: 7
HOLDER,HANDLEBAR
€ 65.00
8
0711008305
ref: 8
BOLT, REAR (8X30)
0711008305
€ 3.00
9
0925006009
ref: 9
CAP(OD:14.5)
0925006009
€ 3.50
10-1
5623138A10
ref: 10-1
VS750GLF/GLPG
STAY,HANDLE
5623138A10
€ 19.50
10-2
5623138A00
ref: 10-2
VS750GLFG
STAY,HANDLE
5623138A00
€ 46.00
11
5624038A00
ref: 11
CUSHION
€ 35.50
12-1
5624015500
ref: 12-1
MODEL F~F.NO.101850
CUSHION,LWR
5624015500
€ 26.00
12-2
5624038A10
ref: 12-2
MODEL F F.NO.101851~
CUSHION,LOWER
5624038A10
€ 31.00
13
0711010258
ref: 13
BOLT
€ 3.00
14
0918010065
ref: 14
SPACER(10.2X14X46)
0918010065
€ 4.50
15
3493838A11
ref: 15
CLAMP,SPEEDOMETER CABLE
3493838A11
€ 23.50
16
0832221105
ref: 16
WASHER 10MM
€ 2.50
17
0915910027
ref: 17
NUT
0915910027
€ 3.00
18
0411120208
ref: 18
PIN 20X20
0411120208
€ 1.50
19
5135238A00
ref: 19
BOLT,STEERING STEM HEAD
€ 4.50
20
0925008014
ref: 20
CAP(OD:12)
0925008014
€ 3.50
21
5163128000
ref: 21
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
22
5164349001
ref: 22
DUST SEAL,STEERING,UPPER
5164349001
€ 7.50
23
0926525008
ref: 23
TAPER,ROLLER BEARING
0926525008
€ 48.50
24
5190022662
ref: 24
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
25
5192038A00
ref: 25
CASE,STEERING KEY
5192038A00
€ 10.50
