PROP STAND-REAR BRAKE (MODEL F)

VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

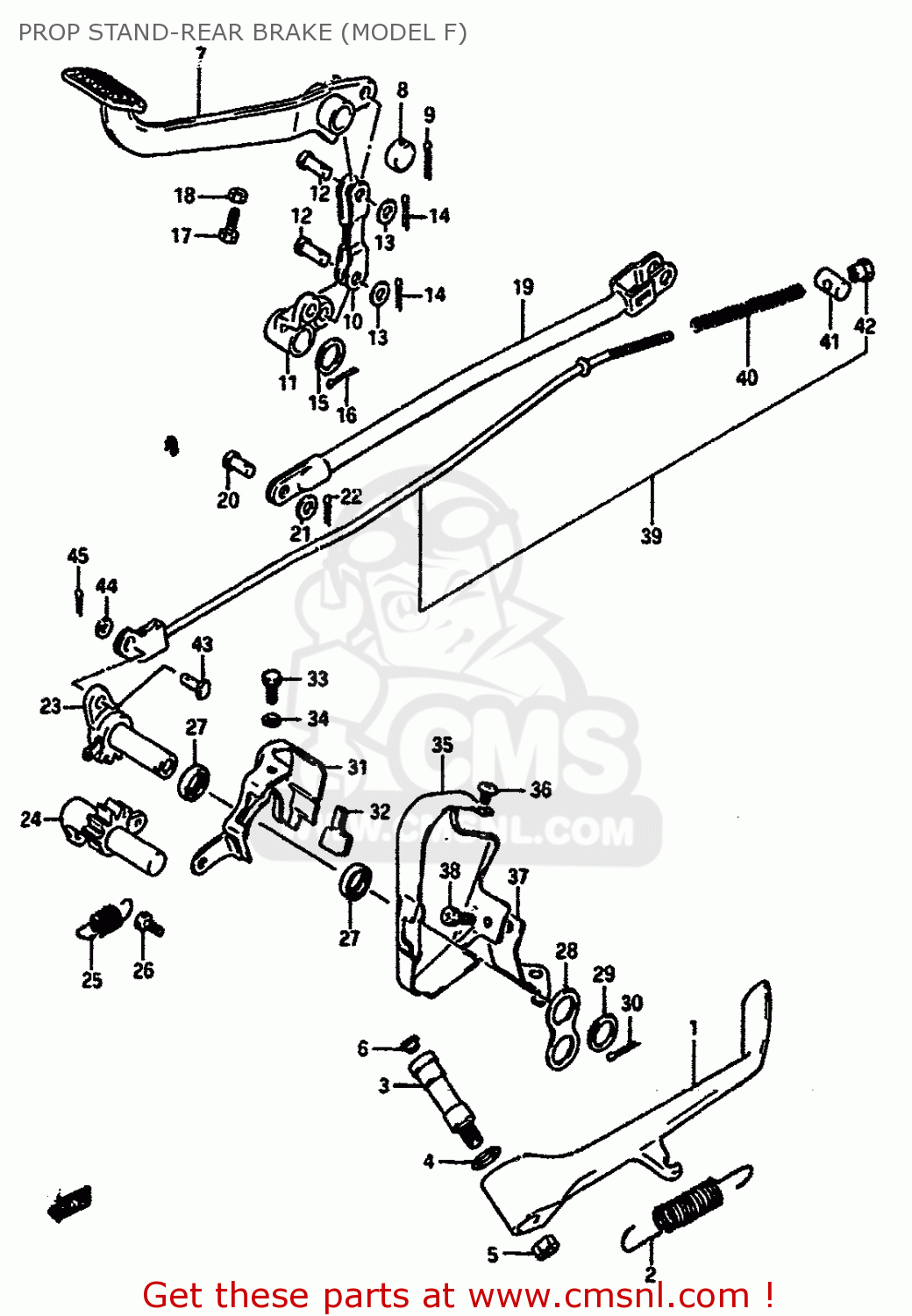

Prop stand-rear brake (model f) diagram VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

PROP STAND-REAR BRAKE (MODEL F) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
PROP STAND-REAR BRAKE (MODEL F) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
PROP STAND-REAR BRAKE (MODEL F) VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
prices are in EUR
ref
part #
description
quantity
1
4231038A00
ref: 1
STAND,PROP
€ 67.50
2
0944315026
ref: 2
SPRING
0944315026
€ 5.50
3
4234138A00
ref: 3
BOLT,PROP STAND
€ 9.00
4
0822115245
ref: 4
THRUST WASHER
€ 2.50
5
0831022107
ref: 5
NUT
0831022107
€ 2.50
6
4357534500
ref: 6
CAP
4357534500
€ 1.50
7
4310038A00
ref: 7
PEDAL ASSEMBLY,BRAKE
4310038A00
€ 70.00
8
4313507A01
ref: 8
CAP,BRAKE PEDAL
€ 7.00
9
0411130308
ref: 9
COTTER PIN
0411130308
€ 1.50
10
4323038A00
ref: 10
LINK COMP,BRAKE ROD NO
4323038A00
€ 18.50
11
4326038A00
ref: 11
ARM,BRAKE PEDAL LINK
€ 0.00
12
0920008055
ref: 12
PIN
0920008055
€ 4.00
13
0832211088
ref: 13
WASHER
0832211088
€ 2.00
14
0411120158
ref: 14
PIN
0411120158
€ 1.50
15
0916016015
ref: 15
WASHER (16.5X42X2.6)
€ 2.00
16
0411130308
ref: 16
COTTER PIN
0411130308
€ 1.50
17
0110706207
ref: 17
BOLT
0110706207
€ 2.00
18
0831011067
ref: 18
NUT 6MM
€ 2.50
19
4327038A00
ref: 19
LINK COMP,BRAKE NO.2
4327038A00
€ 19.00
20
0920008055
ref: 20
PIN
0920008055
€ 4.00
21
0832211088
ref: 21
WASHER
0832211088
€ 2.00
22
0411120158
ref: 22
PIN
0411120158
€ 1.50
23
4312038A00
ref: 23
ARM COMP,BRAKE ROD
€ 43.50
24
4328038A00
ref: 24
ARM COMP,BRAKE PEDAL,LEFT
€ 49.00
25
0944313018
ref: 25
SPRING
0944313018
€ 4.00
26
4325638A00
ref: 26
ARM,BRAKE PEDAL LINK
€ 2.00
27
0928417002
ref: 27
SEAL
€ 2.50
28
4328538A00
ref: 28
PLATE,BRAKE PEDAL ARM
€ 2.00
29
0916017036
ref: 29
WASHER (17.2X30X1.6)
€ 1.50
30
0411130308
ref: 30
COTTER PIN
0411130308
€ 1.50
31
4325038A00
ref: 31
COVER COMP,BRAKE ROD ARM
€ 9.00
32
4325538A00
ref: 32
GROMMET,BRAKE COVER
€ 3.50
33
0110706107
ref: 33
BOLT
€ 2.00
34
0832121067
ref: 34
WASHER,LOCK
0832121067
€ 2.50
35
4329538A00
ref: 35
COVER,BRAKE ROD ARM
4329538A00
€ 15.50
36
0214206108
ref: 36
SCREW
0214206108
€ 2.00
37
4329038A00
ref: 37
BRACKET COMP,BRAKE ROD AR
€ 3.50
38
0912806004
ref: 38
SCREW(6X10)
0912806004
€ 1.50
39
4330038A01
ref: 39
ROD ASSEMBLY,REAR BRAKE
€ 31.50
40
0944009004
ref: 40
SPRING
0944009004
€ 2.00
41
0920913005
ref: 41
PIN
0920913005
€ 3.50
42
0915006009
ref: 42
NUT (6MM)
0915006009
€ 3.50
43
0920008056
ref: 43
PIN
€ 2.00
44
0832211088
ref: 44
WASHER
0832211088
€ 2.00
45
0411120208
ref: 45
PIN 20X20
0411120208
€ 1.50
