MUFFLER
VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

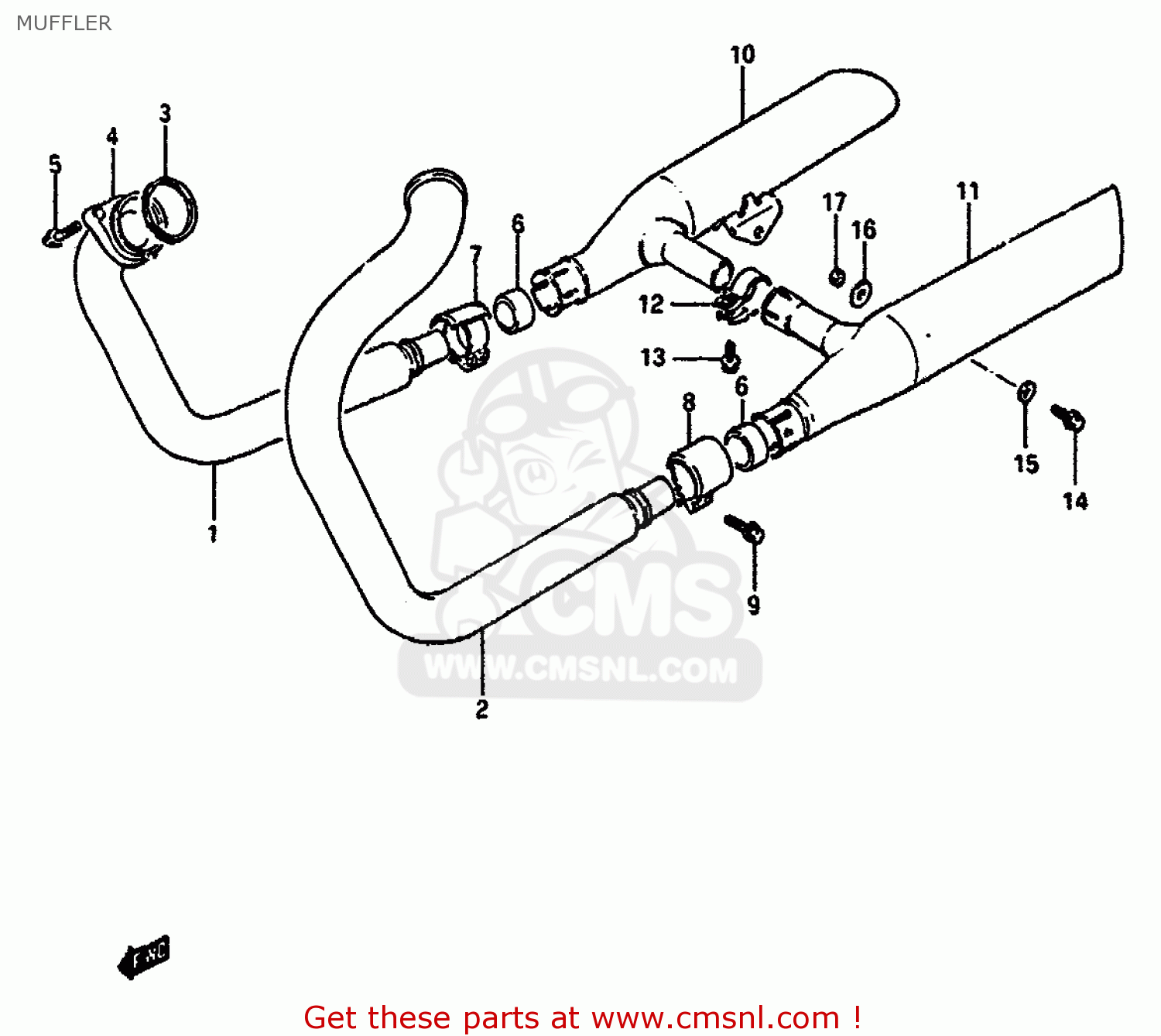

Muffler diagram VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
MUFFLER VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1415038A00
ref: 1-1
PIPE,EXHAUST
€ 193.50
1-2
1415038A20
ref: 1-2
MODEL H/J/K/L E18
PIPE,EXHAUST RH
€ 218.50
2-1
1416038A01
ref: 2-1
PIPE,EXHAUST
€ 202.00
2-2
1416038A20
ref: 2-2
MODEL H/J/K/L E18
PIPE,EXHAUST LH
€ 218.50
3-1
1418138A00
ref: 3-1
GASKET,EXHAUST PIPE (NAS)
€ 6.50
3-2
1418145C00
ref: 3-2
E18
GASKET,EXHAUST PIPE (NAS)
€ 6.50
3-3
1418138A00H17
ref: 3-3
E17,E77 (SWEDEN)
GASKET,EXHAUST PIPE (NA)
€ 6.50
4
1418238A01
ref: 4
CLAMP,EXHAUST PIPE
€ 21.00
5
0910408026
ref: 5
BOLT(8X35)
€ 4.00
6-1
1477105A01
ref: 6-1
CONNECTOR,MUFFLER
€ 21.50
6-2
1477105A01H17
ref: 6-2
E17,E18,E77 (SWEDEN)
CONNECTOR,MUFFLER
€ 21.50
7
1445938A00
ref: 7
CLAMP,MUFFLER CONNECTOR,R
€ 10.00
8
1446938A00
ref: 8
CLAMP,MUFFLER CONNECTOR,L
€ 10.00
9
0154706307
ref: 9
BOLT
€ 2.50
10-1
1431038A01
ref: 10-1
MODEL F
MUFFLER,RH
€ 315.50
10-2
1431038A51
ref: 10-2
MODEL G/H/J/K/L/M
MUFFLER,RH
€ 315.50
10-3
1431038A11
ref: 10-3
MODEL F/G/H E15,E17,
BODY,MUFFLER RH
€ 351.50
10-4
1431038A61
ref: 10-4
E18
BODY,MUFFLER RH
€ 341.00
11-1
1434038A01
ref: 11-1
MODEL F
MUFFLER,LH
€ 352.00
11-2
1434038A51
ref: 11-2
MODEL G/H/J/K/L/M
MUFFLER,LH
€ 352.00
11-3
1434038A11
ref: 11-3
MODEL F/G/H E15,E17,
MUFFLER,LH
€ 307.00
11-4
1434038A61
ref: 11-4
E18
BODY,MUFFLER,L
€ 341.00
12
1477238B00
ref: 12
CLAMP,EXHAUST COUPLER
€ 6.00
13
0151706257
ref: 13
BOLT 6X25
€ 2.50
14
0110708307
ref: 14
BOLT
€ 2.50
15
0832211088
ref: 15
WASHER
€ 2.00
16
0916008004
ref: 16
WASHER
€ 2.50
17
0831626088
ref: 17
NUT
€ 3.00
