RADIATOR
VS750GLF 1989 (K) (E01 E15 E16 E17 E22)

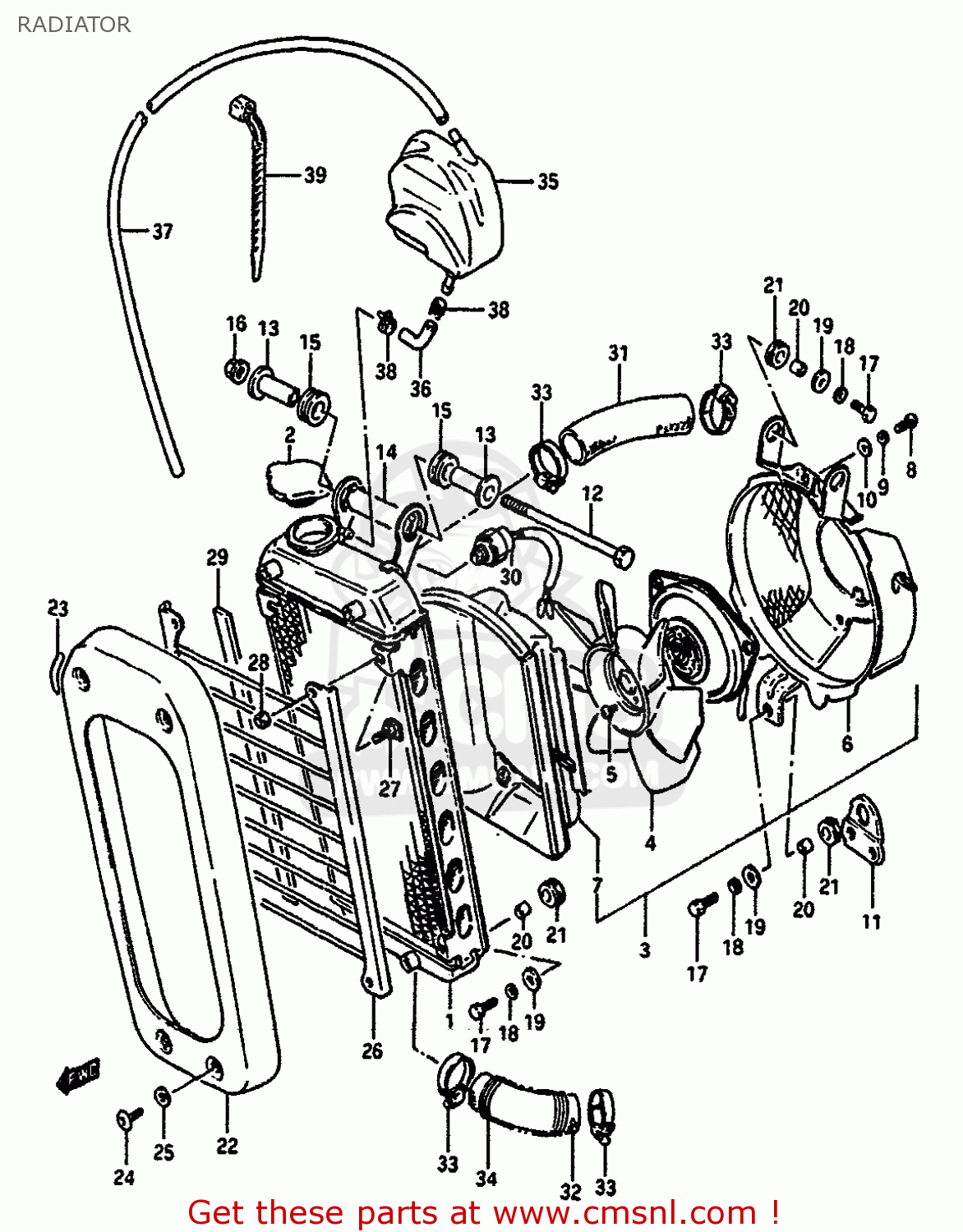

Radiator diagram VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
RADIATOR VS750GLF 1989 (K) (E01 E15 E16 E17 E22)
×
prices are in EUR
ref
part #
description
quantity
1
1771038A01
ref: 1
RADIATOR COMP,WATER
€ 681.00
2-1
1773024A00
ref: 2-1
MODEL F/G/H/J/K
CAP,RADIATOR
€ 40.00
2-2
1773020930
ref: 2-2
MODEL L/M
CAP,RADIATOR 1.1
€ 40.00
3
1780038A02
ref: 3
FAN ASSEMBLY,RADIATOR
€ 496.00
4
1782038A00
ref: 4
FAN
€ 51.00
5
1780105A00
ref: 5
BOLT
€ 2.00
6
1777038A01
ref: 6
SHROUD,FAN
€ 78.50
7
1715038A00
ref: 7
DUCT,FAN
€ 82.50
8
0211205106
ref: 8
SCREW 5X10
€ 2.00
9
0832121056
ref: 9
LOCK WASHER
€ 3.00
10
0832221056
ref: 10
WASHER
€ 2.50
11
1780838A00
ref: 11
BRACKET,RADIATOR FAN
€ 4.00
12
0910010198
ref: 12
BOLT 10X135
€ 4.00
13-1
1778238A00
ref: 13-1
~F.NO.103866
SPACER,RADIATOR CUSHION
€ 12.50
13-2
1778238A01
ref: 13-2
F.NO.103867~
SPACER,RADIATOR CUSHION NO.2
€ 12.50
14
1778338A00
ref: 14
SPACER,RDTR CUSH NO.2 OUTER
€ 2.00
15
0932015008
ref: 15
CUSHION
€ 3.50
16
0831931105
ref: 16
NUT 10MM
€ 3.00
17
0110706165
ref: 17
BOLT 6X16
€ 2.00
18
0832121064
ref: 18
WASHER,LOCK
€ 2.00
19
0916006039
ref: 19
WASHER (6.5X18X1.6)
€ 2.00
20
0918006154
ref: 20
SPACER (6X9X8)
€ 2.00
21
0932008037
ref: 21
CUSHION
€ 4.00
22-1
1776138A11
ref: 22-1
MODEL F/G
COVER,RADIATOR (BLACK)
€ 74.50
22-2
1776138A5013Z
ref: 22-2
MODEL H
COVER,RADIATOR
€ 74.50
22-3
1776138A5024V
ref: 22-3
MODEL H
COVER,RADIATOR (BLUE)
€ 74.50
22-4
1776138A50330
ref: 22-4
MODEL H
COVER,RADIATOR (MAROON)
€ 0.00
22-5
1776138A5020U
ref: 22-5
MODEL J/K/L
COVER,RADIATOR (MAROON)
€ 77.00
22-6
1776138A5033J
ref: 22-6
MODEL J/K/L
COVER,RADIATOR(BLACK)
€ 74.50
22-7
1776138A5014W
ref: 22-7
MODEL M
COVER,RADIATOR
€ 74.50
22-8
1776138A5019A
ref: 22-8
MODEL M
COVER,RADIATOR
€ 74.50
22-9
1776138A01
ref: 22-9
MODEL F/G E39
COVER,RADIATOR
€ 74.50
22-10
1776138A4013Z
ref: 22-10
MODEL H E39
COVER,RADIATOR
€ 74.50
22-11
1776138A4024V
ref: 22-11
MODEL H E39
COVER,RADIATOR
€ 74.50
22-12
1776138A40330
ref: 22-12
MODEL H E39
COVER,RADIATOR (MAROON)
€ 0.00
22-13
1776138A4020U
ref: 22-13
MODEL J E77,MODEL K/
COVER,RADIATOR
€ 77.00
22-14
1776138A4033J
ref: 22-14
MODEL J E77,MODEL K/
COVER,RADIATOR
€ 74.50
22-15
1776138A4014W
ref: 22-15
MODEL M E39
COVER,RADIATOR
€ 74.50
22-16
1776138A4019A
ref: 22-16
MODEL M E39
COVER,RADIATOR
€ 74.50
23
1776538A00
ref: 23
MODEL F/G
TAPE,RATIATOR COVER
€ 0.00
24
0913906041
ref: 24
SCREW
€ 2.50
25
0916006093
ref: 25
WASHER (6.2X14X2)
€ 2.00
26
1779038A00
ref: 26
BUMPER COMP,RADIATOR
€ 25.50
27
0911905014
ref: 27
BOLT
€ 2.50
28
0831022055
ref: 28
NUT 5MM
€ 2.00
29
1779538A00
ref: 29
CUSHION,RADIATOR BUMPER
€ 3.00
30-1
1768038A00
ref: 30-1
MODEL F/G/H/J/K
SWITCH
€ 106.50
30-2
1768024A02
ref: 30-2
MODEL L/M
SWITCH,RADIATOR FAN
€ 106.50
31
1785138A00
ref: 31
HOSE,RADIATOR INLET
€ 11.50
32
1785238A00
ref: 32
HOSE,RADIATOR
€ 16.50
33-1
0940230501
ref: 33-1
MODEL F/G
CLAMP
€ 11.50
33-2
0940230502
ref: 33-2
MODEL H/J/K/L/M
CLAMP
€ 11.50
34
0944035005
ref: 34
SPRING
€ 4.00
35
1791138A00
ref: 35
TANK,RESERVOIR
€ 23.00
36
1798138A01
ref: 36
HOSE,RESERVE TANK INLET
€ 7.00
37
1798238A03
ref: 37
HOSE,RESERVOIR TANK OVERFLOW
€ 16.00
38
0940108407
ref: 38
CLIP
€ 3.00
39
0940714403
ref: 39
CLAMP(L:125)
€ 2.50
