AIR CLEANER (FRONT)

VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

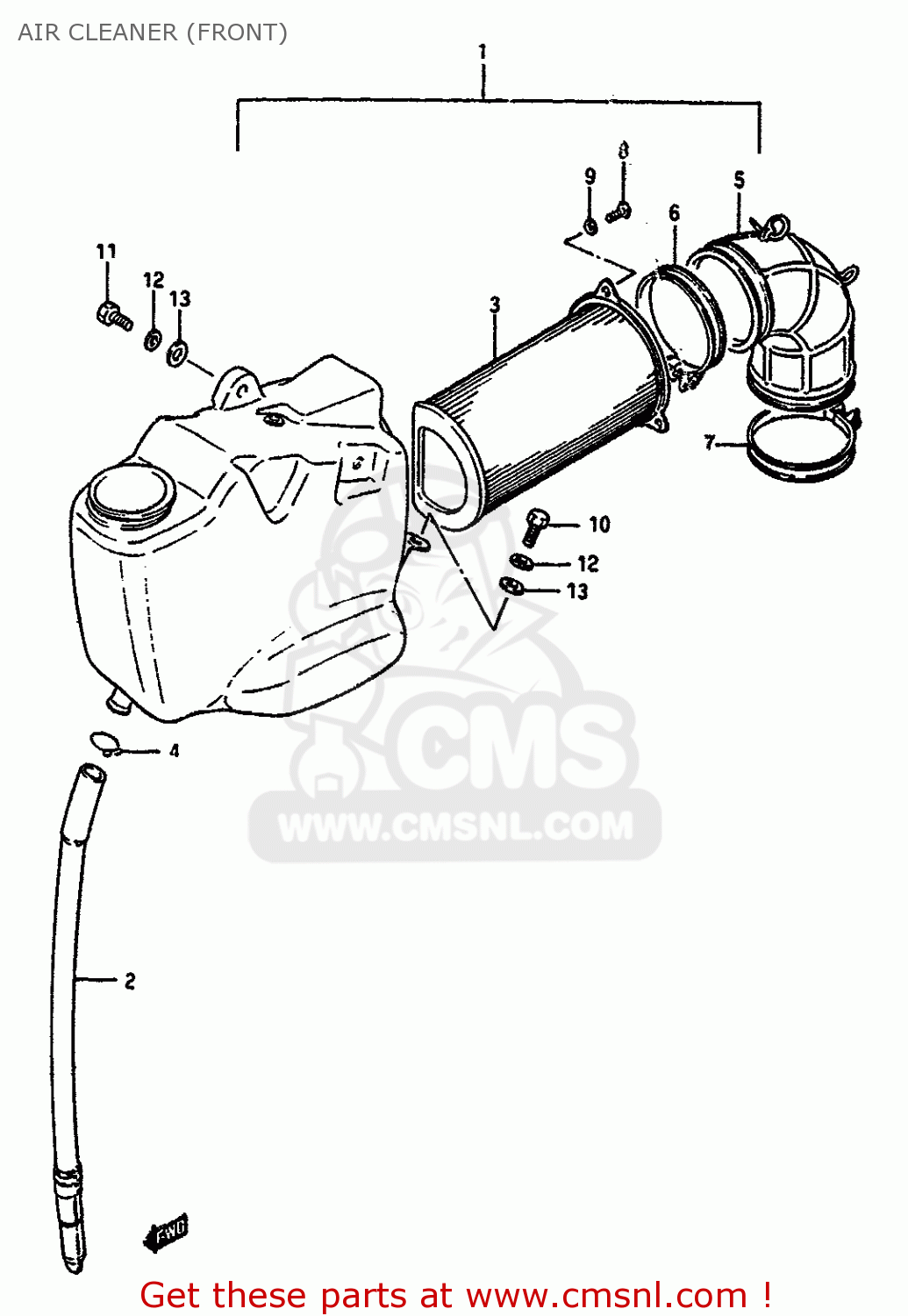

Air cleaner (front) diagram VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

1-1

1370038A00
ref: 1-1
MODEL F

CLEANER ASSEMBLY,AIR

€ 177.50

1-2

1370038A10
ref: 1-2
MODEL G/H/J/K/L/M

CLEANER ASSY,AIR FRONT

€ 150.50

1387011413
ref: 2

DRAIN TUBE

€ 13.50

1378038A00
ref: 3

FILTER,AIR CLEANER

€ 25.00

1382400A00
ref: 4

CLIP

€ 2.50

1388138A00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 28.00

0940256208
ref: 6

CLAMP

€ 3.50

0940258208
ref: 7

CLAMP

€ 5.50

0211204085
ref: 8

SCREW

€ 2.00

0832121045
ref: 9

LOCK WASHER

€ 2.00

0110706167
ref: 10

BOLT

€ 3.00

0110706207
ref: 11

BOLT

€ 2.00

0832121067
ref: 12

WASHER,LOCK

€ 2.50

0832221067
ref: 13

WASHER

€ 2.00
