PROP STAND-REAR BRAKE (MODEL G/H/J/K/L/M)

VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

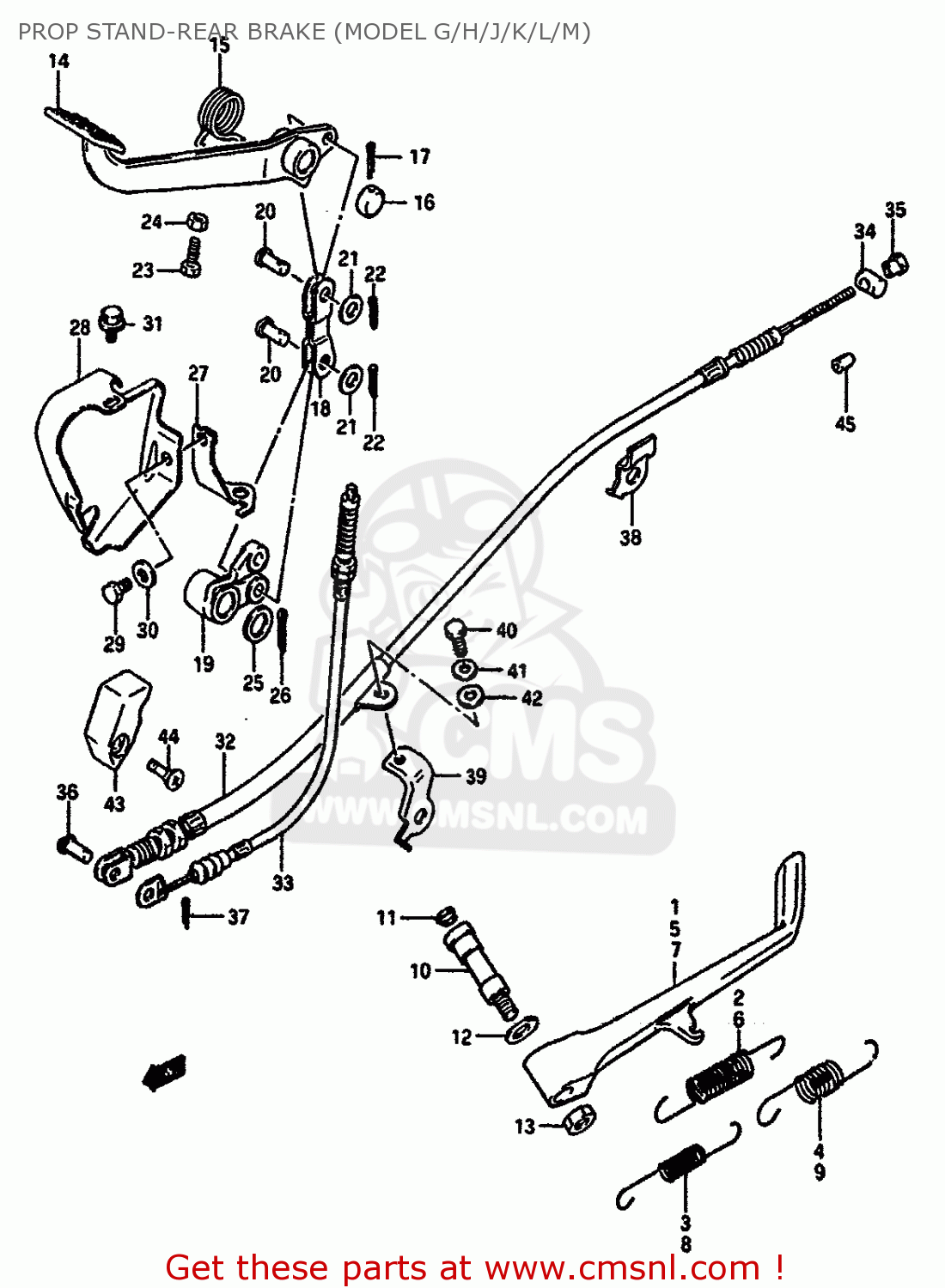

Prop stand-rear brake (model g/h/j/k/l/m) diagram VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

PROP STAND-REAR BRAKE (MODEL G/H/J/K/L/M) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)
PROP STAND-REAR BRAKE (MODEL G/H/J/K/L/M) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)
PROP STAND-REAR BRAKE (MODEL G/H/J/K/L/M) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
1
4231138A10
ref: 1
MODEL G/H
STAND,PROP
4231138A10
€ 64.00
2
0944315028
ref: 2
MODEL G/H
SPRING
€ 4.50
3
0944309034
ref: 3
E22
SPRING,INNER
€ 6.50
4
0944316011
ref: 4
E22
SPRING,OUTER
€ 6.50
5-1
4231038A00
ref: 5-1
MODEL G E4,E17,E21,E
STAND,PROP
€ 67.50
5-2
4231038A10
ref: 5-2
MODEL H E4,E17,E21,E
STAND,SIDE
€ 92.00
6
0944315026
ref: 6
E4,E17,E21,E25,E34,E
SPRING
0944315026
€ 5.50
7
4231038A11
ref: 7
MODEL J/K/L/M
STAND,PROP
4231038A11
€ 92.00
8
0944313025
ref: 8
MODEL J/K/L/M
SPRING
0944313025
€ 7.50
9
0944318021
ref: 9
MODEL J/K/L/M
SPRING
0944318021
€ 7.50
10-1
4234138A00
ref: 10-1
MODEL G
BOLT,PROP STAND
€ 9.00
10-2
4234138B00
ref: 10-2
MODEL H
BOLT,PROP STAND
€ 9.00
10-3
4234138B01
ref: 10-3
MODEL J/K/L/M
BOLT,PROP STAND
4234138B01
€ 9.00
11
4357534500
ref: 11
CAP
4357534500
€ 1.50
12
0822115245
ref: 12
THRUST WASHER
€ 2.50
13
0831022107
ref: 13
NUT
0831022107
€ 2.50
14-1
4310038A20
ref: 14-1
MODEL G/H
PEDAL,BRAKE
4310038A20
€ 81.50
14-2
4310038A30
ref: 14-2
MODEL J/K/L/M
PEDAL,BRAKE
4310038A30
€ 81.50
15
0944831034
ref: 15
SPRING
0944831034
€ 5.50
16
4313507A01
ref: 16
CAP,BRAKE PEDAL
€ 7.00
17
0411130308
ref: 17
COTTER PIN
0411130308
€ 1.50
18
4323038A00
ref: 18
LINK COMP,BRAKE ROD NO
4323038A00
€ 18.50
19-1
4326038A20
ref: 19-1
MODEL G
ARM,BRAKE PEDAL LINK
€ 77.00
19-2
4326038A21
ref: 19-2
MODEL H/J/K/L/M
ARM,BRAKE PEDAL LINK
4326038A21
€ 77.00
20
0920008055
ref: 20
PIN
0920008055
€ 4.00
21
0832211088
ref: 21
WASHER
0832211088
€ 2.00
22
0411120158
ref: 22
PIN
0411120158
€ 1.50
23
0110706207
ref: 23
BOLT
0110706207
€ 2.00
24
0831011067
ref: 24
NUT 6MM
€ 2.50
25
0916016015
ref: 25
WASHER (16.5X42X2.6)
€ 2.00
26
0411130308
ref: 26
COTTER PIN
0411130308
€ 1.50
27
4329038A10
ref: 27
BRACKET COMP,BRAKE COVER
4329038A10
€ 3.50
28
4329538A20
ref: 28
COVER,BRAKE
€ 57.50
29
0912806004
ref: 29
SCREW(6X10)
0912806004
€ 1.50
30
0916006094
ref: 30
WASHER(6.5X15X1.0)
0916006094
€ 1.50
31
0154706107
ref: 31
BOLT
0154706107
€ 1.50
32
5851038A00
ref: 32
CABLE ASSEMBLY,REAR BRAKE
€ 123.50
33
5883038A00
ref: 33
CABLE,STOP LAMP SWITCH
5883038A00
€ 33.50
34
0920913005
ref: 34
PIN
0920913005
€ 3.50
35
0915006009
ref: 35
NUT (6MM)
0915006009
€ 3.50
36
0920005001
ref: 36
PIN(L:17.5)
0920005001
€ 1.50
37
0411120158
ref: 37
PIN
0411120158
€ 1.50
38
5872138A00
ref: 38
CLAMP,RR BRAKE CABLE
€ 6.50
39
4327538A00
ref: 39
BRACKET,RR BRAKE CABLE
4327538A00
€ 10.00
40
0110706166
ref: 40
BOLT
€ 2.00
41
0832121067
ref: 41
WASHER,LOCK
0832121067
€ 2.50
42
0832211068
ref: 42
WASHER 6MM
€ 2.00
43
5863138A00
ref: 43
GUIDE,RR BRAKE CABLE
5863138A00
€ 6.00
44
0212206205
ref: 44
SCREW
€ 2.00
45
6144233310
ref: 45
E22
CAP,GREASE NIPPLE
6144233310
€ 3.00
