FRONT WHEEL (MODEL J/K/L/M)

VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

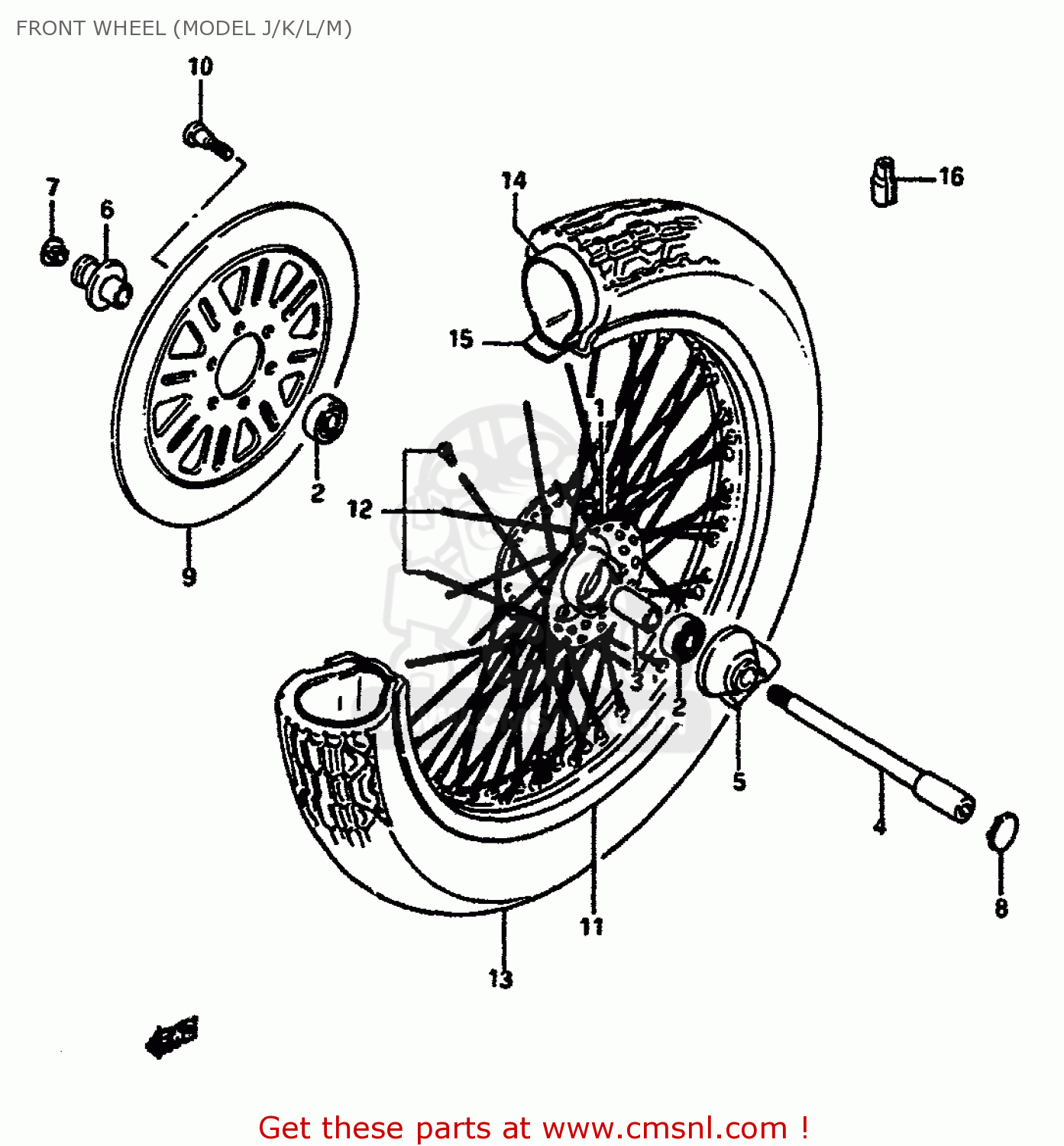

Front wheel (model j/k/l/m) diagram VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

FRONT WHEEL (MODEL J/K/L/M) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

FRONT WHEEL (MODEL J/K/L/M) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

1

5411038B00
ref: 1

HUB ASSY,FR

€ 323.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

4

5471138B02
ref: 4

AXLE,FR

€ 60.50

5

5460038A11
ref: 5

BOX ASSY,SPEEDOMETER

€ 124.50

6

5475038B00
ref: 6

SPACER,FR AXLE

€ 25.50

7

5479138B01
ref: 7

CAP,FR AXLE

€ 4.50

8

5479238B00
ref: 8

CAP,FR AXLE

€ 97.00

9

5921138B00
ref: 9

DISC,FR BRAKE

€ 232.50

10

0910608049
ref: 10

BOLT(8X25.5)

€ 4.00

11

5531138A30
ref: 11

RIM,FR WHEEL(21X2.15 AL)

€ 383.50

12

5532038A20
ref: 12

SPOKE SET,FR WHEEL

€ 174.50

13

5510038A60
ref: 13
BRIDGESTONE

TIRE,FR(80/90 21 48H)

€ 355.50

14

5520038A60
ref: 14

TUBE,INNER

€ 32.50

15

5526138A60
ref: 15

PROTECTOR,WHEEL,INNER

€ 5.00

16-1

5541238A00
ref: 16-1

BALANCER,WHEEL

€ 6.50

16-2

5541338A00
ref: 16-2

BALANCER,WHEEL (30G)

€ 8.00
