CAM CHAIN

VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

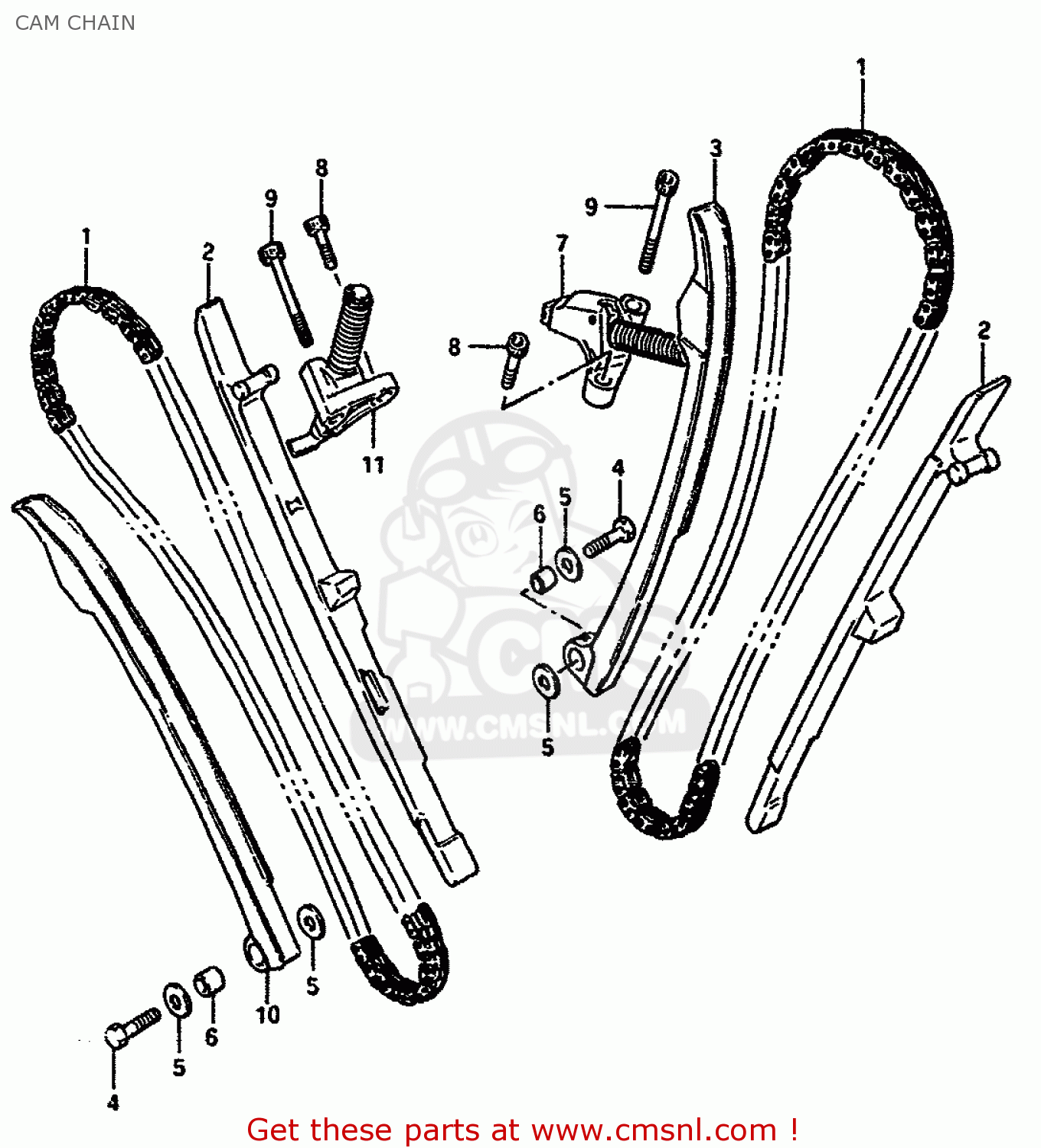

Cam chain diagram VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

1-1

1276038A00
ref: 1-1
MODEL F/G/H/J-12760-

CHAIN,CAMSHAFT DRIVE

€ 155.00

1-2

1276038A10
ref: 1-2
MODEL K/L/M

CHAIN,CAMSHAFT DRIVE

€ 155.00

1277138A02
ref: 2

GUIDE,CAM CHAIN

€ 39.00

1281138A01
ref: 3

TENSIONER,FR CAM CHAIN

€ 39.00

0910006129
ref: 4

BOLT(6X26)

€ 2.00

0821106182
ref: 5

WASHER

€ 2.00

0918006148
ref: 6

SPACER(6X11X11)

€ 3.50

1283138A00
ref: 7

ADJUSTER ASSEMBLY,FRONT TENSIONER

€ 70.50

0711006205
ref: 8

BOLT

€ 3.00

0711006455
ref: 9

BOLT

€ 2.50

1281638A01
ref: 10

TENSIONER,RR CAM CHAIN

€ 28.00

1283238A00
ref: 11

ADJUSTER ASSEMBLY,REAR TENSIONER

€ 99.00
