CLUTCH
VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

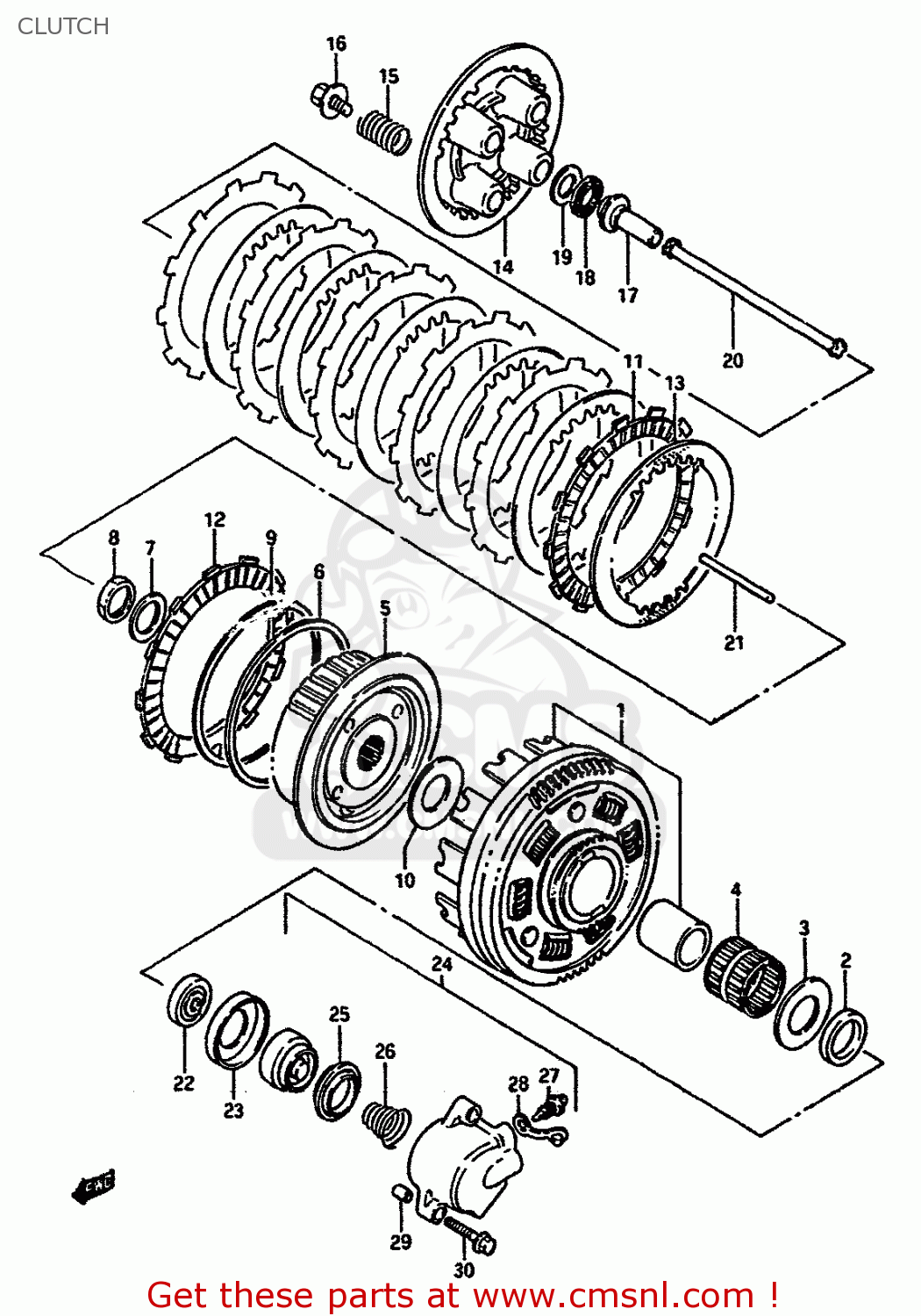

Clutch diagram VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)
CLUTCH VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
1
2120038812
ref: 1
-21200-38811
GEAR ASSY,PRI DRIVEN(NT:71)
€ 341.00
2
0918025077
ref: 2
SPACER(25X38X6.5)
€ 7.50
3
0916025055
ref: 3
WASHER(25X50X2.5)
€ 9.50
4
0926335017
ref: 4
BEARING(35X40X35.8)
€ 36.50
5
2141038A00
ref: 5
HUB COMP,CLUTCH SLEEVE
€ 95.50
6
2147137400
ref: 6
SEAT,WAVE WASHER(T:1.4)
€ 8.00
7
0916422006
ref: 7
WASHER
€ 5.00
8
0914022008
ref: 8
NUT
€ 4.50
9
0916400004
ref: 9
WASHER
€ 9.00
10
0916025055
ref: 10
WASHER(25X50X2.5)
€ 9.50
11
2144137400
ref: 11
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
12
2144237401
ref: 12
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
€ 11.50
13
2145114A00
ref: 13
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
€ 6.50
14
2146238200
ref: 14
DISC,CLUTCH PRESSURE
€ 37.00
15
0944020013
ref: 15
SPRING
€ 5.00
16
0911606016
ref: 16
BOLT
€ 2.50
17
2312107A00
ref: 17
PIECE,CLUTCH PUSH
€ 18.50
18
0926315003
ref: 18
BEARING(15X28X2)
€ 7.00
19
0916015015
ref: 19
WASHER
€ 4.00
20
2311027A00
ref: 20
ROD,CLUTCH
€ 17.00
21
2311138A00
ref: 21
ROD,CLUTCH PUSH,L
€ 9.50
22
0928506017
ref: 22
SEAL,OIL(6X34X11)
€ 11.00
23
2311738A00
ref: 23
RETAINER,CL PUSH ROD OIL SEAL
€ 6.00
24
2316038A00
ref: 24
CYLINDER,CLUTCH RELEASE
€ 122.50
25
2316305A00
ref: 25
CUP,CLUTCH CYLINDER
€ 7.50
26
2316405A00
ref: 26
SPRING,CLUTCH CYLINDER
€ 3.50
27
5912101A00
ref: 27
BLEEDER
€ 8.50
28
5912201A00
ref: 28
CAP,BLEEDER
€ 4.50
29
0421109129
ref: 29
PIN
€ 2.00
30
0151706306
ref: 30
BOLT
€ 2.50
