STEERING STEM (MODEL J/K/L/M)

VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

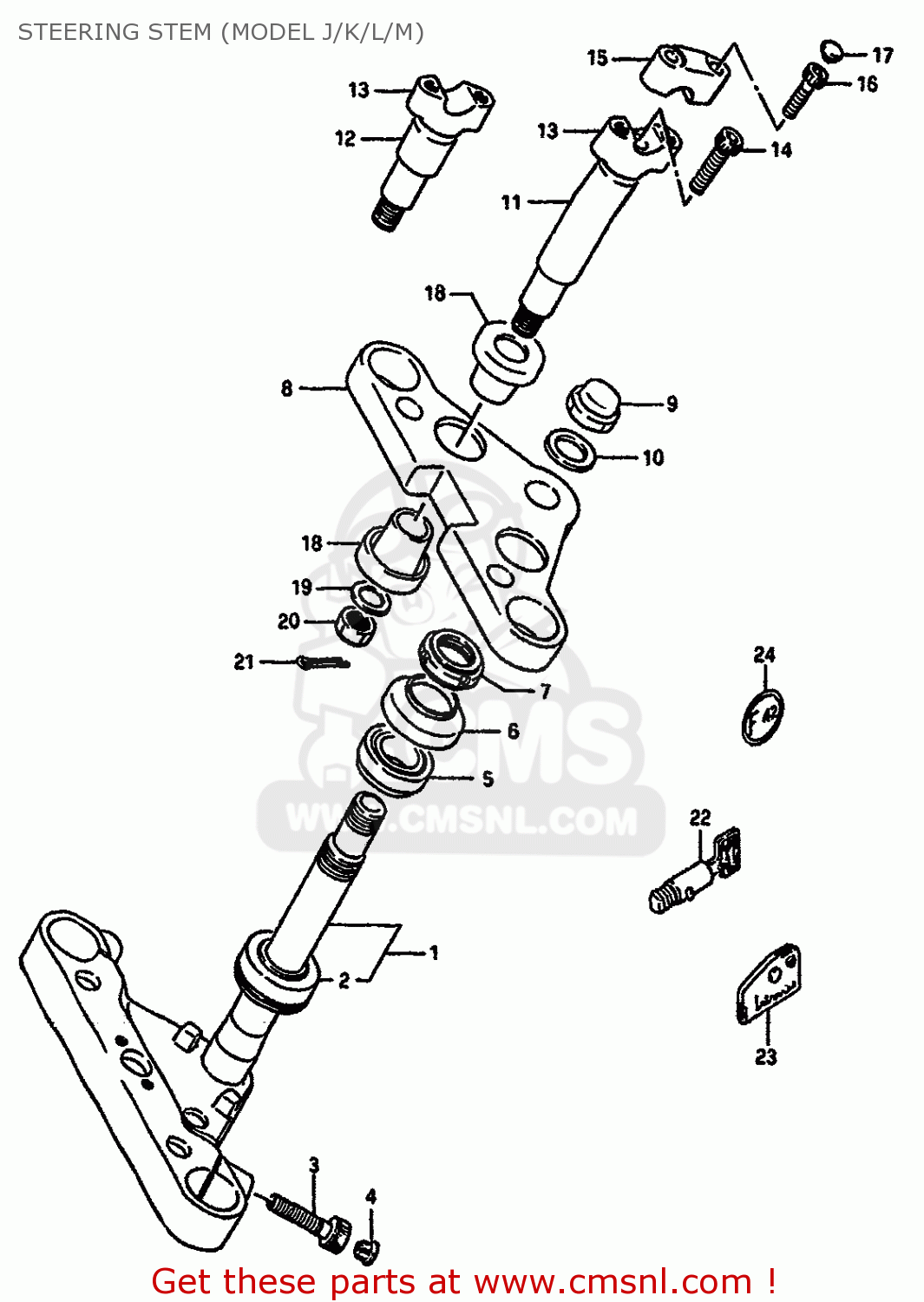

Steering stem (model j/k/l/m) diagram VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

STEERING STEM (MODEL J/K/L/M) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)
STEERING STEM (MODEL J/K/L/M) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)
STEERING STEM (MODEL J/K/L/M) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
1-1
5141039A00
ref: 1-1
STEM,STEERING
€ 594.00
1-2
5141039A20
ref: 1-2
E2,E4,E15,E16,E17,E1
STEM,STEERING
€ 594.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
5135238A00
ref: 3
BOLT,STEERING STEM HEAD
€ 4.50
4
0925008014
ref: 4
CAP(OD:12)
0925008014
€ 3.50
5
0926525008
ref: 5
TAPER,ROLLER BEARING
0926525008
€ 48.50
6
5164349001
ref: 6
DUST SEAL,STEERING,UPPER
5164349001
€ 7.50
7
5163128000
ref: 7
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
8
5131139A00
ref: 8
BRACKET,UPR
5131139A00
€ 446.50
9
5135338A01
ref: 9
NUT,CAP
€ 21.50
10
5135438A01
ref: 10
WASHER
€ 3.00
11
5623138A40
ref: 11
VS750GLFJ/GLFK
STAY,HANDLE
5623138A40
€ 41.50
12
5623138A50
ref: 12
VS750GLPJ/GLPK/GLPL/
STAY,HANDLE
5623138A50
€ 49.50
13
5622138A01
ref: 13
HOLDER,HANDLE LWR
5622138A01
€ 65.00
14
0711010257
ref: 14
BOLT
€ 3.00
15
5621138A01
ref: 15
HOLDER,HANDLE UPR
5621138A01
€ 45.00
16
0711008305
ref: 16
BOLT, REAR (8X30)
0711008305
€ 3.00
17
0925006009
ref: 17
CAP(OD:14.5)
0925006009
€ 3.50
18
5624038A40
ref: 18
CUSHION
5624038A40
€ 31.50
19
5135438A40
ref: 19
WASHER
5135438A40
€ 9.00
20
0915910027
ref: 20
NUT
0915910027
€ 3.00
21
5118839A00
ref: 21
PIN
€ 4.50
22
5190038810
ref: 22
LOCK SET,STEERING
5190038810
€ 168.50
23
5192038A00
ref: 23
CASE,STEERING KEY
5192038A00
€ 10.50
24
5191545000
ref: 24
E17,E77
LABEL,STEERING LOCK
5191545000
€ 1.50
