REAR WHEEL (VS750GLEFH/GLEPH)

VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

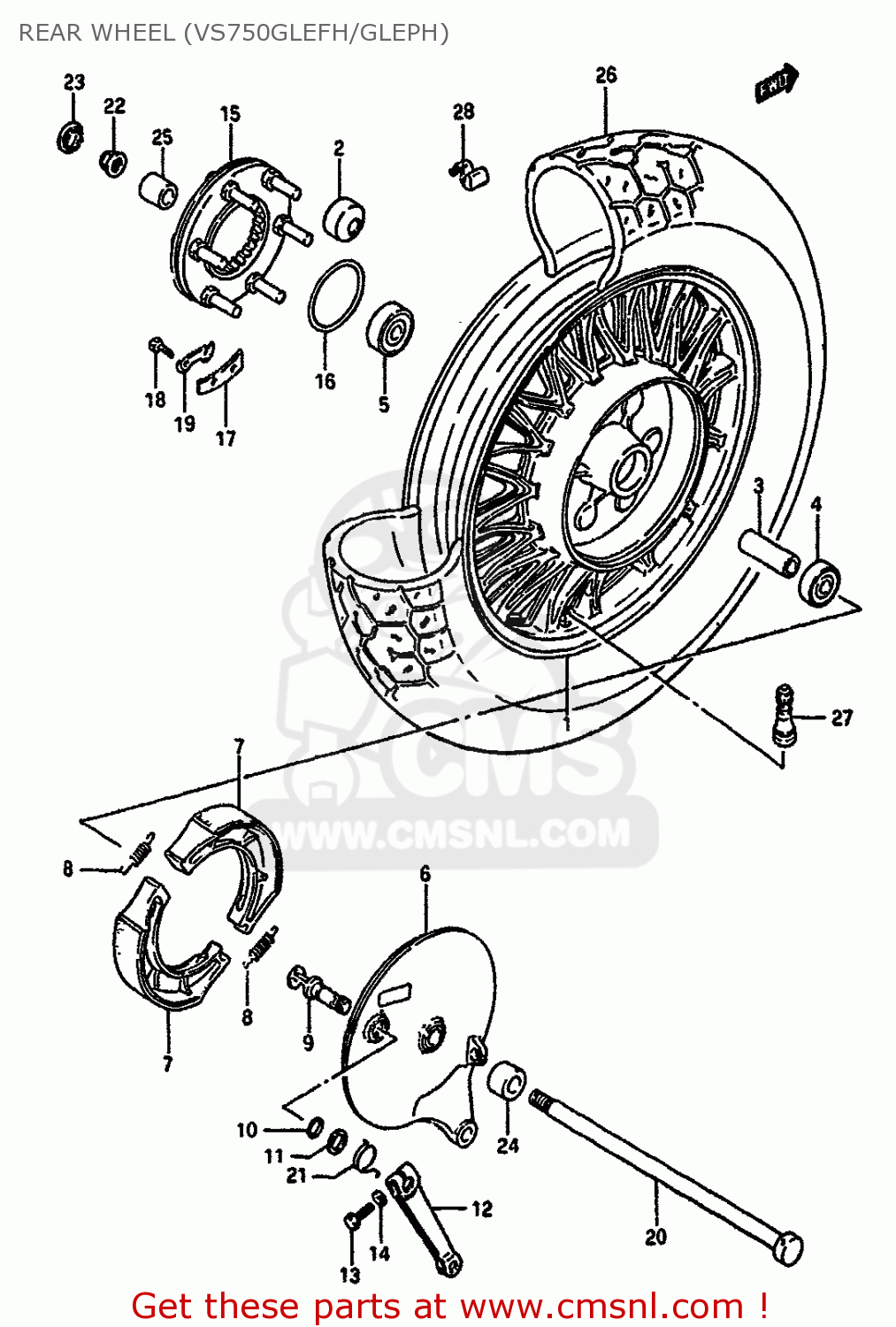

Rear wheel (vs750glefh/gleph) diagram VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

REAR WHEEL (VS750GLEFH/GLEPH) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

REAR WHEEL (VS750GLEFH/GLEPH) VS750GLP 1988 (J) (E04 18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

1

641003883023W
ref: 1
SILVER

WHEEL SET,REAR (3.00-15)

€ 358.50

2

0931912019
ref: 2

BUSH

€ 10.50

3

6473137200
ref: 3

SPACER,REAR HUB BEARING

€ 19.00

4

0813362037
ref: 4

BEARING

€ 24.50

5

0814363037
ref: 5

BEARING

€ 23.00

6

6421038A20
ref: 6

PANEL,REAR BRAKE ANCHOR

€ 253.00

7

6441007A01
ref: 7

SHOE SET,BRAKE (MCA)

€ 56.50

8

5542030000
ref: 8

SPRING,BRAKE SHOE

€ 3.50

9

6444038A00
ref: 9

CAM,RR BRAKE

€ 43.00

10

0928015001
ref: 10

O-RING,BOSS

€ 2.00

11

0916015001
ref: 11

WASHER (15X24X1.6)

€ 2.50

12

6445138A01
ref: 12

LEVER,RR BRAKE CAM

€ 33.00

13

0110706257
ref: 13

BOLT

€ 2.00

14

0832121067
ref: 14

WASHER,LOCK

€ 2.50

15

6468007A01
ref: 15

JOINT ASSEMBLY,REAR HUB DRUM

€ 181.50

16

0928065003
ref: 16

O RING(D:2.1,ID:65)

€ 2.50

17

6467745110
ref: 17

WASHER,THRUST(T:1.6)

€ 2.50

18

0911906049
ref: 18

BOLT(6X16)

€ 1.50

19

0916906030
ref: 19

WASHER

€ 2.00

20

6471138A10
ref: 20

AXLE,REAR

€ 65.50

21

0944833006
ref: 21

SPRING

€ 11.00

22

0831931148
ref: 22

NUT

€ 9.00

23

6479138B00
ref: 23

CAP,RR AXLE,R

€ 83.50

24

6474138A21
ref: 24

SPACER,REAR AXLE,RIGHT

€ 20.00

25

6477234200
ref: 25

SPACER,REAR AXLE,LEFT

€ 14.50

26

6510038A50
ref: 26
BRIDGESTONE

TIRE

€ 151.00

27

4313038A20
ref: 27

VALVE ASSEMBLY,WHEEL RIM,P

€ 0.00

28-1

5541100A00
ref: 28-1

BALANCER,WHEEL (10G)

€ 6.50

28-2

5541200A00
ref: 28-2

BALANCER,WHEEL

€ 7.00

28-3

5541300A00
ref: 28-3

BALANCER,WHEEL

€ 4.00
