CYLINDER

VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

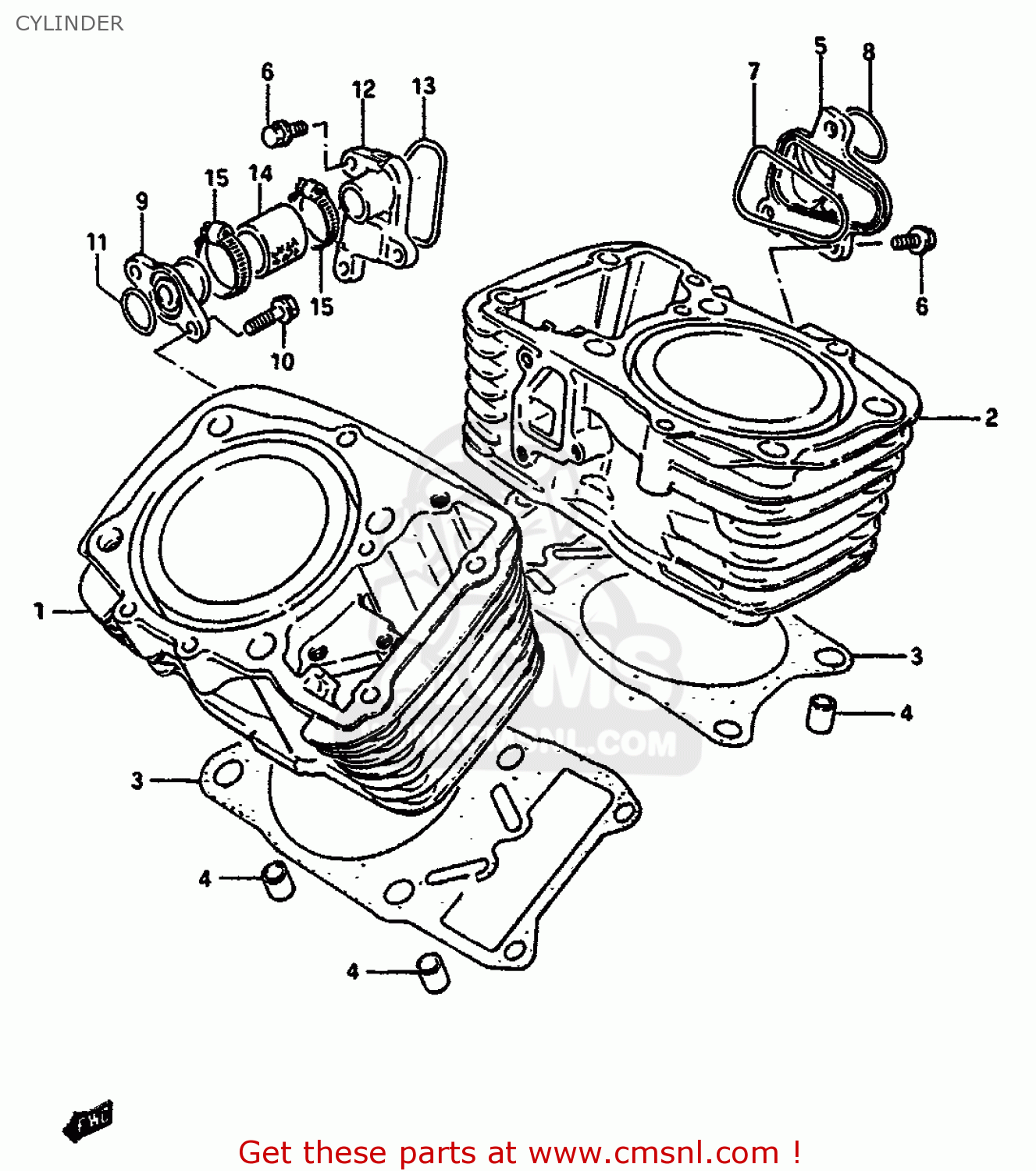

Cylinder diagram VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

CYLINDER VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

CYLINDER VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1121038A12
ref: 1

CYLINDER,FR

€ 503.00

2

1122038A02
ref: 2

CYLINDER,REAR

€ 439.00

3-1

1124138A10
ref: 3-1

GASKET,CYLINDER (MCA)

€ 16.50

3-2

1124138A10H17
ref: 3-2
E17,E77 (SWEDEN), E1

GASKET,CYLINDER (NA)

€ 13.50

4

0920613001
ref: 4

PIN

€ 2.50

5

1123738A01
ref: 5

CHAMBER,WATER,INLET

€ 28.00

6

0154706207
ref: 6

BOLT

€ 2.50

7

1124738A00
ref: 7

O RING,INLET WATER CHAMBER

€ 3.00

8

0928024007
ref: 8

O RING(D:2.3,ID:24.4)

€ 2.00

9

1123538A00
ref: 9

UNION,WATER INLET

€ 16.00

10

0154706167
ref: 10

BOLT

€ 2.00

11

0928016005
ref: 11

O RING(D:2.4,ID:15.8)

€ 1.50

12

1123638A01
ref: 12

CHAMBER,WATER,OUTLET

€ 26.50

13

1124638A00
ref: 13

O RING,OUTLET WATER CHAMBER

€ 4.50

14

1785338A00
ref: 14

HOSE,RADIATOR

€ 17.50

15

0940225502
ref: 15

CLAMP

€ 8.50
