Buy Suzuki VS Parts Online


FRONT WHEEL (VS750GLEFH/GLEPH)

VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

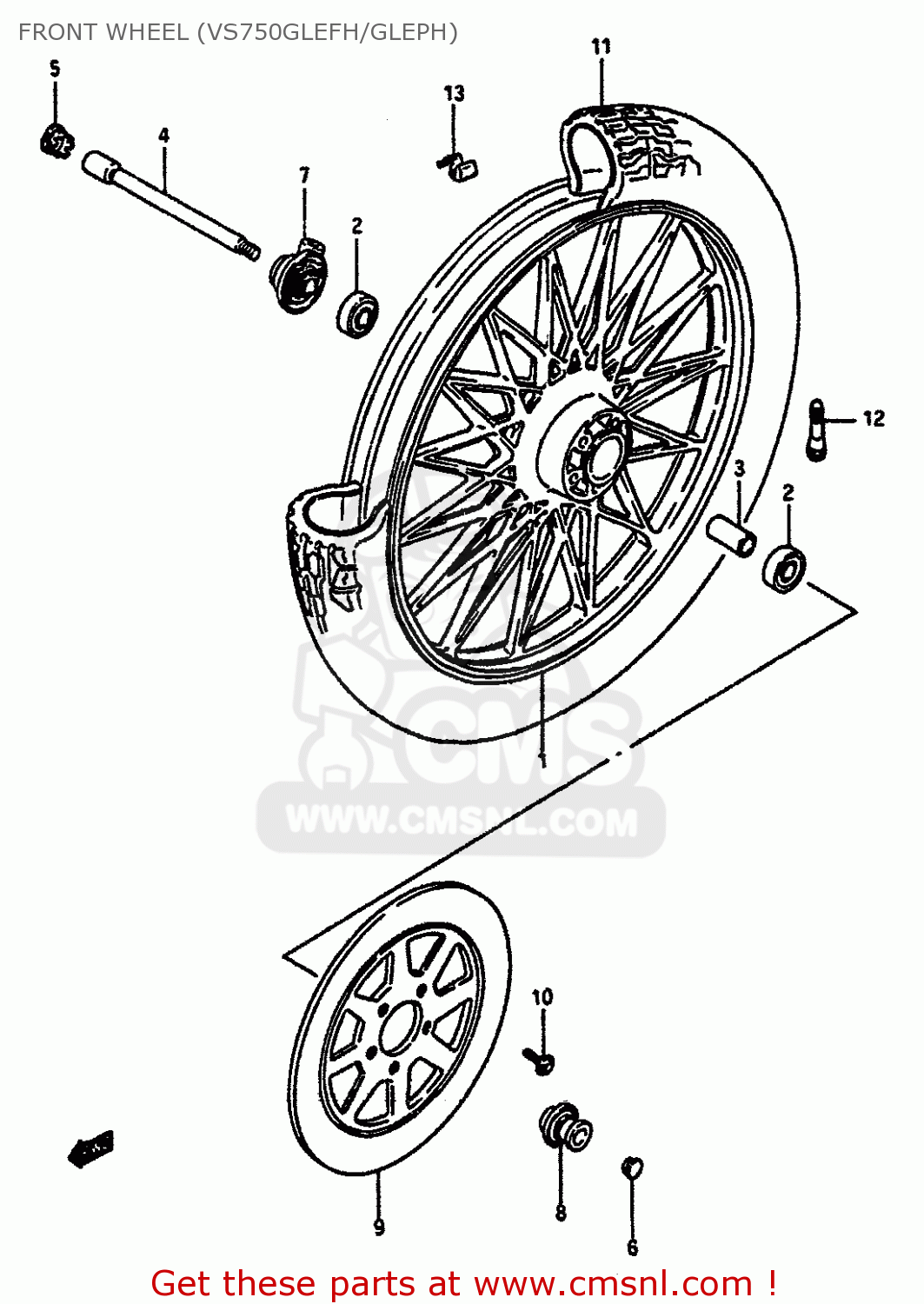

Front wheel (vs750glefh/gleph) diagram VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

FRONT WHEEL (VS750GLEFH/GLEPH) VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
FRONT WHEEL (VS750GLEFH/GLEPH) VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
FRONT WHEEL (VS750GLEFH/GLEPH) VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
5411138A1023W
ref: 1
SILVER
CASTING WHEEL,FRONT 2.15-
€ 650.00
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
0918015004
ref: 3
SPACER(15.3X21.7X65)
0918015004
€ 9.00
4
5471138A10
ref: 4
AXLE,FRONT
€ 37.50
5
5479238B00
ref: 5
CAP,FR AXLE
5479238B00
€ 97.00
6
5479138B01
ref: 6
CAP,FR AXLE
5479138B01
€ 4.50
7
5460049260
ref: 7
BOX ASSY,SPEEDOMETER GEAR
5460049260
€ 219.00
8
5475038A20
ref: 8
SPACER COMP,FRONT AXLE
€ 12.50
9
5921138A10
ref: 9
DISC,FRONT BRAKE
5921138A10
€ 320.50
10
0910608049
ref: 10
BOLT(8X25.5)
0910608049
€ 4.00
11
5510038A50
ref: 11
BRIDGESTONE
TIRE,FRONT
€ 109.00
12
4313075150
ref: 12
VALVE,TIRE
€ 14.50
13-1
5541100A00
ref: 13-1
BALANCER,WHEEL (10G)
€ 6.50
13-2
5541200A00
ref: 13-2
BALANCER,WHEEL
€ 7.00
13-3
5541300A00
ref: 13-3
BALANCER,WHEEL
€ 4.00
