OIL PUMP-FUEL PUMP

VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

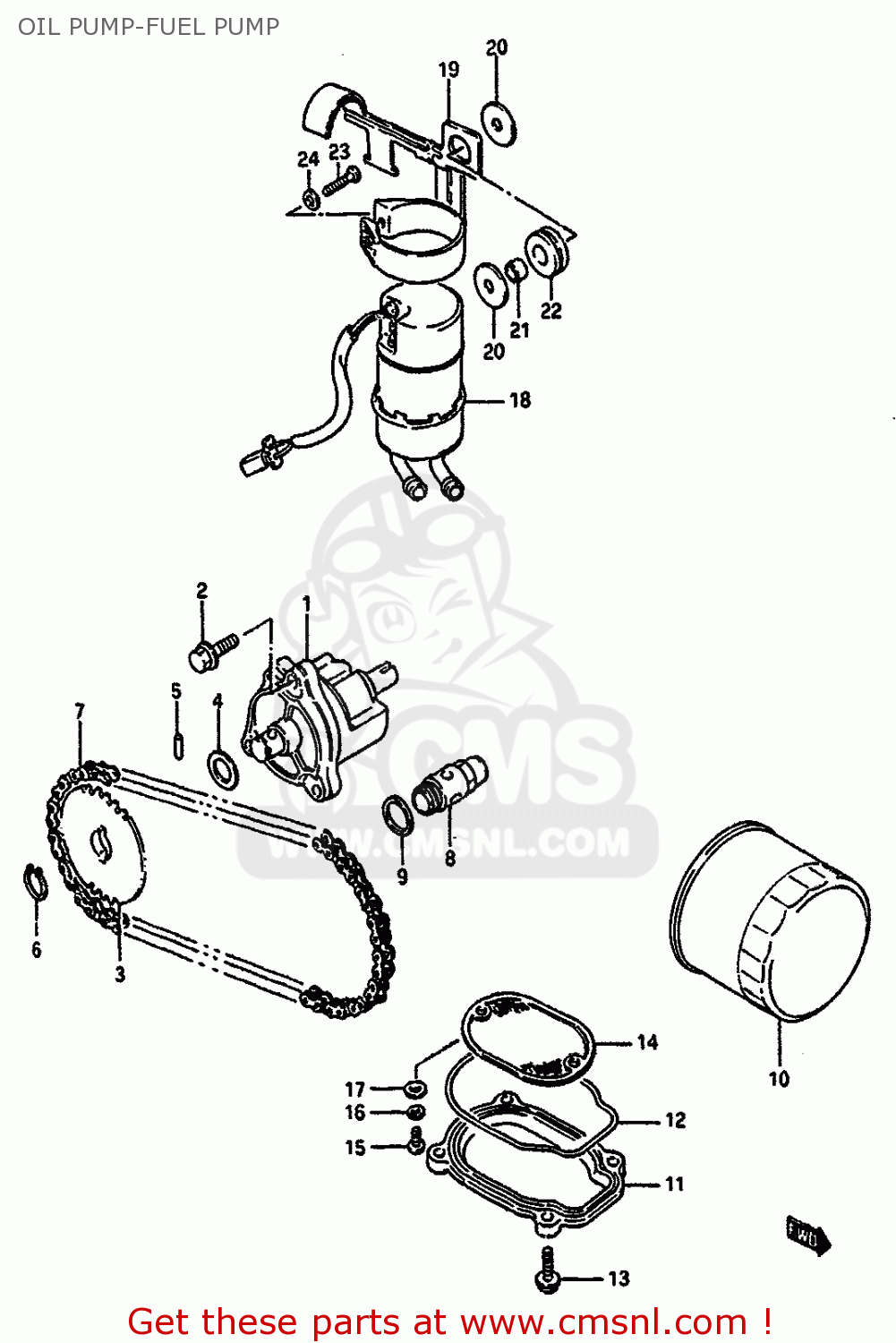

Oil pump-fuel pump diagram VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

OIL PUMP-FUEL PUMP VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

OIL PUMP-FUEL PUMP VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1640038A01
ref: 1

PUMP ASSY,ENGINE OIL

€ 148.00

2

0151706257
ref: 2

BOLT 6X25

€ 2.50

3

1633138A00
ref: 3

SPROCKET,OIL PUMP DRIVEN

€ 21.00

4

0822112205
ref: 4

SHIM

€ 1.50

5

0926105006
ref: 5

PIN(5X18)

€ 1.50

6

0833131128
ref: 6

CIRCLIP

€ 2.00

7

1631038A00
ref: 7

CHAIN,OIL PUMP DRIVE

€ 19.50

8

1644024A01
ref: 8

VALVE ASSY,OIL RELIEF

€ 52.00

9

0916816002
ref: 9

GASKET(16X22X2) (NAS)

€ 2.00

10-1

1651005A00
ref: 10-1
MODEL F/G

FILTER ASSY,ENGINE OIL

€ 8.50

10-2

1651006B01
ref: 10-2
MODEL H/J/K/L/M-1651

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

11

1652338A00
ref: 11

CAP,OIL STRAINER

€ 19.50

12

1652838A00
ref: 12

O RING,OIL STRAINER CAP

€ 8.00

13

0151706207
ref: 13

BOLT 6X20

€ 2.50

14

1652038A00
ref: 14

STRAINER,ENGINE OIL

€ 7.50

15

0211205126
ref: 15

SCREW 5X12

€ 1.50

16

0832121056
ref: 16

LOCK WASHER

€ 3.00

17

0832221056
ref: 17

WASHER

€ 2.50

18-1

1510038A00
ref: 18-1
MODEL F/G

PUMP ASSY,FUEL

€ 238.50

18-2

1510038A10
ref: 18-2
MODEL H/J/K/L/M

PUMP ASSY,FUEL

€ 364.50

19-1

1511038A02
ref: 19-1
MODEL F/G

BRACKET,FUEL PUMP

€ 4.00

19-2

1511038A10
ref: 19-2
MODEL H/J/K/L/M

BRACKET,FUEL PUMP

€ 13.00

20

0916006004
ref: 20

WASHER (6.5X24X1.6)

€ 1.50

21

0918006082
ref: 21

SPACER(6.5X10.5X6.5)

€ 2.50

22

0932010014
ref: 22

CUSHION

€ 4.00

23

0211204208
ref: 23

SCREW

€ 1.00

24

0832221047
ref: 24

WASHER 4MM

€ 2.00
