FRAME

VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

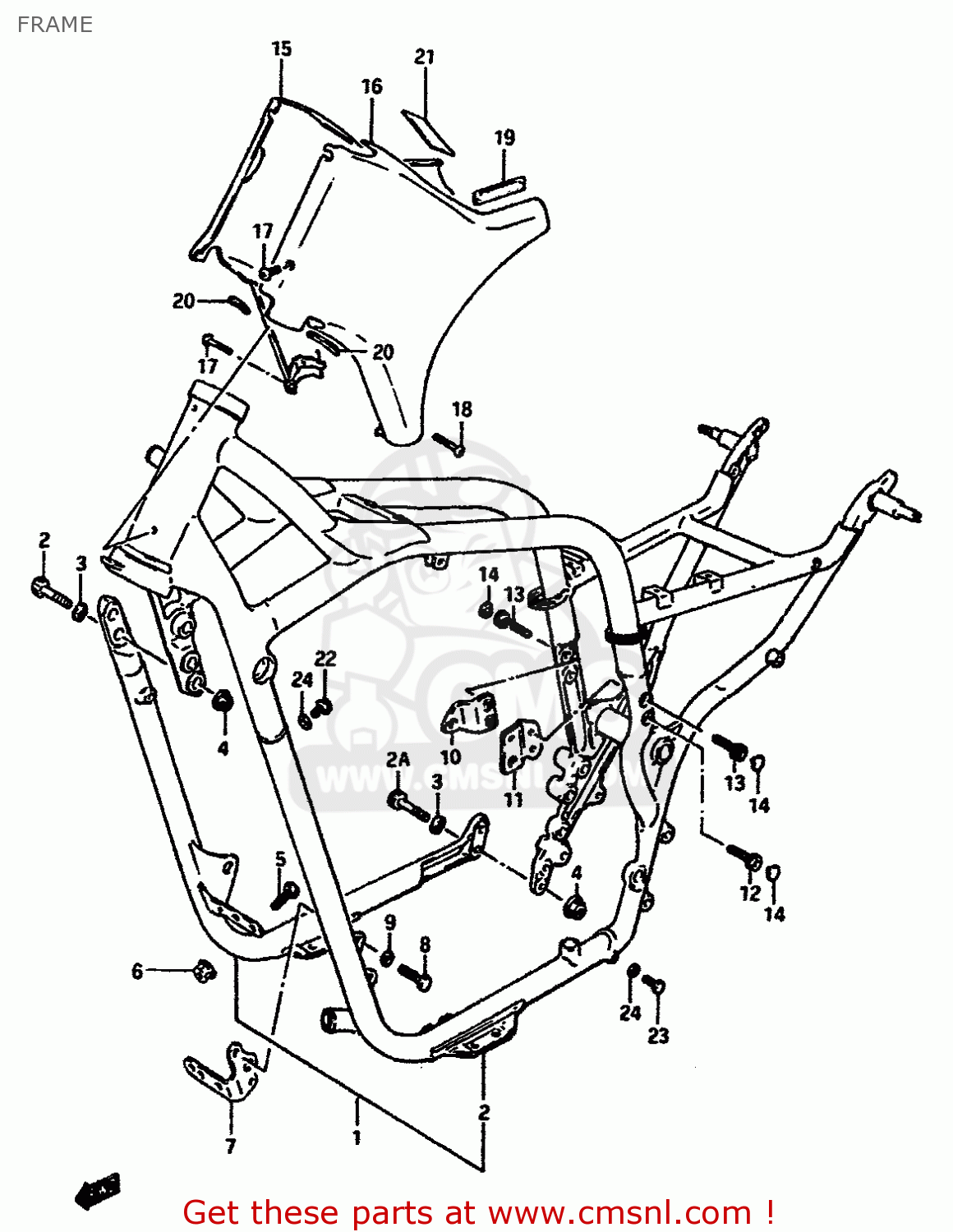

Frame diagram VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

FRAME VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
FRAME VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
FRAME VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
4110038810240
ref: 1-1
MODEL F
FRAME SET (MAROON)
€ 0.00
1-2
4110038850019
ref: 1-2
MODEL G/H
FRAME SET (BLACK)
€ 1,399.50
1-3
411003885024D
ref: 1-3
MODEL G
FRAME SET (MAROON)
€ 1,399.50
1-4
411003885024V
ref: 1-4
MODEL G/H
FRAME SET (BLUE)
€ 1,399.50
1-5
411003885033D
ref: 1-5
MODEL H
FRAME SET (MAROON)
€ 1,399.50
1-6
411003984020U
ref: 1-6
MODEL J/K/L
FRAME SET (MAROON)
€ 1,210.50
1-7
411003984033J
ref: 1-7
MODEL J/K/L
FRAME SET (BLACK)
€ 1,210.50
1-8
411003984014W
ref: 1-8
MODEL M
FRAME SET (BLUE)
€ 2.00
1-9
411003984019A
ref: 1-9
MODEL M
FRAME SET (RED)
€ 2.00
1-10
411003985020U
ref: 1-10
MODEL J E77
FRAME SET (MAROON)
€ 1,210.50
1-11
411003985033J
ref: 1-11
MODEL J E77
FRAME SET (BLACK)
€ 1,210.50
1-12
411003986020U
ref: 1-12
MODEL J E75,MODEL K/
FRAME SET (MAROON)
€ 2.00
1-13
411003986033J
ref: 1-13
MODEL J E75,MODEL K/
FRAME SET (BLACK)
€ 2.00
1-14
411003986014W
ref: 1-14
MODEL M E2
FRAME SET (BLUE)
€ 2.00
1-15
411003986019A
ref: 1-15
MODEL M E2
FRAME SET (RED)
€ 2.00
2-1
4114038A0024D
ref: 2-1
MODEL F/G
TUBE,FRAME
€ 0.00
2-2
4114038A00019
ref: 2-2
MODEL G/H
TUBE,FRAME
€ 0.00
2-3
4114038A0024V
ref: 2-3
MODEL G/H
TUBE,FRAME
€ 0.00
2-4
4114038A0033D
ref: 2-4
MODEL H
TUBE,FRAME
€ 0.00
2-5
4114038A0020U
ref: 2-5
MODEL J/K/L
TUBE,DOWN,LOWER,RIGHT (MAROON)
€ 0.00
2-6
4114038A0033J
ref: 2-6
MODEL J/K/L
TUBE,FRAME
€ 0.00
2-7
4114038A0014W
ref: 2-7
MODEL M
TUBE COMP,FRAME DOWN,LEFT
€ 167.50
2-8
4114038A0019A
ref: 2-8
MODEL M
TUBE COMP,FRAME DOWN,LEFT
€ 157.00
2A
0910610019
ref: 2A
BOLT(10X33)
0910610019
€ 4.00
3
0916410005
ref: 3
WASHER
0916410005
€ 6.50
4
0831931105
ref: 4
NUT 10MM
€ 3.00
5
0151708205
ref: 5
BOLT
€ 3.00
6
0831931085
ref: 6
NUT
€ 2.50
7-1
4192038A00019
ref: 7-1
MODEL G/H
PLATE,ENGINE MOUNT NO.1,L
4192038A00019
€ 11.00
7-2
4192038A0024D
ref: 7-2
MODEL F/G
PLATE,ENGINE MOUNTING
€ 11.00
7-3
4192038A0024V
ref: 7-3
MODEL G/H
PLATE,ENGINE MOUNTING
€ 11.00
7-4
4192038A0033D
ref: 7-4
MODEL H
PLATE,ENGINE MOUNTING
€ 11.00
7-5
4192038A0020U
ref: 7-5
MODEL J/K/L
PLATE,ENGINE MOUNTING
€ 11.00
7-6
4192038A0033J
ref: 7-6
MODEL J/K/L
PLATE,ENGINE MOUNTING
€ 11.00
7-7
4192038A0014W
ref: 7-7
MODEL M
PLATE,ENGINE MOUNTING
€ 11.00
7-8
4192038A0019A
ref: 7-8
MODEL M
PLATE,ENGINE MOUNTING
€ 11.00
8-1
0110708165
ref: 8-1
MODEL F/G/H/J
BOLT
€ 2.00
8-2
0113708165
ref: 8-2
MODEL K/L/M
BOLT
€ 2.00
9
0832121084
ref: 9
MODEL F/G/H/J
WASHER,LOCK,8.
0832121084
€ 2.50
10-1
4195038A0024D
ref: 10-1
MODEL F
PLATE,ENGINE MOUNTING
€ 0.00
10-2
4195038A10019
ref: 10-2
MODEL G/H
PLATE,ENGINE MOUNTING
€ 32.50
10-3
4195038A1024D
ref: 10-3
MODEL G
PLATE,ENGINE MOUNTING
€ 0.00
10-4
4195038A1024V
ref: 10-4
MODEL G/H
PLATE,ENGINE MOUNTING
€ 32.50
10-5
4195038A1033D
ref: 10-5
MODEL H
PLATE,ENGINE MOUNTING
€ 32.50
10-6
4195038A1020U
ref: 10-6
MODEL J/K/L
PLATE,ENGINE MOUNTING
€ 32.50
10-7
4195038A1033J
ref: 10-7
MODEL J/K/L
PLATE,ENGINE MOUNTING
€ 32.50
10-8
4195038A1014W
ref: 10-8
MODEL M
PLATE,ENGINE MOUNTING
€ 32.50
10-9
4195038A1019A
ref: 10-9
MODEL M
PLATE,ENGINE MOUNTING
€ 32.50
11-1
4196038A0024D
ref: 11-1
MODEL F
PLATE,ENGINE MOUNTING
€ 0.00
11-2
4196038A10019
ref: 11-2
MODEL G/H
PLATE,ENGINE MOUNT NO.3,L
4196038A10019
€ 26.50
11-3
4196038A1024D
ref: 11-3
MODEL G
PLATE,ENGINE MOUNTING
€ 0.00
11-4
4196038A1024V
ref: 11-4
MODEL G/H
PLATE,ENGINE MOUNTING
€ 26.50
11-5
4196038A1033D
ref: 11-5
MODEL H
PLATE,ENGINE MOUNTING
€ 26.50
11-6
4196038A1020U
ref: 11-6
MODEL J/K/L
PLATE,ENGINE MOUNTING
€ 26.50
11-7
4196038A1033J
ref: 11-7
MODEL J/K/L
PLATE,MOUNTING NO.3,LEFT (BLACK)
€ 26.50
11-8
4196038A1014W
ref: 11-8
MODEL M
PLATE,ENGINE MOUNTING
€ 26.50
11-9
4196038A1019A
ref: 11-9
MODEL M
PLATE,ENGINE MOUNTING NO
€ 26.50
12
0910608063
ref: 12
BOLT 8X30
€ 3.00
13
0910608070
ref: 13
BOLT(8X30)
0910608070
€ 5.50
14
0925006004
ref: 14
CAP(OD:14.5)
0925006004
€ 1.50
15-1
4735038A0013Z
ref: 15-1
MODEL G/H
COVER,FRAME HEAD,RIGHT
€ 269.00
15-2
4735038A0024D
ref: 15-2
MODEL F/G
COVER,FRAME HEAD,RIGHT
€ 269.00
15-3
4735038A0024V
ref: 15-3
MODEL G/H
COVER,FRAME HEAD,RIGHT
€ 269.00
15-4
4735038A0033D
ref: 15-4
MODEL H
COVER,FRAME HEAD,RIGHT
€ 269.00
15-5
4735038A0020U
ref: 15-5
MODEL J/K/L
COVER,FRAME HEAD,RIGHT
€ 269.00
15-6
4735038A0033J
ref: 15-6
MODEL J/K/L
COVER,FRAME HEAD,RIGHT
€ 269.00
15-7
4735038A0014W
ref: 15-7
MODEL M
COVER COMP,FRAME HEAD
€ 269.00
15-8
4735038A0019A
ref: 15-8
MODEL M
COVER,FRAME HEAD,RIGHT
€ 269.00
16-1
4736038A0024D
ref: 16-1
MODEL F/G
COVER,FRAME HEAD,LEFT
€ 267.00
16-2
4736038A0013Z
ref: 16-2
MODEL G/H
COVER,FRAME HEAD,LEFT
€ 267.00
16-3
4736038A0024V
ref: 16-3
MODEL G/H
COVER,FRAME HEAD,LEFT
€ 267.00
16-4
4736038A0033D
ref: 16-4
MODEL H
COVER,FRAME HEAD,LEFT
€ 267.00
16-5
4736038A0020U
ref: 16-5
MODEL J/K/L
COVER,FRAME HEAD,LEFT
€ 267.00
16-6
4736038A0033J
ref: 16-6
MODEL J/K/L
COVER,FRAME HEAD,LEFT
€ 267.00
16-7
4736038A0014W
ref: 16-7
MODEL M
COVER COMP,FRAME HEAD
€ 267.00
16-8
4736038A0019A
ref: 16-8
MODEL M
COVER,FRAME HEAD,LEFT
€ 267.00
17
0214205104
ref: 17
SCREW 5X10
0214205104
€ 2.50
18
0211204254
ref: 18
SCREW
€ 2.00
19
3365238A10
ref: 19
PROTECTOR(20X90)X2
€ 4.50
20
6824138A10
ref: 20
MOLDING,FUEL TANK
6824138A10
€ 6.00
21
4735838A00
ref: 21
TAPE,FRAME HEAD COVER
4735838A00
€ 7.00
22
0936006015
ref: 22
UNION
0936006015
€ 3.00
23
0151706105
ref: 23
BOLT
€ 2.50
24
0916806004
ref: 24
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
