MUFFLER

VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

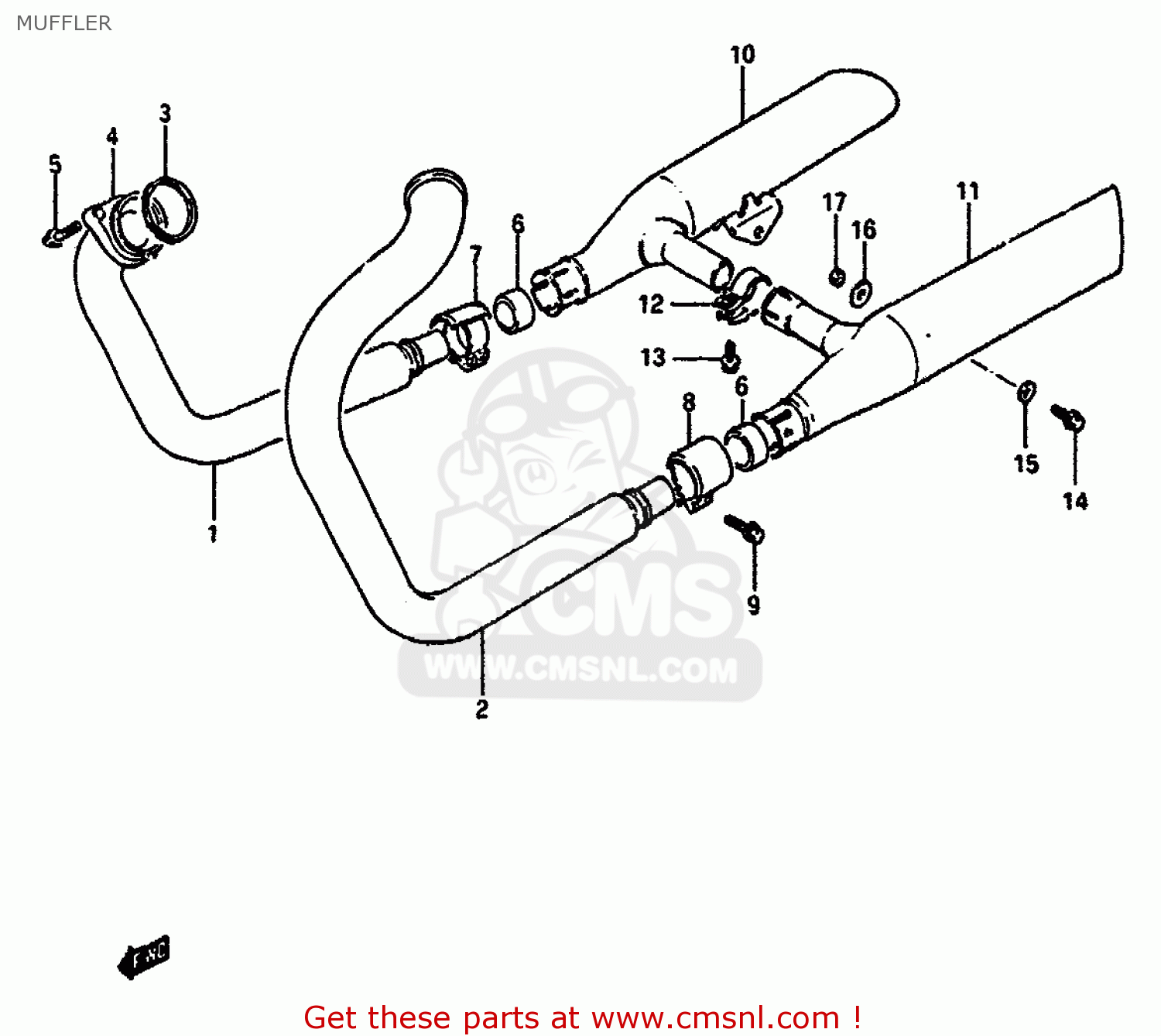

Muffler diagram VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

MUFFLER VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
MUFFLER VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
MUFFLER VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1415038A00
ref: 1-1
PIPE,EXHAUST
€ 193.50
1-2
1415038A20
ref: 1-2
MODEL H/J/K/L E18
PIPE,EXHAUST RH
€ 218.50
2-1
1416038A01
ref: 2-1
PIPE,EXHAUST
€ 202.00
2-2
1416038A20
ref: 2-2
MODEL H/J/K/L E18
PIPE,EXHAUST LH
€ 218.50
3-1
1418138A00
ref: 3-1
GASKET,EXHAUST PIPE (NAS)
1418138A00
€ 6.50
3-2
1418145C00
ref: 3-2
E18
GASKET,EXHAUST PIPE (NAS)
1418145C00
€ 6.50
3-3
1418138A00H17
ref: 3-3
E17,E77 (SWEDEN)
GASKET,EXHAUST PIPE (NA)
€ 6.50
4
1418238A01
ref: 4
CLAMP,EXHAUST PIPE
€ 21.00
5
0910408026
ref: 5
BOLT(8X35)
0910408026
€ 4.00
6-1
1477105A01
ref: 6-1
CONNECTOR,MUFFLER
1477105A01
€ 21.50
6-2
1477105A01H17
ref: 6-2
E17,E18,E77 (SWEDEN)
CONNECTOR,MUFFLER
1477105A01H17
€ 21.50
7
1445938A00
ref: 7
CLAMP,MUFFLER CONNECTOR,R
1445938A00
€ 10.00
8
1446938A00
ref: 8
CLAMP,MUFFLER CONNECTOR,L
1446938A00
€ 10.00
9
0154706307
ref: 9
BOLT
0154706307
€ 2.50
10-1
1431038A01
ref: 10-1
MODEL F
MUFFLER,RH
€ 315.50
10-2
1431038A51
ref: 10-2
MODEL G/H/J/K/L/M
MUFFLER,RH
€ 315.50
10-3
1431038A11
ref: 10-3
MODEL F/G/H E15,E17,
BODY,MUFFLER RH
1431038A11
€ 351.50
10-4
1431038A61
ref: 10-4
E18
BODY,MUFFLER RH
€ 341.00
11-1
1434038A01
ref: 11-1
MODEL F
MUFFLER,LH
€ 352.00
11-2
1434038A51
ref: 11-2
MODEL G/H/J/K/L/M
MUFFLER,LH
€ 352.00
11-3
1434038A11
ref: 11-3
MODEL F/G/H E15,E17,
MUFFLER,LH
€ 307.00
11-4
1434038A61
ref: 11-4
E18
BODY,MUFFLER,L
€ 341.00
12
1477238B00
ref: 12
CLAMP,EXHAUST COUPLER
1477238B00
€ 6.00
13
0151706257
ref: 13
BOLT 6X25
€ 2.50
14
0110708307
ref: 14
BOLT
€ 2.50
15
0832211088
ref: 15
WASHER
0832211088
€ 2.00
16
0916008004
ref: 16
WASHER
0916008004
€ 2.50
17
0831626088
ref: 17
NUT
0831626088
€ 3.00
