CYLINDER HEAD (FRONT)

VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

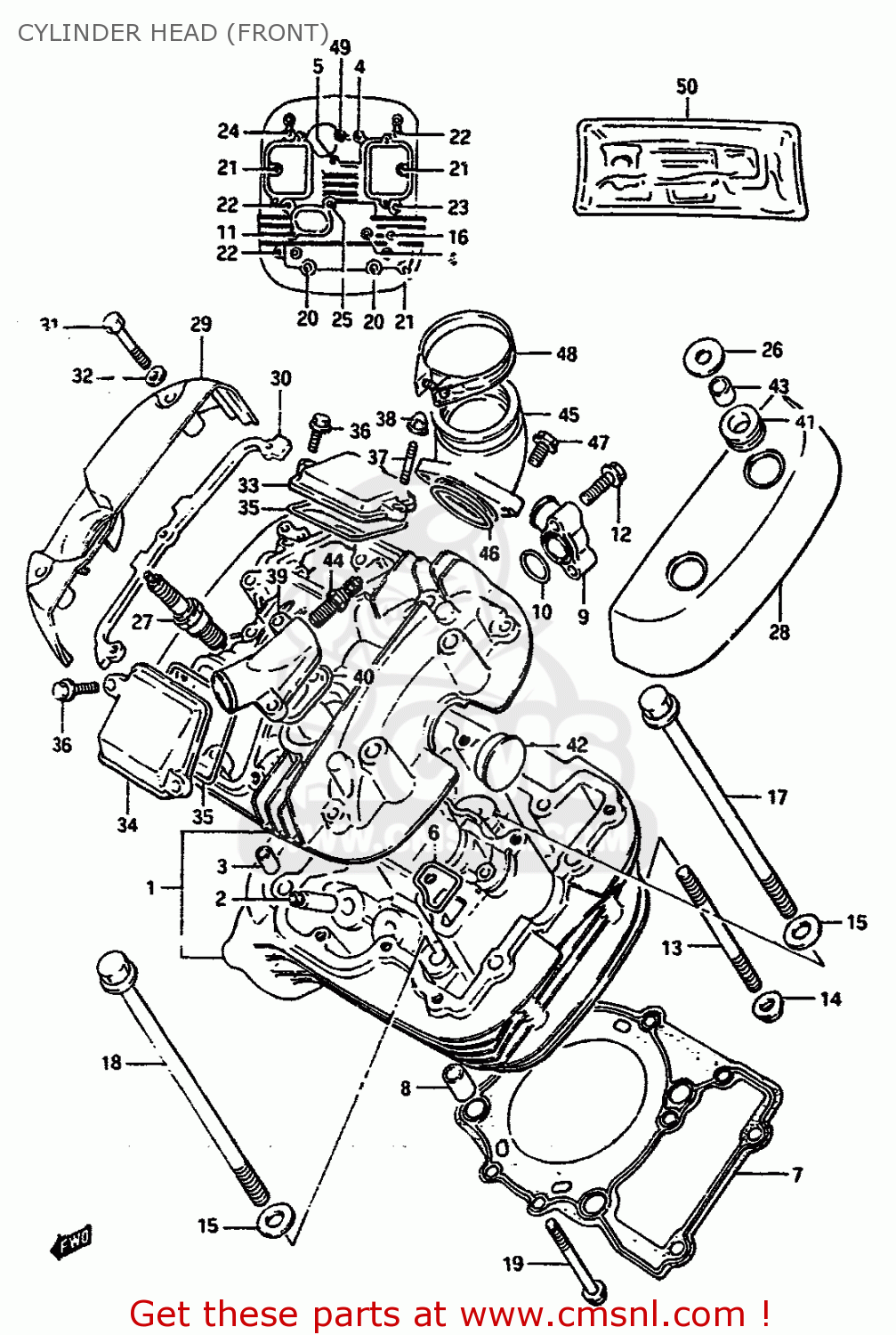

Cylinder head (front) diagram VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

CYLINDER HEAD (FRONT) VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
CYLINDER HEAD (FRONT) VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
CYLINDER HEAD (FRONT) VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1110138A00
ref: 1-1
~E.NO.104053-11101-3
HEAD ASSEMBLY,CYLINDER,FRONT
€ 802.00
1-2
1110138A01
ref: 1-2
E.NO.104054~
HEAD ASSEMBLY,CYLINDER,FRONT
€ 802.00
2
1111538A71
ref: 2
GUIDE,VALVE
1111538A71
€ 18.50
3
0920611011
ref: 3
PIN(11X14)
0920611011
€ 6.00
4
0910306101
ref: 4
BOLT(6X50)
0910306101
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
0910306102
€ 2.50
6
1112338A00
ref: 6
GASKET,CYLINDER HEAD WATER (NAS)
1112338A00
€ 2.50
7
1114138A01
ref: 7
GASKET,CYLINDER HEAD FR (MCA)
1114138A01
€ 51.50
8
0920613001
ref: 8
PIN
0920613001
€ 2.50
9
1116938A00
ref: 9
UNION,CYLINDER HEAD WATER
€ 28.50
10
0928018004
ref: 10
O RING(D:2.4,ID:17.8)
0928018004
€ 5.50
11
0151706207
ref: 11
BOLT 6X20
€ 2.50
12
0154706257
ref: 12
BOLT
0154706257
€ 2.50
13
0910808144
ref: 13
BOLT,STUD
0910808144
€ 4.50
14
0831616088
ref: 14
NUT
0831616088
€ 2.50
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
0916010039
€ 2.50
16
0910308040
ref: 16
BOLT(8X140)
0910308040
€ 4.00
17
0910310133
ref: 17
BOLT(10X155)
0910310133
€ 7.50
18
0910310134
ref: 18
BOLT(10X165)
0910310134
€ 7.50
19
0151706408
ref: 19
BOLT
0151706408
€ 2.50
20
0910308180
ref: 20
BOLT(8X245)
0910308180
€ 13.00
21
0151706257
ref: 21
BOLT 6X25
€ 2.50
22
0151706307
ref: 22
BOLT
0151706307
€ 2.00
23
0712006308
ref: 23
BOLT
€ 2.50
24
0151706408
ref: 24
BOLT
0151706408
€ 2.50
25
0910306102
ref: 25
BOLT(6X55)
0910306102
€ 2.50
26
0916008098
ref: 26
WASHER (8.2X24X1.6)
€ 2.00
27-1
0948200334
ref: 27-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
27-2
0948200335111
ref: 27-2
SPARK PLUG X24EPR-U9
€ 4.00
27-3
0948200354
ref: 27-3
OPT
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
27-4
0948200355111
ref: 27-4
OPT
SPARK PLUG X22EPR-U9
€ 4.00
27-5
0948200330
ref: 27-5
OPT
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
27-6
0948200331111
ref: 27-6
OPT
SPARK PLUG X27EPR-U9
0948200331111
€ 4.00
28
1117138A02
ref: 28
CAP,CYLINDER HEAD COVER FR,L
1117138A02
€ 72.50
29
1117238A03
ref: 29
CAP,CYLINDER HEAD COVER FR,R
1117238A03
€ 98.50
30
1127238A00
ref: 30
CUSHION,FR,R CAP
1127238A00
€ 10.50
31
0120406407
ref: 31
BOLT
0120406407
€ 2.00
32
0832221067
ref: 32
WASHER
0832221067
€ 2.00
33
1117538A01
ref: 33
CAP,INSPECTION
€ 14.50
34
1117638A01
ref: 34
CAP,INSPECTION,EXHAUST
€ 15.00
35
1117738A00
ref: 35
GASKET,INSPECTION CAP (NAS)
1117738A00
€ 5.00
36
0154706207
ref: 36
BOLT
0154706207
€ 2.50
37
0142106168
ref: 37
STUD 6X16
0142106168
€ 2.00
38
0831321067
ref: 38
NUT
€ 2.00
39
1118138A01
ref: 39
UNION
€ 34.50
40
1118238A00
ref: 40
GASKET,WATER OUTLET UNION (NAS)
1118238A00
€ 2.00
41
0932013015
ref: 41
CUSHION
0932013015
€ 3.00
42
0924130006
ref: 42
PLUG
€ 6.50
43
0930108007
ref: 43
BUSH
0930108007
€ 4.00
44
3485005A10
ref: 44
GAUGE ASSY,WATER TEMP
3485005A10
€ 104.00
45
1311038A03
ref: 45
PIPE,INTAKE
€ 89.00
46
0928040003
ref: 46
O-RING (D:2.4 ID:39.7)
0928040003
€ 3.50
47
0151706164
ref: 47
BOLT
€ 2.50
48
1317005A00
ref: 48
CLAMP,PIPE
€ 9.00
49
0151706307
ref: 49
E.NO.104054~
BOLT
0151706307
€ 2.00
50-1
1140038842
ref: 50-1
OPT
GASKET SET (MCA)
1140038842
€ 202.50
50-2
1140038842H17
ref: 50-2
E17,E77 (SWEDEN), E1
GASKET SET
€ 202.50
