REAR SWINGING ARM (MODEL H/J/K/L/M)

VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

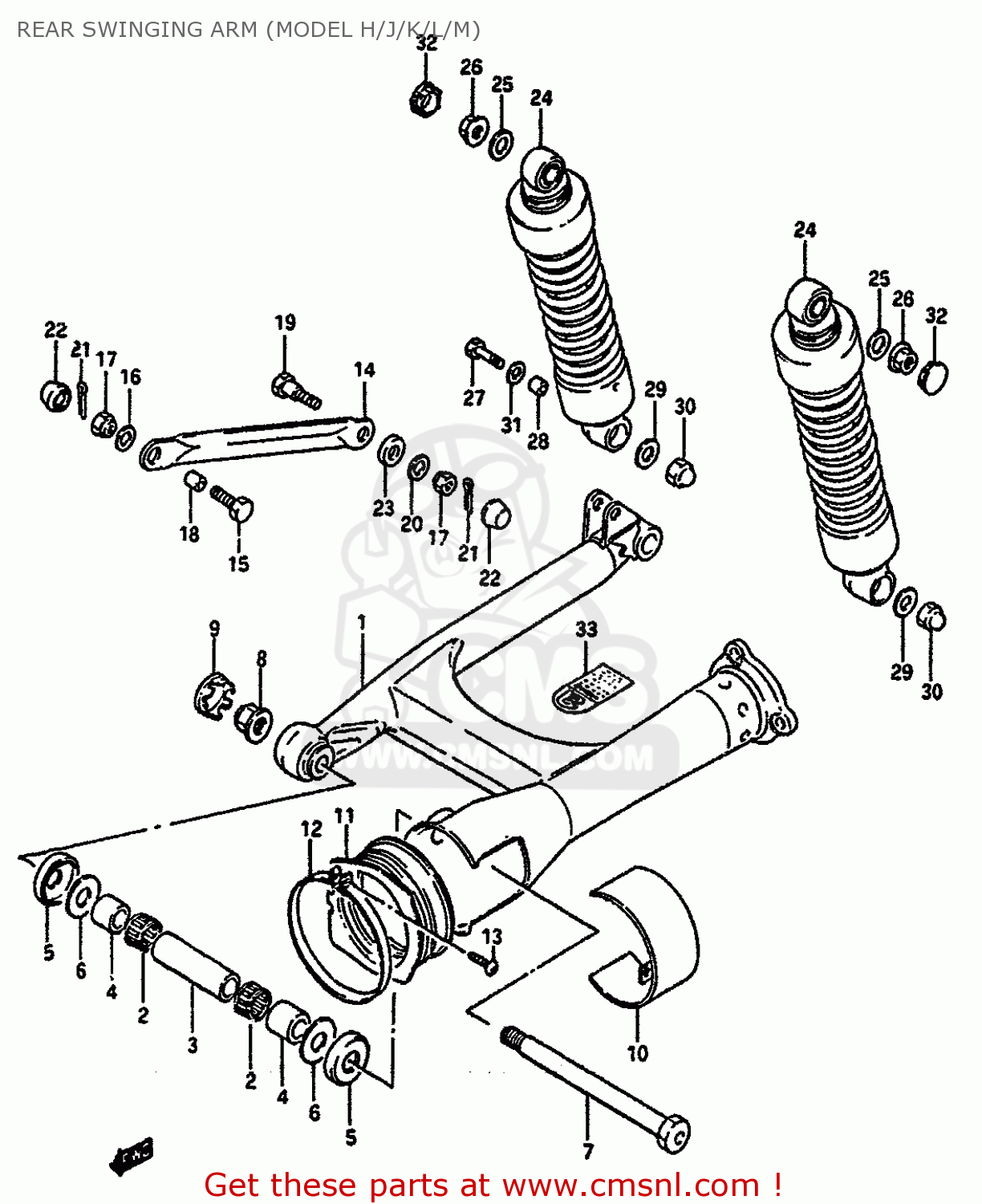

Rear swinging arm (model h/j/k/l/m) diagram VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)

REAR SWINGING ARM (MODEL H/J/K/L/M) VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
REAR SWINGING ARM (MODEL H/J/K/L/M) VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
REAR SWINGING ARM (MODEL H/J/K/L/M) VS750GLP 1991 (M) (E01 E02 E04 E17 E21 E22 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
6110038A20019
ref: 1-1
MODEL H
SWING ARM ASSEMBLY,REAR
€ 329.00
1-2
6110038A2033D
ref: 1-2
MODEL H
SWING ARM ASSEMBLY,REAR
€ 329.00
1-3
6110038A2024V
ref: 1-3
MODEL H
SWING ARM ASSEMBLY,REAR
6110038A2024V
€ 329.00
1-4
6110038A2020U
ref: 1-4
MODEL J/K/L
SWING ARM COMP,REAR
6110038A2020U
€ 390.50
1-5
6110038A2033J
ref: 1-5
MODEL J/K/L
SWING ARM COMP,REAR
€ 329.00
1-6
6110038A2014W
ref: 1-6
MODEL M
SWING ARM COMP,REAR
€ 446.50
1-7
6110038A2019A
ref: 1-7
MODEL M
SWING ARM COMP,REAR
€ 413.00
2
0926322022
ref: 2
BEARING(22X29X20)
0926322022
€ 27.00
3
6128238A00
ref: 3
SPACER,REAR SWING ARM PIVOT
6128238A00
€ 11.50
4
6125132400
ref: 4
SPACER,RR SWGARM PIVOT
6125132400
€ 12.50
5
6126245002
ref: 5
CVR,RR SWGARM DUST SEAL(OD:40)
6126245002
€ 4.50
6
0821114341
ref: 6
WASHER
0821114341
€ 3.00
7
6121138A00
ref: 7
SHAFT,RR SWINGINGARM PIVOT
6121138A00
€ 31.50
8
0831931148
ref: 8
NUT
0831931148
€ 9.00
9
6122238A01
ref: 9
CAP,RR SWINGING ARM PIVOT,R
6122238A01
€ 6.50
10-1
6123238A00019
ref: 10-1
MODEL H
COVER,REAR SWING ARM PIVOT
€ 25.50
10-2
6123238A0033D
ref: 10-2
MODEL H
COVER,REAR SWING ARM PIVOT
€ 25.50
10-3
6123238A0024V
ref: 10-3
MODEL H
COVER,REAR SWING ARM PIVOT
€ 25.50
10-4
6123238A0020U
ref: 10-4
MODEL J/K/L
COVER,REAR SWING ARM PIVOT,LEFT (
€ 25.50
10-5
6123238A0033J
ref: 10-5
MODEL J/K/L
COVER,RR SWGARM PIVOT,L
6123238A0033J
€ 30.50
10-6
6123238A0014W
ref: 10-6
MODEL M
COVER,REAR SWING ARM PIVOT
€ 25.50
10-7
6123238A0019A
ref: 10-7
MODEL M
COVER,RR SWGARM PIVOT,L(RED)
6123238A0019A
€ 28.00
11
6137238A00
ref: 11
BOOT,PROPELLER SHAFT
6137238A00
€ 16.50
12
0940292306
ref: 12
CLAMP
0940292306
€ 8.50
13
0321104255
ref: 13
SCREW 4X25
0321104255
€ 2.00
14
6431038A13019
ref: 14
L:294
TORQUELINK,RR
6431038A13019
€ 13.00
15
0910110037
ref: 15
BOLT(10X28)
0910110037
€ 4.00
16
0916010057
ref: 16
WASHER
0916010057
€ 2.00
17
0915910059
ref: 17
NUT
0915910059
€ 2.50
18
0918010114
ref: 18
SPACER
€ 4.50
19
0911110035
ref: 19
BOLT(10X41)
0911110035
€ 6.50
20
0916010085
ref: 20
WASHER (10X20X2.3)
0916010085
€ 2.00
21
0411116158
ref: 21
COTTER PIN
€ 2.00
22
0925113002
ref: 22
CAP
0925113002
€ 6.50
23
0932012039
ref: 23
CUSHION
€ 5.50
24
6210038A51
ref: 24
ABSORBER ASSEMBLY,REAR SHOCK
€ 367.00
25
0916010001
ref: 25
WASHER
0916010001
€ 2.00
26
0831616106
ref: 26
NUT
€ 2.00
27
0910010247
ref: 27
BOLT(10X39)
0910010247
€ 4.00
28
0918010104
ref: 28
SPACER (10.2X14X20.7)
€ 6.00
29
0916010095
ref: 29
WASHER
0916010095
€ 2.00
30
0831311107
ref: 30
NUT
0831311107
€ 2.50
31
0832211104
ref: 31
WASHER 10MM
0832211104
€ 2.50
32
9567224A00
ref: 32
CAP,FRAME HANDLE GRIP
9567224A00
€ 5.00
33
1196782000
ref: 33
E2,E75 (U.K,SOUTH AF
LABEL,ASBESTOS WARNING
€ 2.00
