AIR CLEANER (FRONT)

VS800GL INTRUDER 2002 (K2) USA (E03)

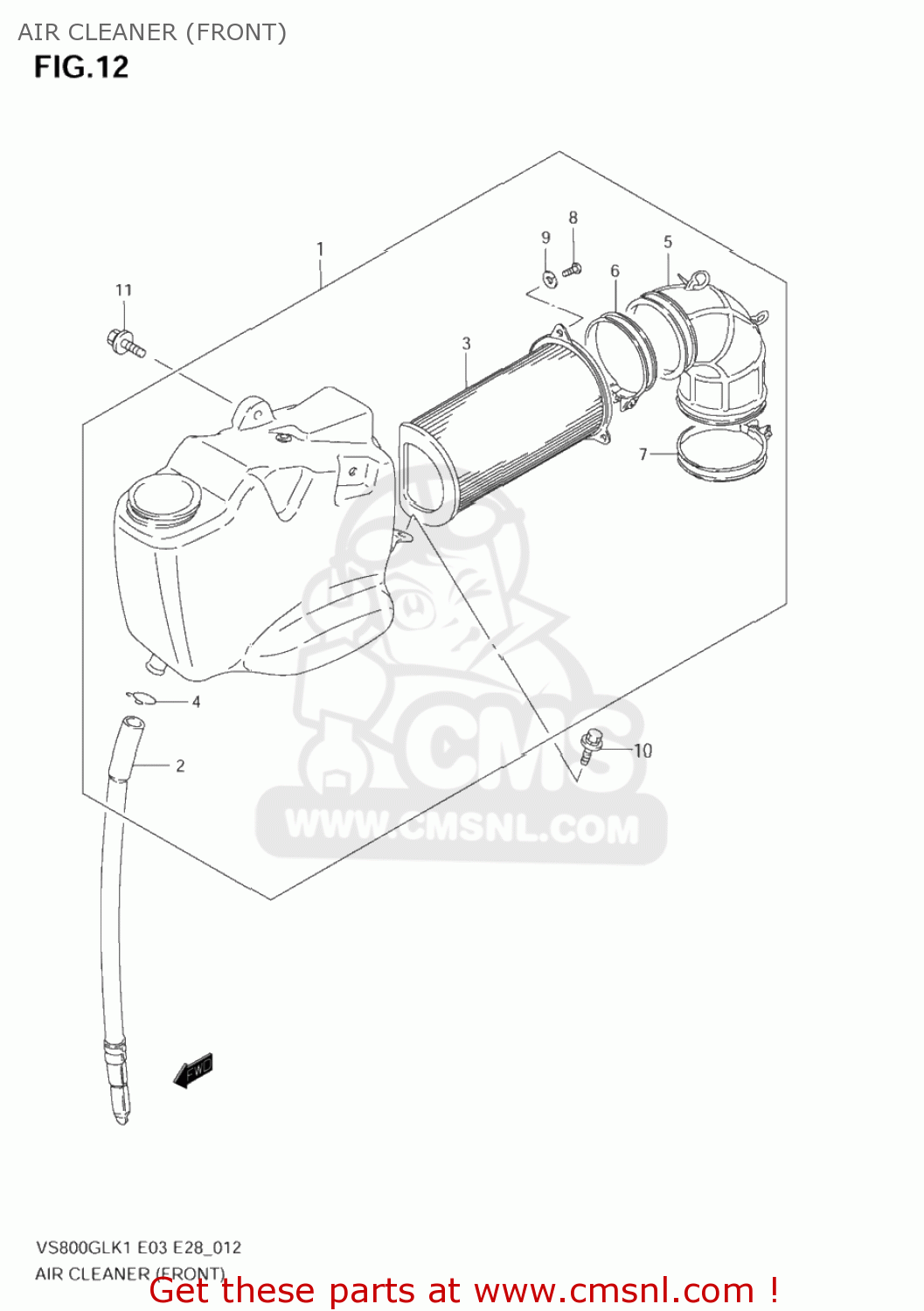

Air cleaner (front) diagram VS800GL INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1370038A01
ref: 1

CLEANER ASSY,AIR FR

€ 177.50

1387011458
ref: 2

TUBE,DRAIN

€ 13.50

1378038A01
ref: 3

FILTER ASSY

€ 25.00

0940113409
ref: 4

CLIP

€ 2.50

1388138A00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 28.00

0940256208
ref: 6
09402-56901

CLAMP

€ 3.50

0940258208
ref: 7

CLAMP

€ 5.50

0211204083
ref: 8
02112-0408A

SCREW

€ 2.00

0832101043
ref: 9
08321-0104A

WASHER,LOCK

€ 2.00

0158006163
ref: 10
01580-0616A

BOLT

€ 2.50

0158006163
ref: 11
01580-0616A

BOLT

€ 2.50
