REAR COMBINATION LAMP (MODEL K5)

VS800GL INTRUDER 2002 (K2) USA (E03)

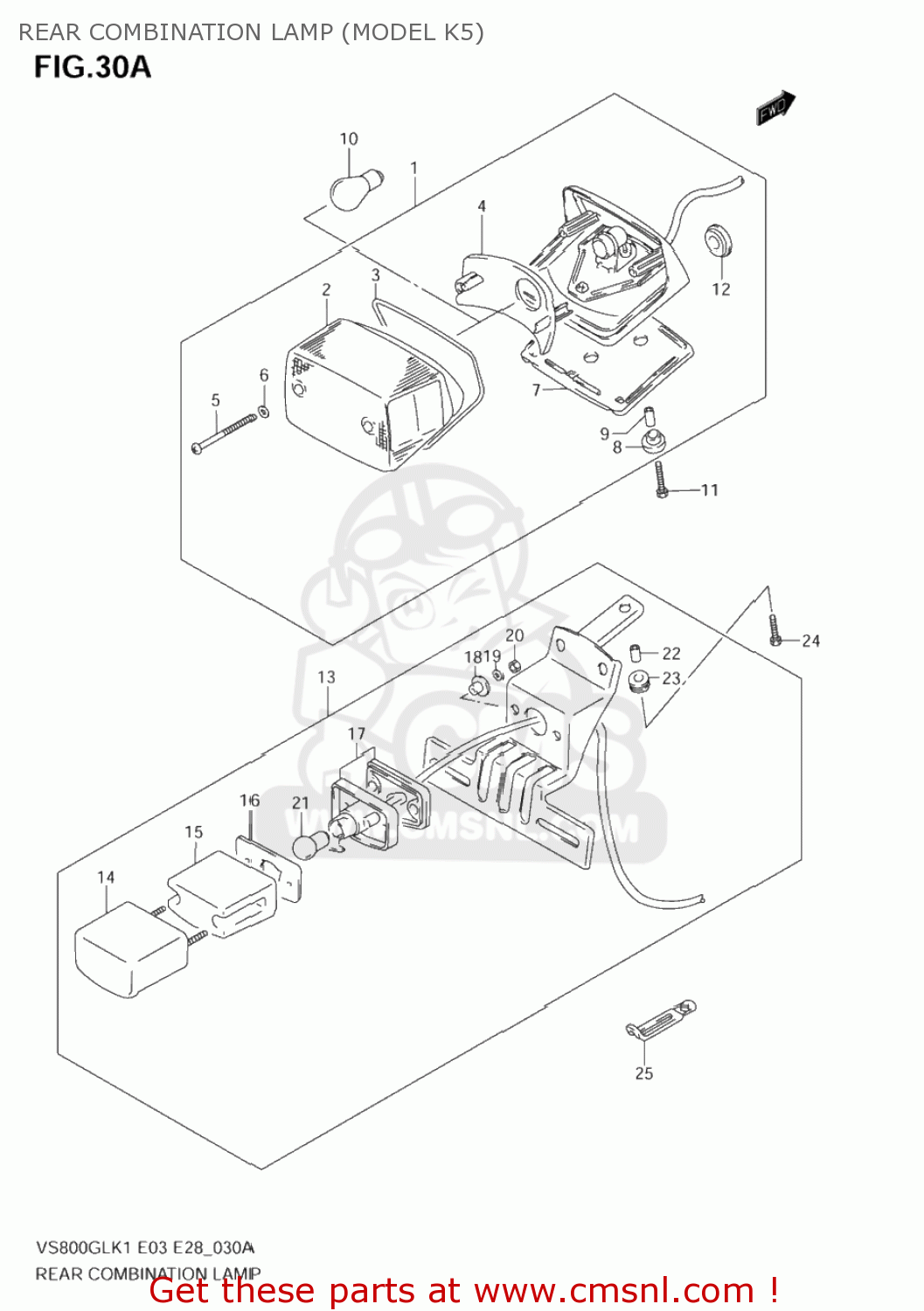

Rear combination lamp (model k5) diagram VS800GL INTRUDER 2002 (K2) USA (E03)

REAR COMBINATION LAMP (MODEL K5) VS800GL INTRUDER 2002 (K2) USA (E03)

REAR COMBINATION LAMP (MODEL K5) VS800GL INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571039A00999
ref: 1

LAMP ASSY,RR COMBINATION

€ 271.50

2

3571238A30
ref: 2

LENS

€ 54.50

3

3571331D00
ref: 3

GASKET (NAS)

€ 9.50

4

3571438A00
ref: 4

REFLECTOR

€ 16.50

5

3572344130
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3576538A00
ref: 7

CUSHION

€ 13.50

8

3576426470
ref: 8

CUSHION

€ 2.50

9

3576637190
ref: 9

SPACER

€ 2.00

10

0947112083
ref: 10
09471-12128

BULB(12V21/5W)

€ 6.00

11

0911606093
ref: 11

BOLT(6X25)

€ 2.00

12

0930814006
ref: 12

GROMMET

€ 3.50

13

3591038A40
ref: 13

LAMP ASSY,LICENSE

€ 0.00

14

3591738A20
ref: 14

COVER,LICENSE LAMP

€ 121.50

15

3591238A30
ref: 15

LENS

€ 11.50

16

3591338A30
ref: 16

GASKET,LICENSE LAMP (NAS)

€ 2.00

17

3591538A31
ref: 17

HOUSING,LICENSE LAMP

€ 39.50

18

3576617C00
ref: 18

SPACER

€ 3.00

19

0832101043
ref: 19
08321-0104A

WASHER,LOCK

€ 2.00

20

0831000047
ref: 20

NUT

€ 2.00

21

0947112141
ref: 21

BULB(12V8W)

€ 7.00

22

3576638A00
ref: 22

SPACER

€ 3.00

23

3576538A30
ref: 23

CUSHION

€ 4.00

24

0911606010
ref: 24

BOLT(6X20)

€ 2.00

25

0940406429
ref: 25

CLAMP(L:45)

€ 2.50
