FUEL TANK (MODEL K1)

VS800GL INTRUDER 2002 (K2) USA (E03)

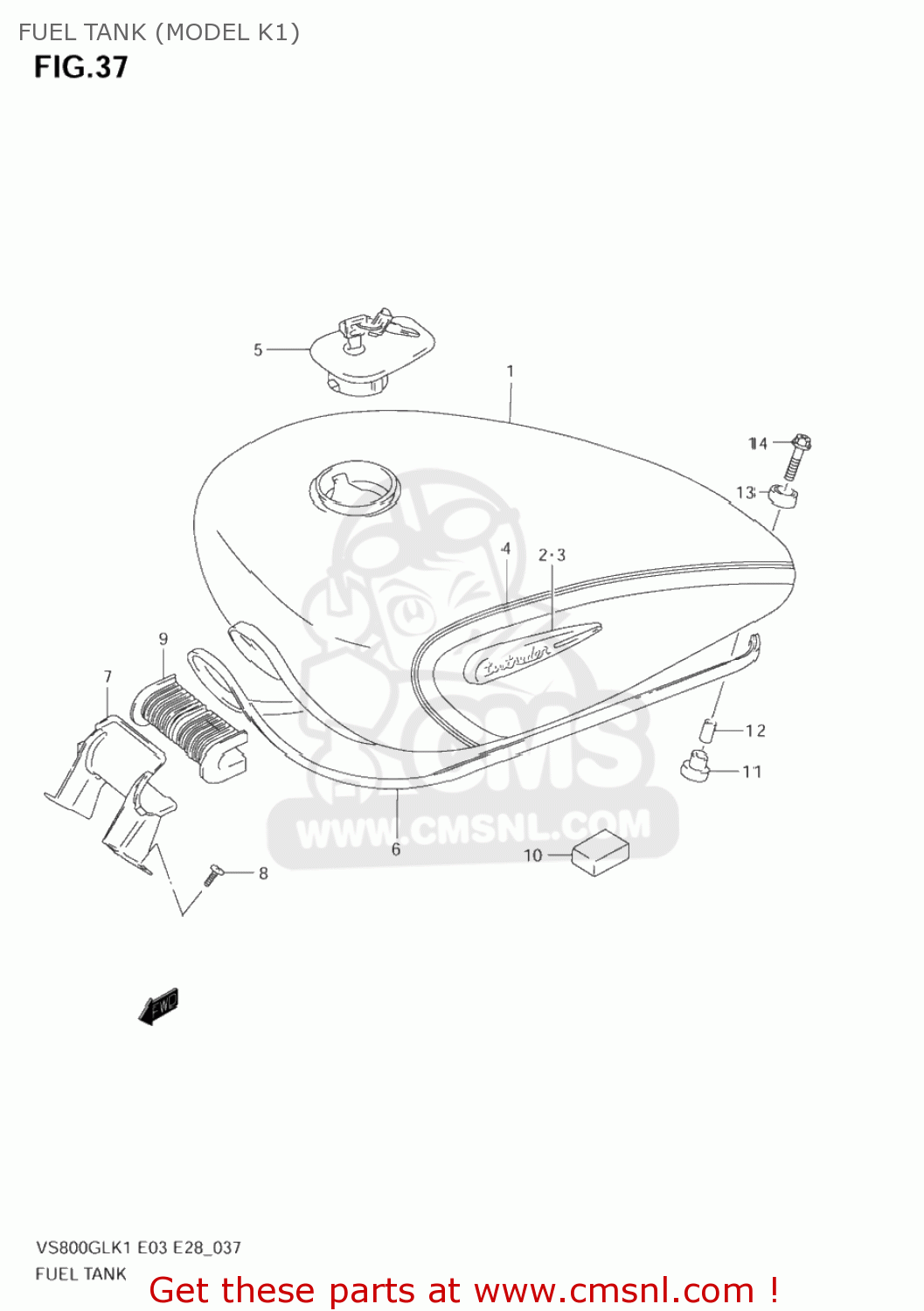

Fuel tank (model k1) diagram VS800GL INTRUDER 2002 (K2) USA (E03)

FUEL TANK (MODEL K1) VS800GL INTRUDER 2002 (K2) USA (E03)

FUEL TANK (MODEL K1) VS800GL INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410038EC033J
ref: 1-1
44100-38EF0-33J

TANK ASSY, FUEL

€ 358.50

1-2

4410038EC0YC6
ref: 1-2
44100-38EF0-YC6

TANK ASSY,FUEL(RED)

€ 358.50

1-3

4410038EE033J
ref: 1-3
44100-38EG0-33J

TANK ASSY,FUEL(BLACK)

€ 352.00

1-4

4410038EE0YC6
ref: 1-4
44100-38EG0-YC6

TANK ASSY,FUEL(RED)

€ 352.00

2

6811138E00
ref: 2

EMBLEM,FUEL TANK,R

€ 34.00

3

6812138E00
ref: 3

EMBLEM,FUEL TANK,L

€ 33.50

4-1

6811038E30ET5
ref: 4-1
68110-38E40-ET5

TAPE SET,FUEL TANK

€ 56.00

4-2

6811038E30ET6
ref: 4-2
68110-38E40-ET6

TAPE SET,FUEL TANK

€ 55.50

5-1

4420038820
ref: 5-1

CAP SET,FUEL TANK

€ 107.50

5-2

4420038850
ref: 5-2

CAP SET,FUEL TANK

€ 135.50

5-3

4420038860
ref: 5-3

CAP SET,FUEL TANK

€ 135.50

5-4

4420038870
ref: 5-4

ENGRAVED GAS CAP SET,G

€ 136.50

6

6824104X5000B
ref: 6

MOLDING

€ 23.00

7

4425038A01019
ref: 7

BRACKET,FUEL TANK FR

€ 56.00

8

0211276163
ref: 8
02112-7616A

SCREW

€ 2.00

9

4451138A01
ref: 9

CUSHION,FUEL TANK FR

€ 10.50

10

4451238B00
ref: 10
56314-48B10

CUSHION

€ 6.00

11

0932010020
ref: 11

CUSHION

€ 4.00

12

0918006273
ref: 12

SPACER(6.5X9X21.5)

€ 5.50

13

0932014013
ref: 13

CUSHION

€ 3.00

14

0913606095
ref: 14

SCREW(6X35)

€ 0.00
