TOOL HOLDER (MODEL K5)

VS800GL INTRUDER 2002 (K2) USA (E03)

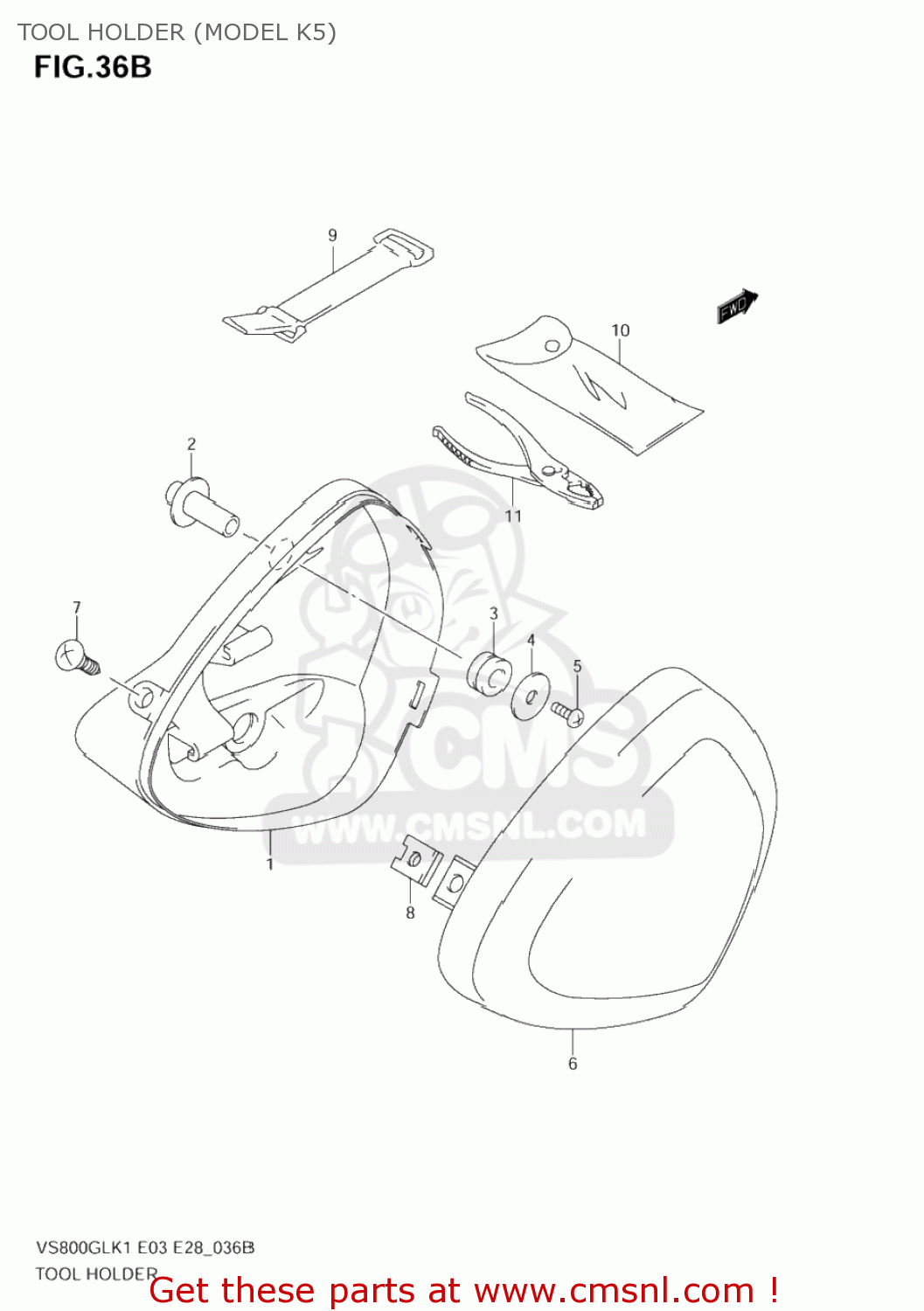

Tool holder (model k5) diagram VS800GL INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

4743139A00
ref: 1
47431-39A10

BOX, LUGGAGE V

€ 40.00

4744039A10
ref: 2
47440-39A11

SPACER

€ 7.00

0932010052
ref: 3

CUSHION

€ 4.50

0916006503
ref: 4
09160-06054

WASHER (6.5X22X1.6)

€ 2.00

0214206353
ref: 5
02142-0635A

SCREW

€ 2.00

4743239A00
ref: 6

CAP,TOOL HOLDER

€ 54.50

0913906044
ref: 7

SCREW(6X23)

€ 7.00

0914806018
ref: 8

NUT

€ 2.50

0946200008
ref: 9

BAND

€ 4.50

0980021013
ref: 10

TOOL ASSY

€ 23.50

0981200009
ref: 11

PLIER(150)

€ 9.00
