TURN SIGNAL LAMP (MODEL K4/K5)

VS800GL INTRUDER 2002 (K2) USA (E03)

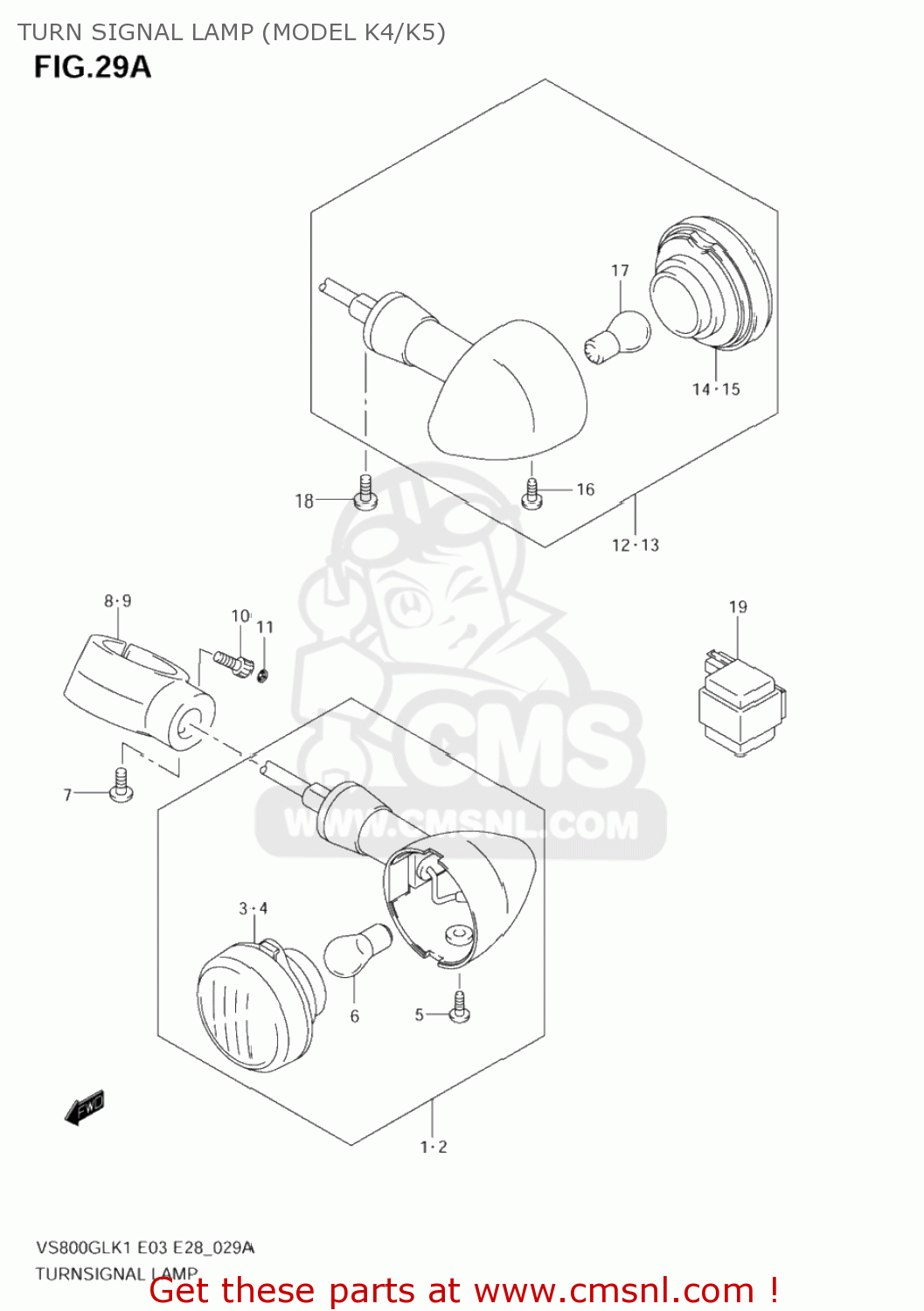

Turn signal lamp (model k4/k5) diagram VS800GL INTRUDER 2002 (K2) USA (E03)

TURN SIGNAL LAMP (MODEL K4/K5) VS800GL INTRUDER 2002 (K2) USA (E03)

TURN SIGNAL LAMP (MODEL K4/K5) VS800GL INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3560138AC0
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 50.00

2

3560238AC0
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 63.50

3

3561038AA0
ref: 3

LENS

€ 19.50

4

3563038AA0
ref: 4

LENS

€ 19.50

5

3562338AA0
ref: 5

SCREW(4X10)

€ 4.00

6

0947112083
ref: 6
09471-12128

BULB(12V21/5W)

€ 6.00

7

0214206107
ref: 7

SCREW

€ 2.00

8

3567139A00
ref: 8

BRACKET,FR TURNSIGNAL LAMP,R

€ 51.50

9

3568139A00
ref: 9

BRACKET,FR TURNSIGNAL LAMP,L

€ 51.50

10

0713006167
ref: 10

BOLT

€ 3.00

11

0925005008
ref: 11

CAP(OD:10)

€ 5.00

12

3560338AA0
ref: 12

LAMP ASSY,RR TURNSIGNAL,R

€ 83.50

13

3560438AA0
ref: 13

LAMP ASSY,RR TURNSIGNAL,L

€ 75.50

14

3563038AE0
ref: 14
35630-38AE1

LENS

€ 19.50

15

3561038AE0
ref: 15
35610-38AE1

LENS

€ 19.50

16

3562338AA0
ref: 16

SCREW(4X10)

€ 4.00

17

0947112045
ref: 17

BULB(12V21W)

€ 5.00

18

0214206107
ref: 18

SCREW

€ 2.00

19

3861026E00
ref: 19

RELAY ASSY

€ 47.00
