FRAME HANDLE GRIP (MODEL K1/K2/K3/K4)

VS800GL INTRUDER 2002 (K2) USA (E03)

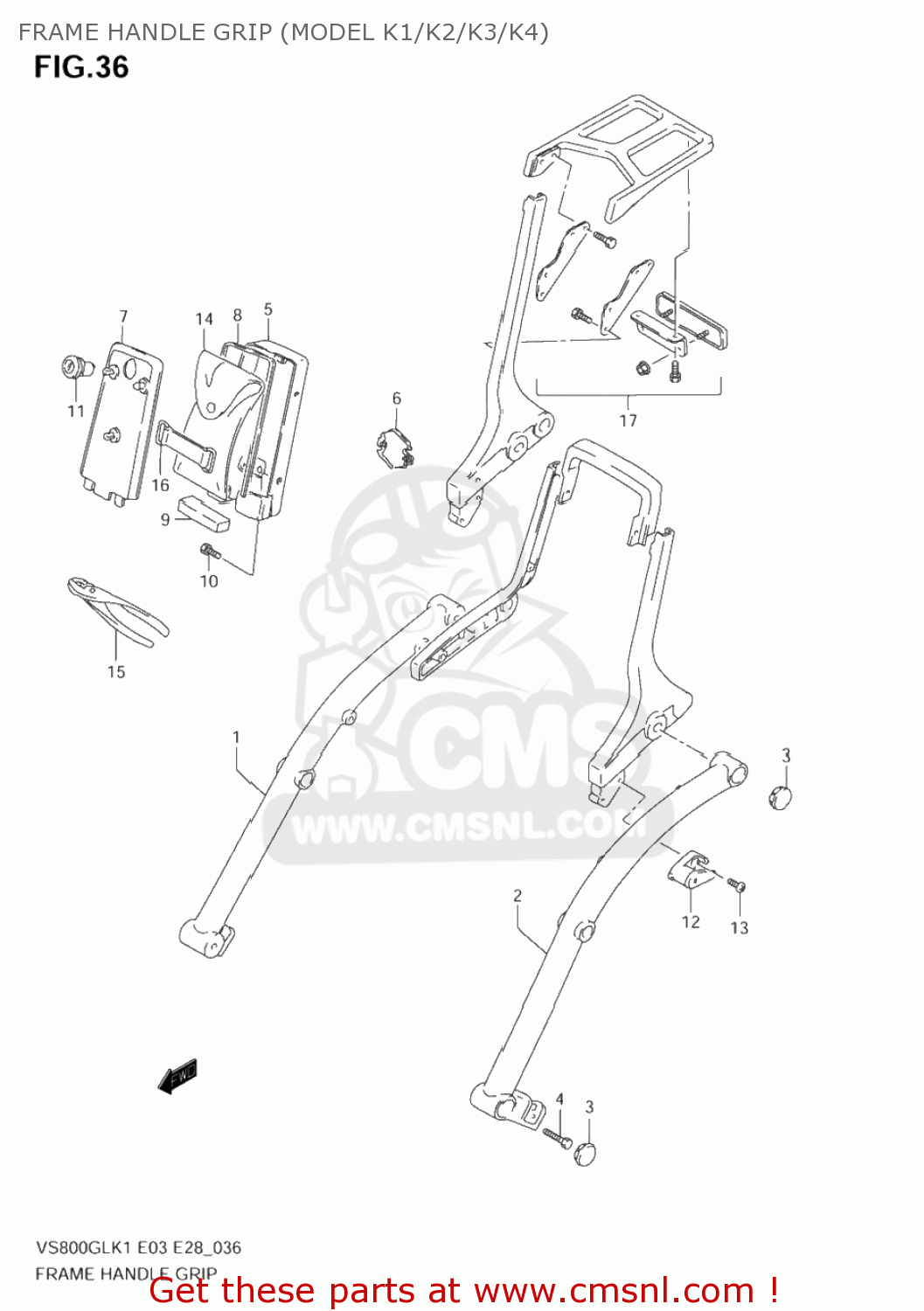

Frame handle grip (model k1/k2/k3/k4) diagram VS800GL INTRUDER 2002 (K2) USA (E03)

FRAME HANDLE GRIP (MODEL K1/K2/K3/K4) VS800GL INTRUDER 2002 (K2) USA (E03)

FRAME HANDLE GRIP (MODEL K1/K2/K3/K4) VS800GL INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4161038A30
ref: 1
41610-38A20

GRIP,FRAME HANDLE,RIGHT

€ 243.50

2

4162038A30
ref: 2
41620-38A20

GRIP,FRAME HANDLE,LEFT

€ 308.00

3

9567224A00
ref: 3

CAP,FRAME HANDLE GRIP

€ 5.00

4

0158008203
ref: 4
01580-0820A

BOLT

€ 3.50

5-1

4743038B0222S
ref: 5-1
47430-38B11-22S

HOLDER,TOOL,REAR

€ 60.50

5-2

4743038B1122S
ref: 5-2

HOLDER,TOOL RR

€ 60.50

6

6826138A30
ref: 6

EMBLEM,TOOL HOLDER RR

€ 31.00

7

4744138B00
ref: 7

HOLDER,TOOL FR

€ 15.00

8

4743738B00
ref: 8

MOLDING,TOOL HOLDER RR

€ 5.00

9

4743838B00
ref: 9

CUSHION,TOOL BACK

€ 19.50

10

0155006123
ref: 10
01550-0612A

BOLT

€ 2.50

11

9570024831
ref: 11

LOCK SET,TOOL HOLDER

€ 79.50

12

9570038821
ref: 12

LOCK SET,HELMET

€ 54.00

13

0211205127
ref: 13

SCREW

€ 2.50

14

0980021013
ref: 14

TOOL ASSY

€ 23.50

15

0981200009
ref: 15

PLIER(150)

€ 9.00

16

0946200008
ref: 16

BAND

€ 4.50

17

4630038822
ref: 17

CARRIER SET,SPORT

€ 240.50
