FRONT FENDER

VS800GL INTRUDER 2002 (K2) USA (E03)

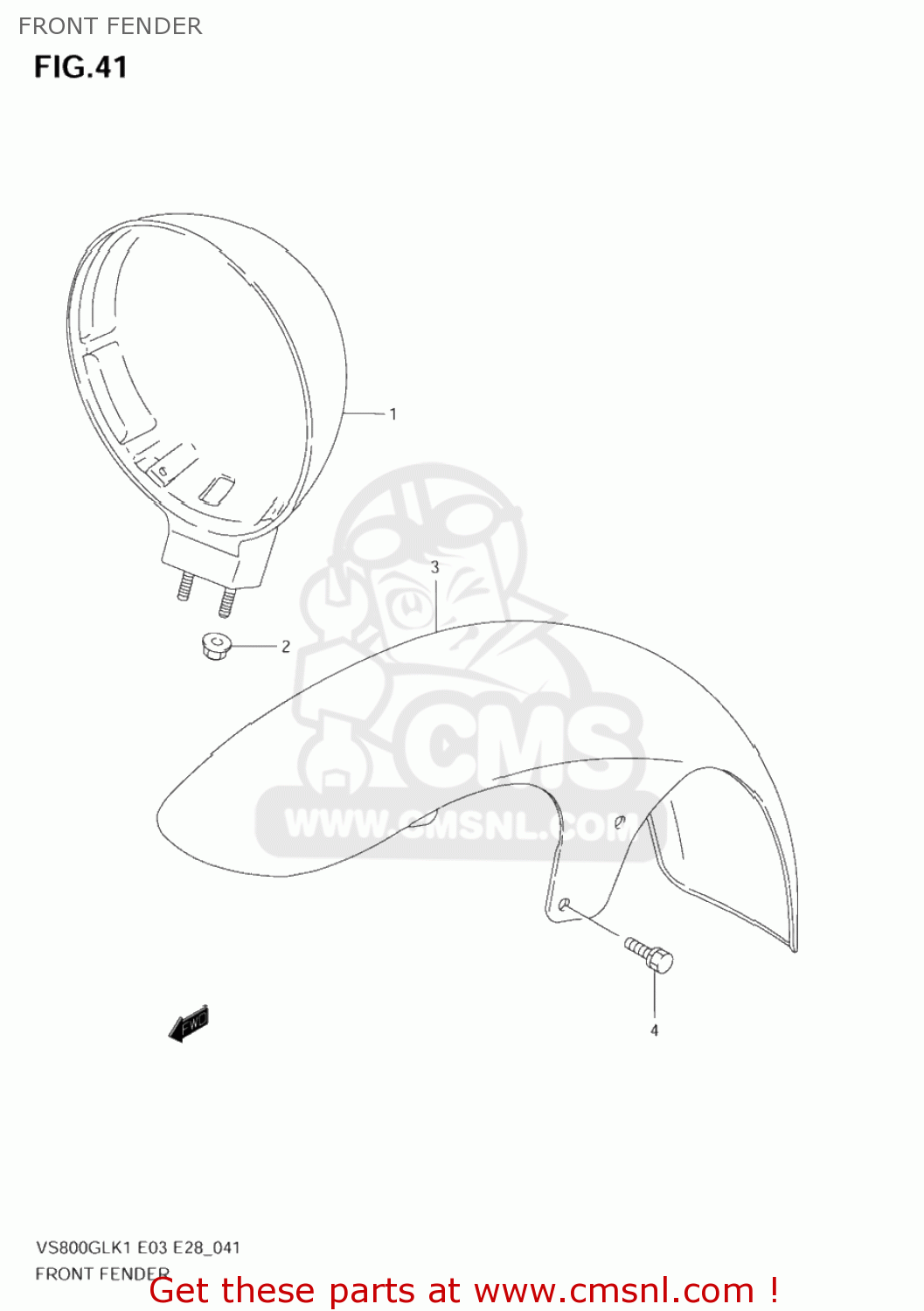

Front fender diagram VS800GL INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

5181038A03
ref: 1

HOUSING,HEADLAMP

€ 111.00

0831931063
ref: 2
08319-3106A

NUT

€ 2.50

3-1

5311038A1033J
ref: 3-1

FENDER,FR

€ 430.00

3-2

5311038A10YC6
ref: 3-2

FENDER, FRONT (RED)

€ 0.00

3-3

5311038A1019A
ref: 3-3

FENDER,FR

€ 325.50

3-4

5311038A10YD8
ref: 3-4

FENDER,FR

€ 0.00

3-5

5311038A00YD8
ref: 3-5
53110-38A10-YD8

FENDER,FR

€ 0.00

3-6

5311038A00YAY
ref: 3-6
53110-38A10-YAY

FENDER,FR

€ 430.00

3-7

5311038A10YAY
ref: 3-7

FENDER,FR

€ 430.00

3-8

5311038A10YU8
ref: 3-8

FENDER,FR

€ 0.00

0157006163
ref: 4
01570-0616A

BOLT

€ 2.50
