AIR CLEANER (MODEL K9)

VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

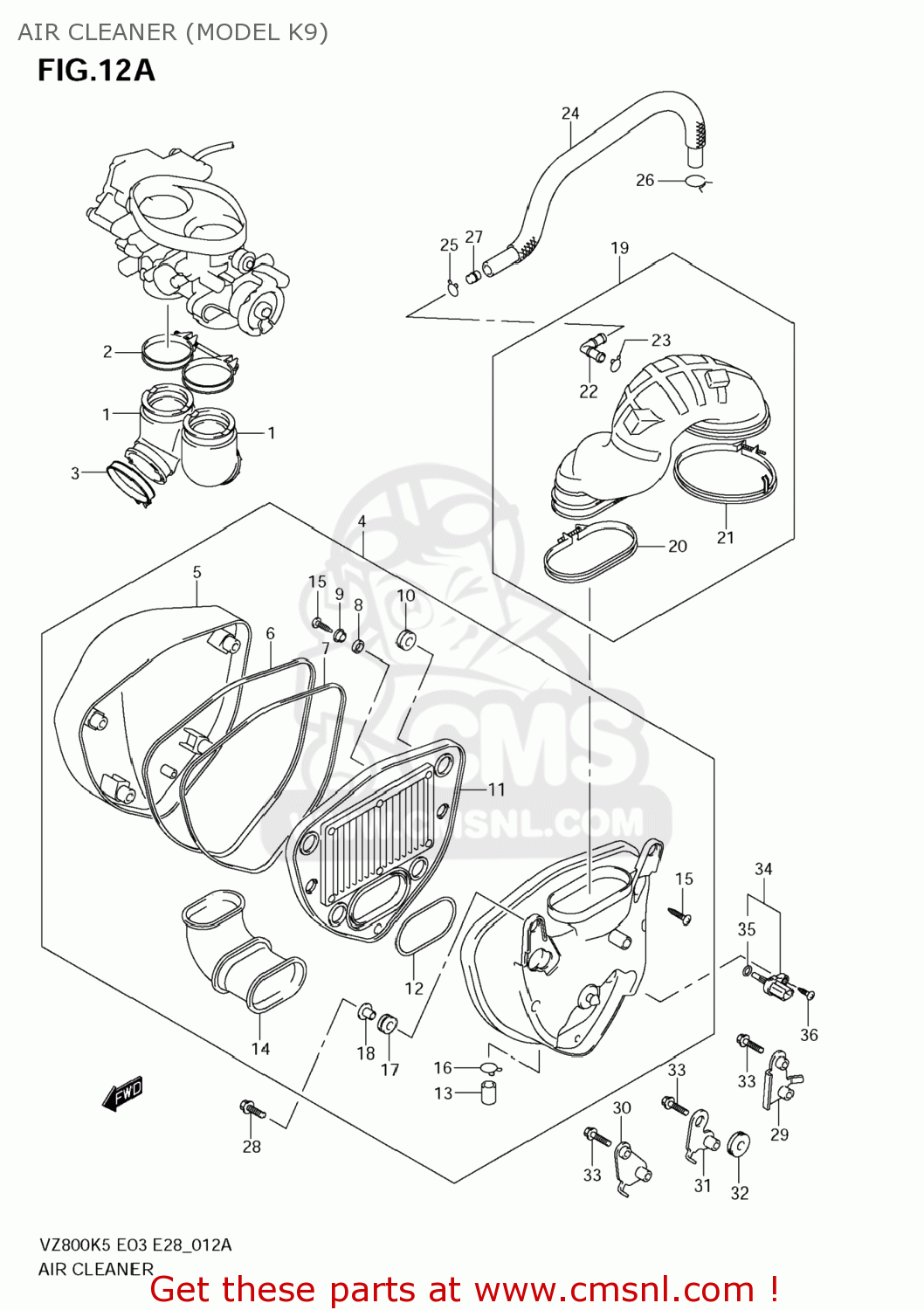

Air cleaner (model k9) diagram VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

AIR CLEANER (MODEL K9) VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
AIR CLEANER (MODEL K9) VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
AIR CLEANER (MODEL K9) VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1311141F10
ref: 1
13111-41F11
PIPE,INTAKE
€ 31.00
2
1317039G00
ref: 2
CLAMP,INTAKE PIPE
€ 19.00
3
1317015G00
ref: 3
CLAMP,INTAKE PIPE
€ 4.00
4
1370139G20
ref: 4
CASE ASSY,AIR CLEANER
1370139G20
€ 329.00
5
1374139G20
ref: 5
CAP,AIR CLEANER
1374139G20
€ 156.50
6
1372739G20
ref: 6
GASKET (NAS)
1372739G20
€ 11.50
7
1372639G20
ref: 7
GASKET (NAS)
1372639G20
€ 11.50
8
1374739G20
ref: 8
CUSHION
€ 2.50
9
0916906082
ref: 9
WASHER
€ 2.50
10
1374741F00
ref: 10
CUSHION
1374741F00
€ 2.50
11
1378039G20
ref: 11
FILTER,AIR CLEANER
1378039G20
€ 36.50
12
1374639G20
ref: 12
GASKET,FILTER (NAS)
1374639G20
€ 8.00
13
1385447D50
ref: 13
PLUG
€ 5.50
14
1389139G20
ref: 14
TUBE,INLET
€ 20.00
15
035410525B
ref: 15
SCREW
035410525B
€ 2.50
16
0940114301
ref: 16
CLIP
0940114301
€ 2.00
17
0932009016
ref: 17
CUSHION
0932009016
€ 2.50
18
1381229C50
ref: 18
COLLAR,CLEANER CASE
1381229C50
€ 1.50
19
1388039G20
ref: 19
13880-39G21
TUBE ASSY,OUTL
1388039G20
€ 130.50
20
1382641F20
ref: 20
CLAMP
€ 14.50
21
1382639G20
ref: 21
CLAMP
€ 22.00
22
1385814D10
ref: 22
13858-14D20
JOINT
€ 6.00
23
0940115101
ref: 23
CLIP
0940115101
€ 2.00
24
1385339G20
ref: 24
TUBE,BREATHER
1385339G20
€ 18.00
25
0940115101
ref: 25
CLIP
0940115101
€ 2.00
26
0940116301
ref: 26
CLAMP
€ 2.50
27
1385914D40
ref: 27
JET,BREATHER
1385914D40
€ 3.00
28
0913906063
ref: 28
SCREW(6X20)
0913906063
€ 4.00
29
1376139G20
ref: 29
BRACKET,AIR CLEANER NO.1
1376139G20
€ 12.00
30
1376239G20
ref: 30
BRACKET,AIR CLEANER NO.2
€ 12.00
31
1376339G20
ref: 31
BRACKET,AIR CLEANER NO.3
1376339G20
€ 11.50
32
0932008028
ref: 32
CUSHION
0932008028
€ 2.50
33
015470625A
ref: 33
BOLT
015470625A
€ 2.50
34
1365041F10
ref: 34
SENSOR,AIR TEMP
1365041F10
€ 41.50
35
1365541F10
ref: 35
O RING
1365541F10
€ 7.00
36
035110516B
ref: 36
SCREW
035110516B
€ 2.50
