REAR COMBINATION LAMP

VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

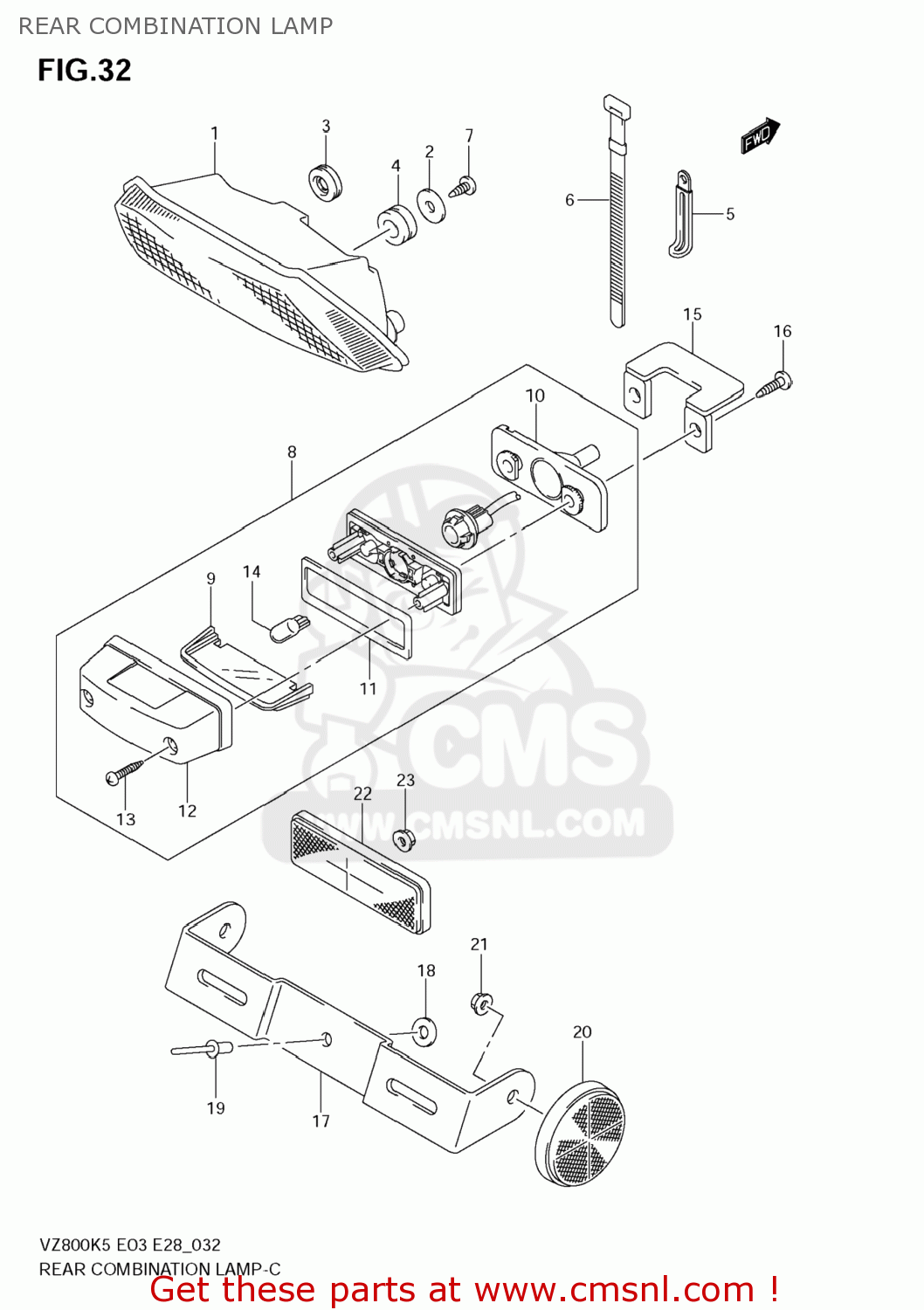

Rear combination lamp diagram VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

REAR COMBINATION LAMP VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

REAR COMBINATION LAMP VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3571039G30
ref: 1

LAMP ASSY,RR COMBINATION

€ 0.00

2

0916005501
ref: 2

WASHER(5.5X20X1.2)

€ 2.00

3

0930810017
ref: 3

GROMMET

€ 3.50

4

0932010049
ref: 4

CUSHION

€ 2.00

5

0940406429
ref: 5

CLAMP(L:45)

€ 2.50

6

0940714403
ref: 6

CLAMP(L:125)

€ 2.50

7

035410512B
ref: 7

SCREW

€ 2.00

8

3591016G50
ref: 8

LAMP ASSY,LICENSE

€ 0.00

9

3591216G00
ref: 9

LENS

€ 7.50

10

3591616G10
ref: 10

CUSHION

€ 0.00

11

3591316G00
ref: 11

GASKET (NAS)

€ 5.50

12

3591716G00
ref: 12

COVER

€ 7.00

13

032110416A
ref: 13

SCREW

€ 1.50

14

0947112216
ref: 14

BULB(12V5W)

€ 5.00

15

3592616G00
ref: 15

BRACKET,LICENSE

€ 7.00

16

035410520B
ref: 16

SCREW

€ 2.50

17

3592739G30
ref: 17

BRACKET,LICENSE PLATE

€ 10.00

18

0916005045
ref: 18

WASHER(5.5X18X1)

€ 2.00

19

0922904050
ref: 19

RIVET

€ 2.00

20

3597014A20
ref: 20

REFLECTOR ASSY,RR SIDE

€ 11.00

21

083161005B
ref: 21

NUT

€ 2.50

22

3597007F01
ref: 22

REFLECTOR ASSY,RR

€ 20.50

23

083161005B
ref: 23

NUT

€ 2.50
