HANDLE LEVER (MODEL K5/K6)

VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

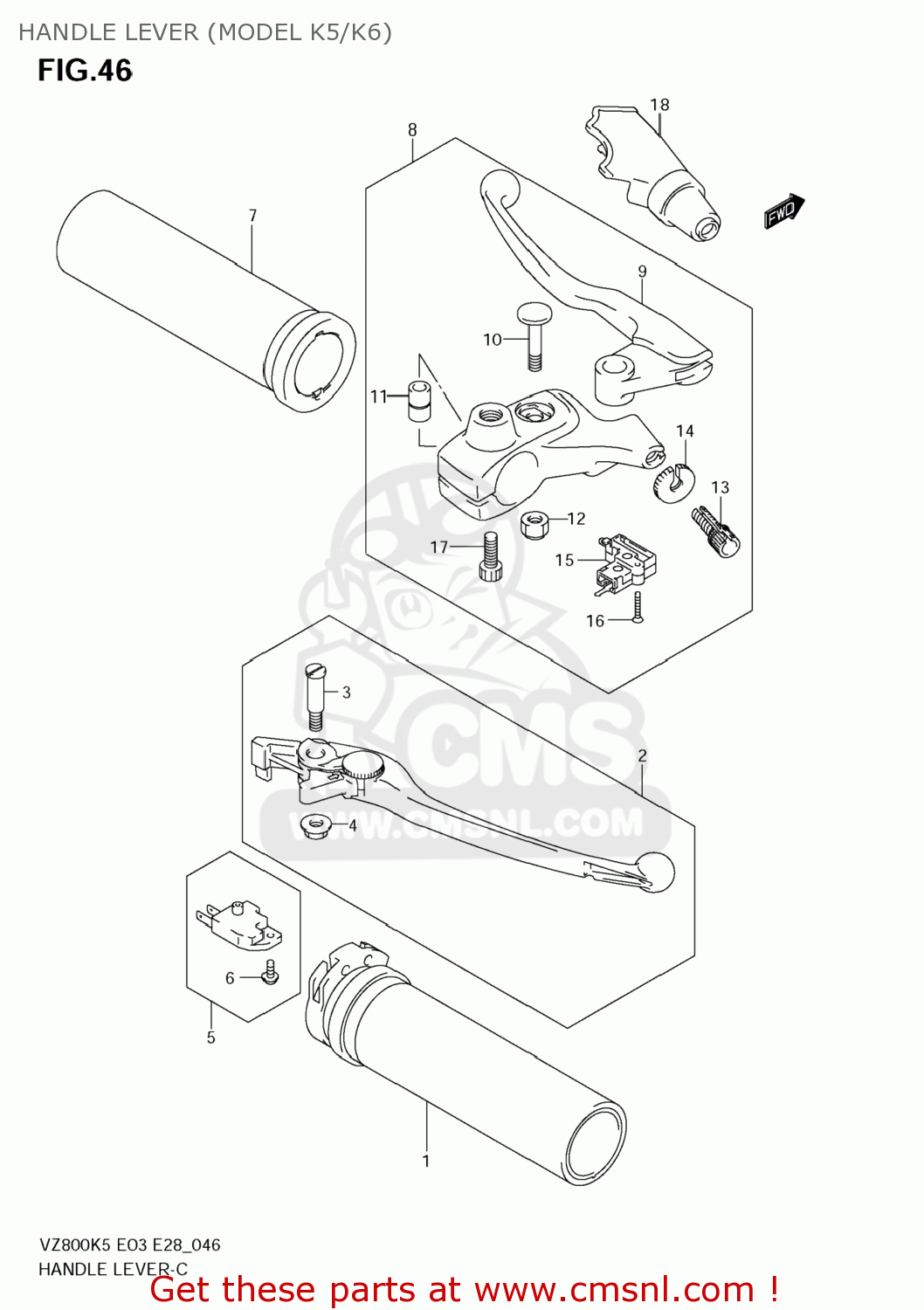

Handle lever (model k5/k6) diagram VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

HANDLE LEVER (MODEL K5/K6) VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

HANDLE LEVER (MODEL K5/K6) VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

5711026D00
ref: 1

GRIP,THROTTLE

€ 45.00

2

5730041F10
ref: 2

LEVER ASSY,BRAKE

€ 81.50

3

5743148E00
ref: 3

BOLT,LEVER PIVOT

€ 8.00

4

0831610063
ref: 4
08316-1006B

NUT

€ 2.50

5

5746017C11
ref: 5
57460-14J01

SWITCH ASSY,ST

€ 32.50

6

5746517C00
ref: 6

SCREW

€ 1.50

7

5721026D00
ref: 7

GRIP,L

€ 21.50

8

5750024B01
ref: 8

LEVER ASSY,CLUTCH

€ 87.00

9

5762024B01
ref: 9

LEVER,CLUTCH

€ 75.50

10

5753124B00
ref: 10

BOLT,CLUTCH LEVER

€ 6.50

11

5762324B00
ref: 11

SPACER,CLUTCH LEVER PIVOT

€ 6.50

12

0831921068
ref: 12
08319-2106A

NUT 6MM

€ 2.00

13

5744145C00
ref: 13

ADJUSTER,WIRE

€ 8.50

14

5744245C00
ref: 14

NUT,LOCK

€ 7.50

15

5756005A00
ref: 15

SWITCH,CLUTCH

€ 11.00

16

0211203205
ref: 16
02112-0320B

SCREW

€ 5.00

17

0713006207
ref: 17

BOLT

€ 3.50

18

5754139G00
ref: 18

COVER,CLUTCH LEVER

€ 25.50
