ELECTRICAL (MODEL K9 E3

VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

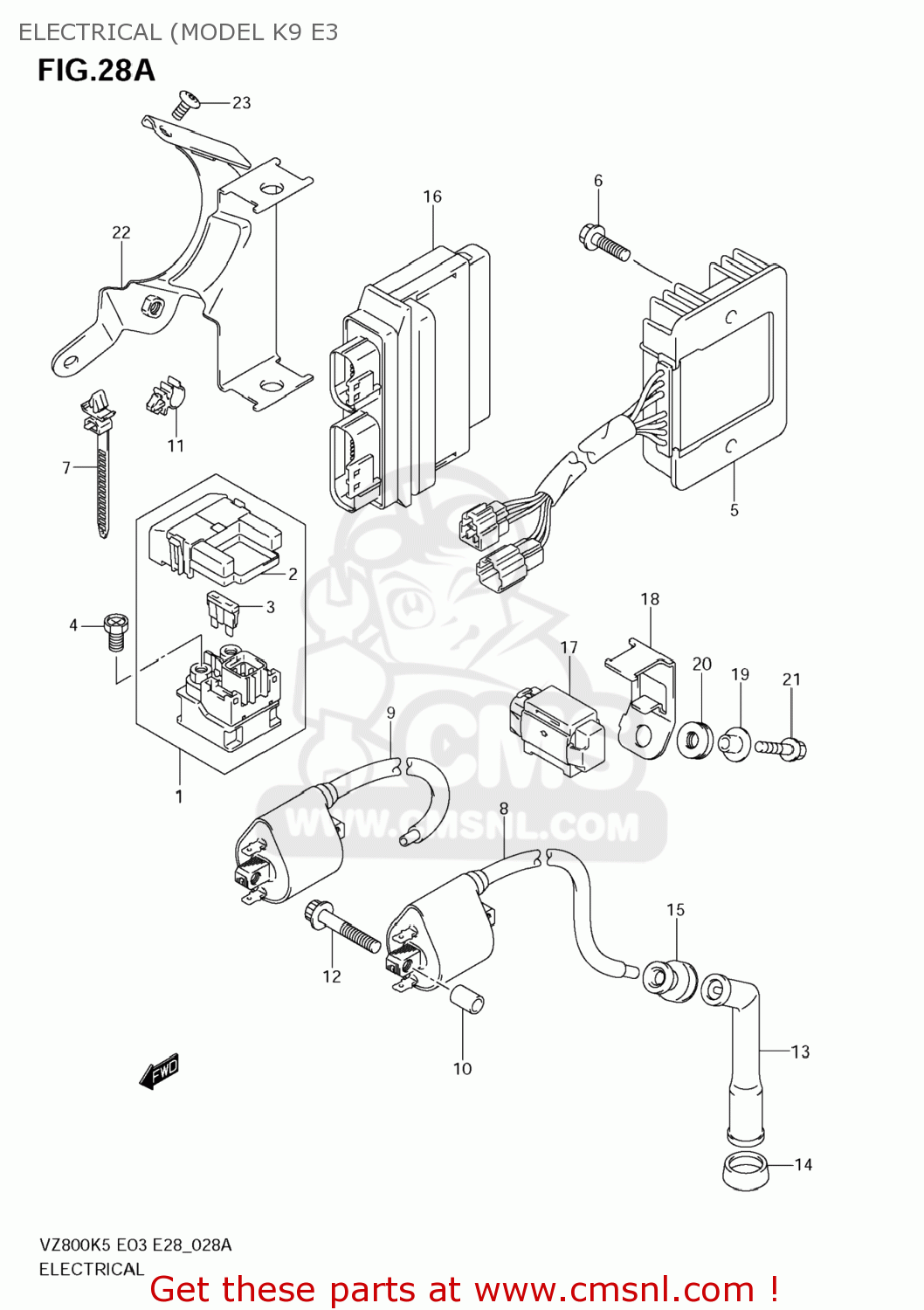

Electrical (model k9 e3 diagram VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

ELECTRICAL (MODEL K9 E3 VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

ELECTRICAL (MODEL K9 E3 VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

2

3186147E00
ref: 2

COVER

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280041F11
ref: 5

RECTIFIER ASSY

€ 268.50

6

021620620B
ref: 6

SCREW

€ 2.00

7

0940711402
ref: 7

CLAMP(L:90)

€ 2.50

8

3341017G00
ref: 8

COIL ASSY,IGNITION

€ 86.50

9

3342041F10
ref: 9

COIL ASSY,IGNITION

€ 74.00

10

0918006195
ref: 10

SPACER(6.4X10X18)

€ 3.50

11

0940307308
ref: 11

CLAMP

€ 1.50

12

0910605033
ref: 12

BOLT(5X35)

€ 2.50

13

3351011410
ref: 13

CAP,SPARK PLUG

€ 24.50

14

3354147D00
ref: 14

SEAL,SPARK PLUG

€ 7.00

15

3354238B00
ref: 15

SEAL,HIGH TENSION CORD

€ 4.50

16

3292039GB0
ref: 16

CONTROL UNIT,FI

€ 868.00

17

3396006G10
ref: 17

SENSOR ASSY,FUEL CUT

€ 75.00

18

3396141F00
ref: 18

BRACKET,FUEL CUT SENSOR

€ 4.00

19

0918006325
ref: 19

SPACER(6.2X8.4X6.9)

€ 3.00

20

0932006017
ref: 20

CUSHION

€ 3.00

21

015470616A
ref: 21

BOLT

€ 2.00

22

4488043H00
ref: 22

BRACKET,FI CONTROL UNIT

€ 18.00

23

0913906108
ref: 23

SCREW(6X12)

€ 3.00
